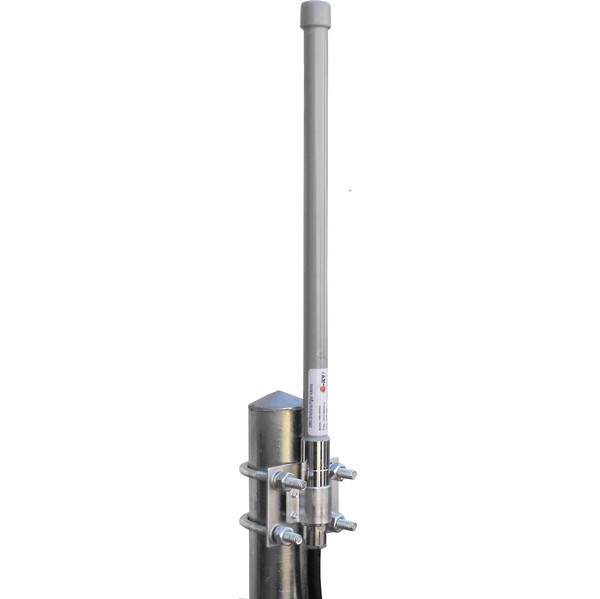

The new e-zy.net OM58V10PNM OMNI Directional Antenna is made from sealed UV Stabilized Fiberglass with steel base and is available with a 35cm 400-type coaxial cable terminated to an N-Type Male Connector.
The gain of this antenna is 10dBi and comes with 10o of Vertical BeamWidth.

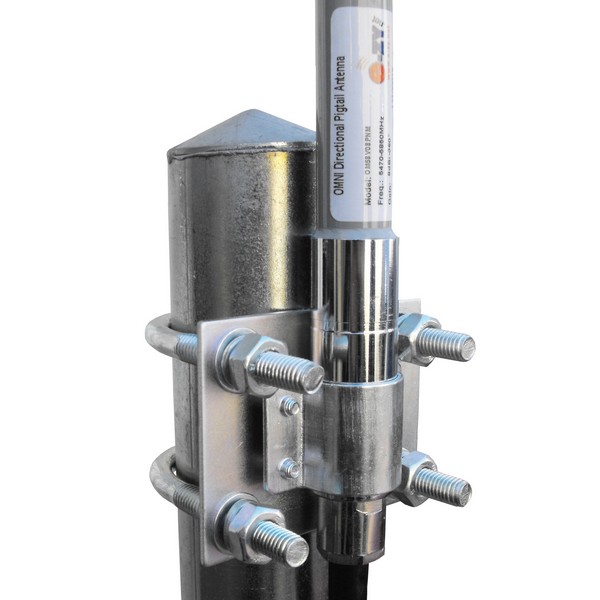

The antenna is supplied with steel mounting bracket and hardware for 1'' to 2'' OD pole.
The OM58V10PNM is ideally suited for MultiPoint applications where wide coverage is desired.
|
Specifications: |
|
Frequency |
5400-5850MHz |
|
Gain |
10dBi |
|
Polarization |
Vertical |
|
Vertical Beamwidth |
10o |
|
Horizontal Beamwidth |
360o |
|
Impedance |
50 Ohm |
|
Max Input Power |
100 Watts |
|
VSWR |
<1.5:1 avg. |
|
Weight |
0.63 Kg (with bracket) |
|
Body Length |
460mm |
|
Body Diameter |
19mm |
|
Radome Material |
UV-Inhibited Polymer |
|
Mounting Bracket |
25mm to 50mm |
|
Connector |
N-Type Male with 310mm pigtail |
|
Rated Wind Velocity |
60m/s |
