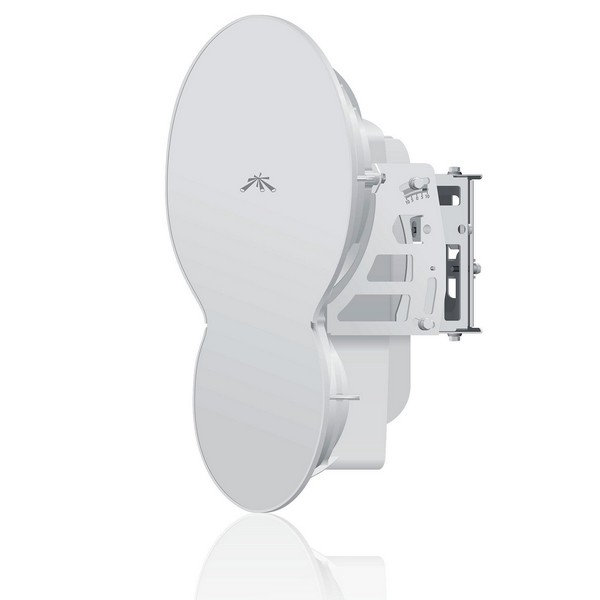

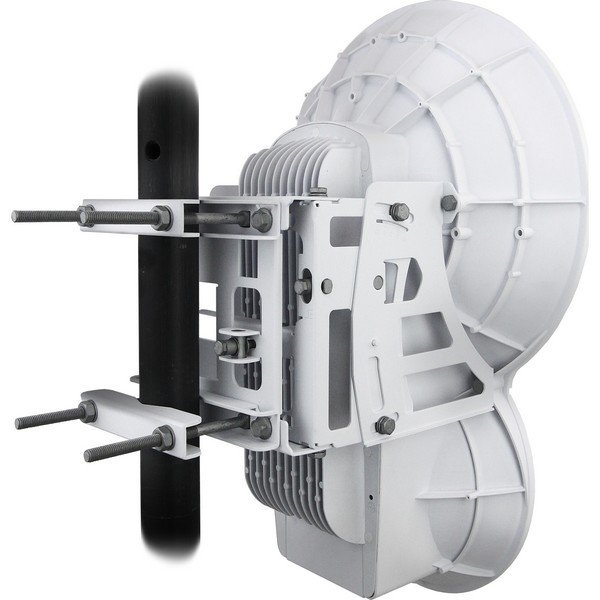

AF-24
The airFiber 24 is ideal for outdoor, PtP bridging and carrier-class network backhauls.
Designed to be a high-performance backhaul, delivers amazing wireless throughput of up to 1.4+ Gbps, surpassing conventional wired backhauls.
Robust enough to perform in the harshest RF noise environments, the airFiber 24 delivers superior performance with efficiency over real-world, 13+ km links.
It supports FDD (Frequency Division Duplexing) in full-duplex mode for < 1 ms latency, resulting in increased efficiency for carrier-class network backhauls.
AF-24 operates in worldwide, license-free, 24 GHz frequencies.
|

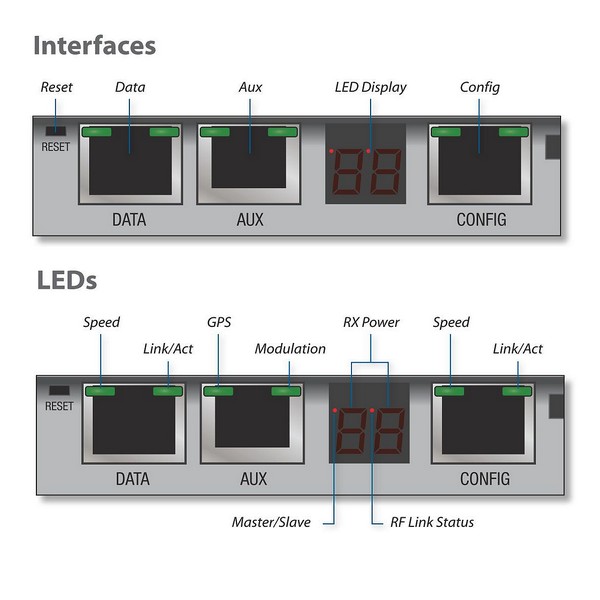

Connectors and Interfaces: |
|
LAN speed: |
(1) 10/100/1000Mbps + (1) 10/100Mbps (managment) |
|
GPS modul: |
Yes |
|
Other features: |
RJ-12 - Alignment Tone Port |
|
Physical characteristics: |
|
Wind load: |
200 km/h |
|
Radom: |
Yes |
|
Operating temperature: |
-40°C up to 55°C |
|
Weight: |
10500 g |
|
Depth: |
303 mm |
|
Width: |
426 mm |
|
Height: |
649 mm |
|
Power: |
|
Max. power consumption: |
50 W |
|
Power over Ethernet: |
42 .. 58V DC |
|
Software: |
|
Operating system: |
airOS F |
|
Default IP address: |
192.168.1.20 |
|
Default login and password: |
ubnt / ubnt |
|
Wireless features: |
|
Sensitivity: |
-87 dBm |
|
EIRP: |
33 (FCC/IC), 20 (CE) dBm |
|
Frequency range: |
24050 - 24250 MHz |
|
Cross-Pol Isolation: |
28 dB |
|
Maximum modulation: |
64QAM |
|
Polarization: |
VH |
|
F/B ratio: |
70 dB |
|
Channel bandwidth: |
100 MHz |
|
Transmission speed - 24GHz: |
760 Mb/s |
|
Security: |
WPA2 AES |
|
Beam angle - H. pol. : |
3,5° |
|
Beam angle - V. pol. : |
3,5° |
|
Antenna gain: |
Tx = 33, Rx = 38 dBi |
