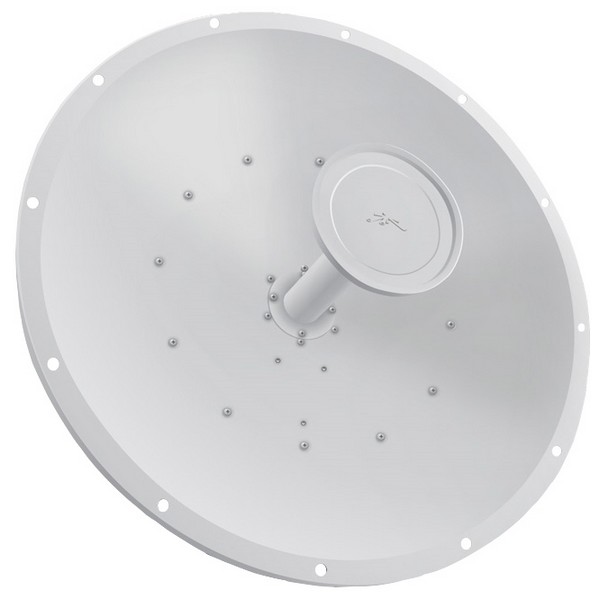

RD-5G34
Carrier Class Performance; breakthrough Price Points; instantly pair with Rocket M5 to create powerful 2x2 MIMO PtP Bridging.
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together.

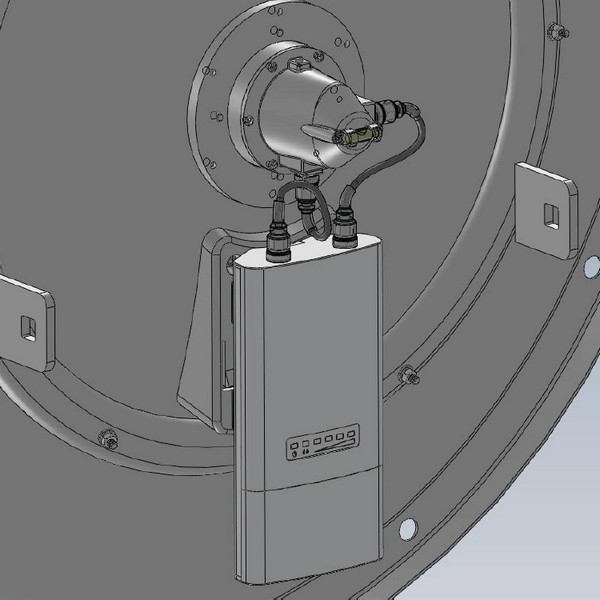

Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
Instantly pair with Rocket M5 to create powerful 2x2 MIMO PtP Bridging applications.

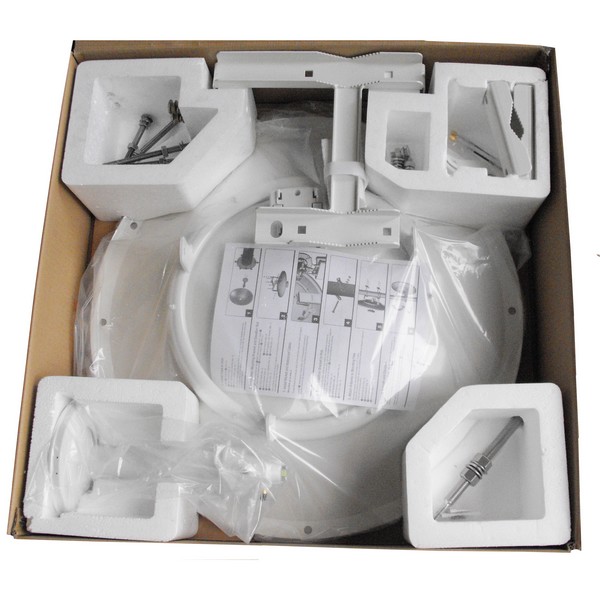

Full mating brackets and weatherproof RF jumpers included.
|
Specifications: |
|
Frequency Range: |
4.90-5.90 GHz |
|
Gain: |
30 - 34 dBi |
|
Polarization: |
Dual Linear |
|
Cross-Pol Isolation: |
35dB min |
|
Max VSWR: |
1.4:1 |
|
Hpol Beamwidth (3dB): |
3° |
|
Vpol Beamwidth (3db): |
3° |
|
F/B Ratio: |
-42dB |
|
ETSI Specification: |
EN302 326 DN2 |
|
Dimensions: |
1050mm diameter |
|
Weight: |
13.5Kgr |
|
Wind Survivability: |
125mph |
|
Windloading: |
113lb/100mph |
