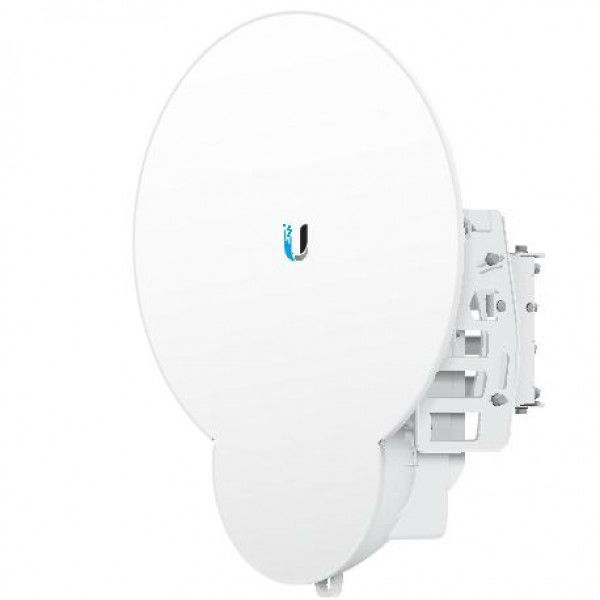

Ubiquiti Networks » AF-24HD
Ubiquiti AF-24-HD, airFiber 24GHz, 2Gbps+ Backhaul - 1pc
[1523][AF-24HD]
Price: 2.966,40€
Prices exclude VAT

Ubiquiti AF-24-HD, airFiber 24GHz, 2Gbps+ Backhaul - 1pc

Ships in:
3-5 working days
Order Qty:
UPC:810354022050

AF-24-HD

Featuring INVICTUS custom silicon for 2+ million packets-per-second processing; is ideal for outdoor PtP bridging and backhaul applications requiring maximum performance.

Featuring the unlicensed-band spectral efficiency at 15.9 bps/Hz, the airFiber 24 HD supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps.

It features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides range up to 20+ km and allows for constellation threshold extension.

The airFiber 24 HD supports FDD (Frequency Division Duplexing) in full-duplex mode for 0.2 millisecond latency, resulting in increased efficiency for carrier-class network backhauls.

AF-24-HD operates in worldwide, license-free, 24 GHz frequencies.

Connectors and Interfaces:
LAN speed:  (1) 10/100/1000Mbps + (1) 10/100Mbps (managment)
GPS modul:  Yes
Other features:  RJ-12 - Alignment Tone Port
Physical characteristics:
Wind load:  200 km/h
Radom:  Yes
Designed for mast diameter:  30 up to 100 mm
Operating temperature:  -40°C up to 55°C
Weight:  17300 g
Depth:  370 mm
Width:  593 mm
Height:  768 mm
Power:
Max. power consumption:  50 W
Power over Ethernet:  42 .. 58V DC
Software:
Operating system:  airOS F
Default IP address:  192.168.1.20
Default login and password:  ubnt / ubnt
Wireless features:
Sensitivity:  -87 dBm
EIRP:  33 (FCC/IC), 20 (CE) dBm
Frequency range:  24050 - 24250 MHz
Cross-Pol Isolation:  28 dB
Maximum modulation:  256QAM
Polarization:  VH
F/B ratio:  70 dB
Channel bandwidth:  100 MHz
Transmission speed - 24GHz:  1024 Mb/s
Security:  WPA2 AES
Beam angle - H. pol. :  3,5°
Beam angle - V. pol. :  3,5°
Antenna gain:  Tx = 33, Rx = 40 dBi


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
