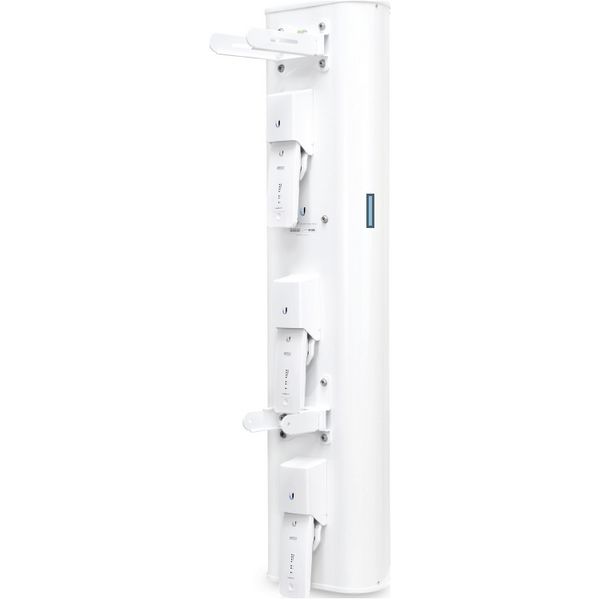

AP-5AC-90-HD
The AP-5AC-90-HD AirPrism sector antenna is the first multi sectoral antenna with 3 independent 2x2 MIMO sector antennas with a 30° radius coverage for the 5GHz band.
This sectoral antenna is made of the finest materials and is dedicated to reserved areas, or where you do not have much space on the mast and you need to connect more customers.

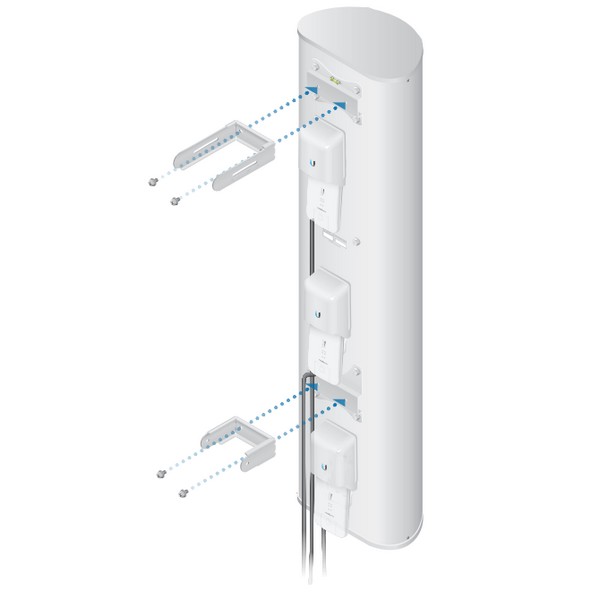

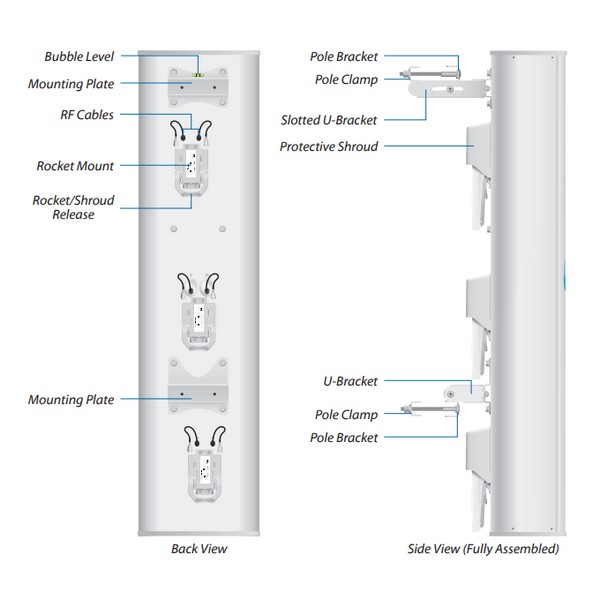

The three Rocket5ac Prism radios are installed at the top, middle, and bottom of the airPrism antenna.
Each radio independently transmits and receives within its corresponding 30° beamwidth.
|
Connectors and Interfaces: |
|

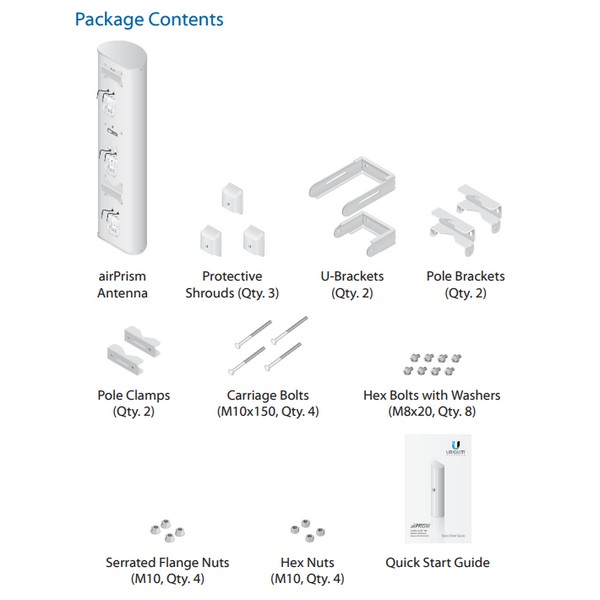

Rocket kit: |
Yes |
|
RF connectors: |
(6) RSMA male |
|
Physical characteristics: |
|
Wind load: |
200 km/h |
|
Purpose: |
Outdoor |
|
Weight: |
13,1 kg |
|
Depth: |
202 mm |
|
Width: |
323 mm |
|
Height: |
1330 mm |
|
Wireless features: |
|
Cross-Pol Isolation: |
30 dB |
|
MIMO, SISO: |
2 x 2 |
|
Polarization: |
VH |
|
VSWR: |
< 1,75 |
|
Wireless frequency: |
5 GHz |
|
Beam angle - H. pol. : |
30° |
|
Beam angle - V. pol. : |
8° |
|
Type of antenna: |
Sector |
|
Antenna gain: |
22 dBi |
