UF-OLT

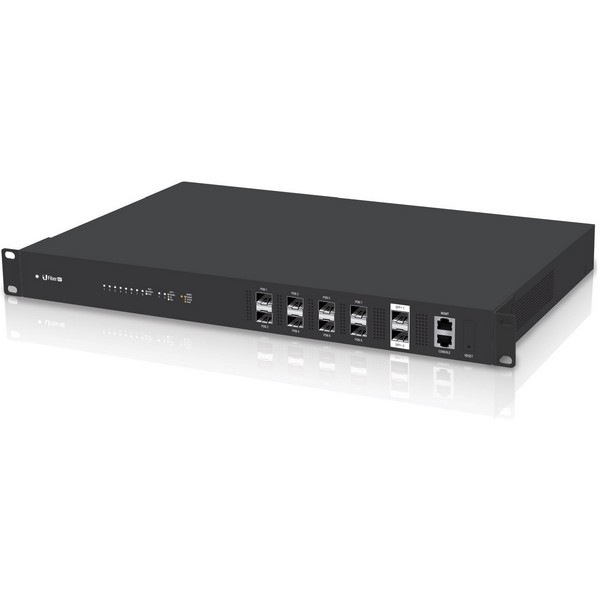

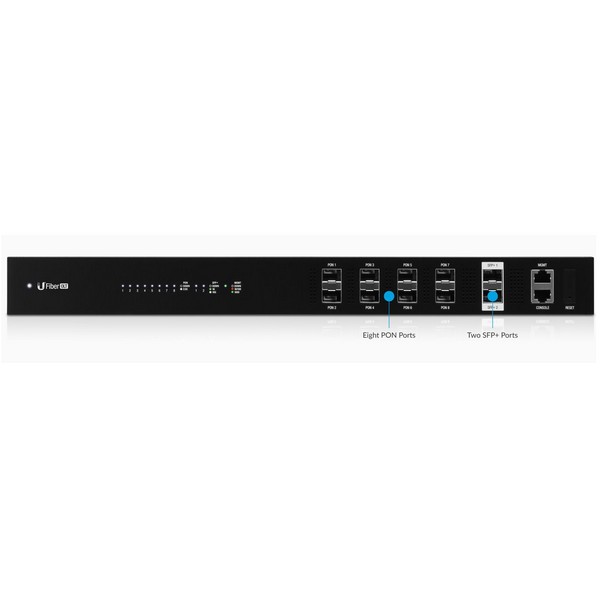

The UFiber OLT offers eight GPON ports and supports up to 1024 concurrent clients with physical links of up to 20 km in distance.
Two SFP+ ports provide 10G of uplink connectivity.

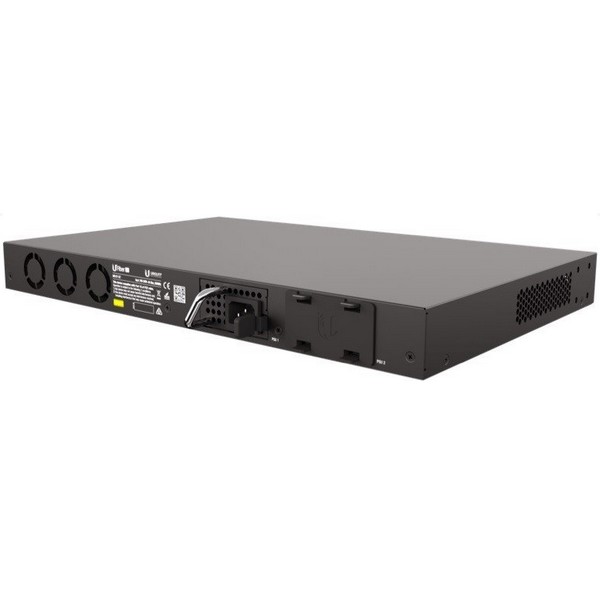

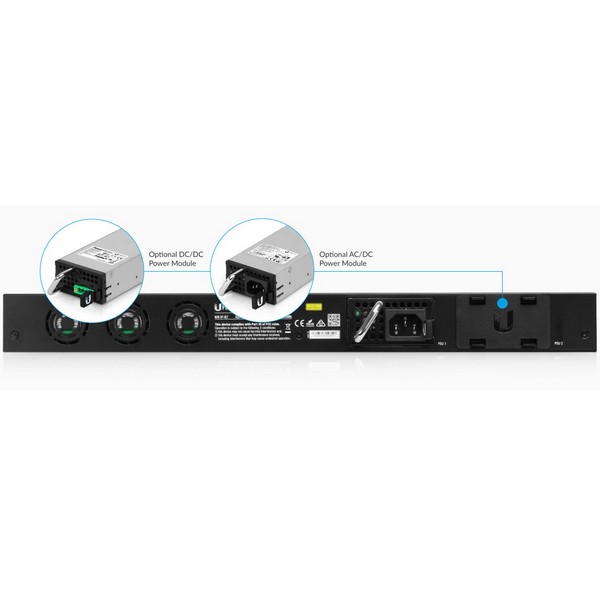

The UF-OLT provides flexible power options, with two modular power adapter bays that can house either AC/DC or DC/DC power modules.

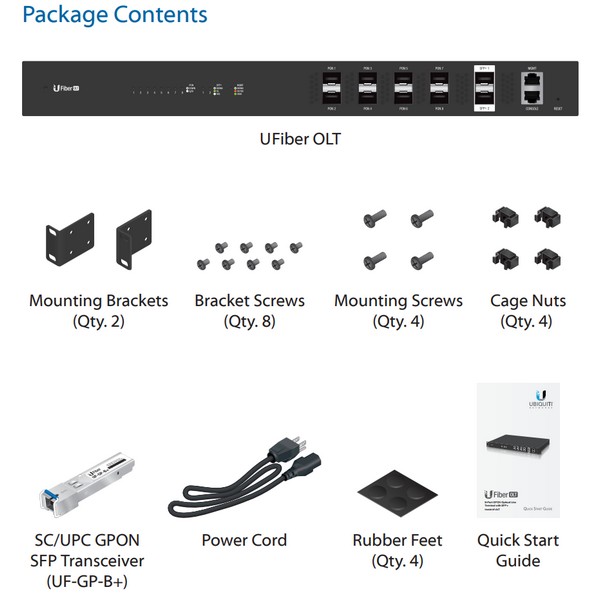

One AC/DC module is included; additional modules can be purchased separately.
|
Specifications: |
|
Dimensions: |
442.4 x 285.6 x 43.7 mm |
|
Weight: |
4.40 kg |
|
Networking Interface Speeds: |
GPON OLT SFP
1G/10G SFP+ |
|
Concurrent Clients: |
1024 Registered ONUs/ONTs (128 per GPON Port) |
|
Management Interfaces: |
Ethernet for Out-of-Band Management
RJ45 Serial Console Port |
|
GPON Speeds: |
2.488 Gbps Upstream (TX)
1.244 Gbps Downstream (RX) |
|
Operating Wavelengths: |
1490 nm TX
1310 nm RX |
|
Normal Optical Power Range: |
TX (Class B+): 1.5 dBm to 5 dBm
RX: -8 dBm to -28 dBm |
|
SRange: |
Physical Reach - 20 km
Logical Reach - 60 km
Max. Differential Fiber Distance - 20 km (B+) /40 km (C+) |
|
Power Method: |
PSU Module Bays |
|
Power Supply: |
54V 100W AC/DC PSU Module (Included) |
|
Max. Power Consumption: |
40W (Excluding SFP Modules) |
|
Operating Mode: |
OLT 2/3 Ethernet Switch and GPON Core |
|
Advanced QoS: |
Supports 8 Priority Queues per User Port and Traffic Classification |
|
Processor Specs: |
MIPS 1004kc 880 MHz Dual Core |
|
Memory Information: |
512 MB DDR3, 512 MB NAND |
|
Operating Temperature: |
-10°C to 45°C |
|
Operating Humidity: |
10 to 90% Non-condensing |
|
Certifications: |
CE, FCC, IC |
