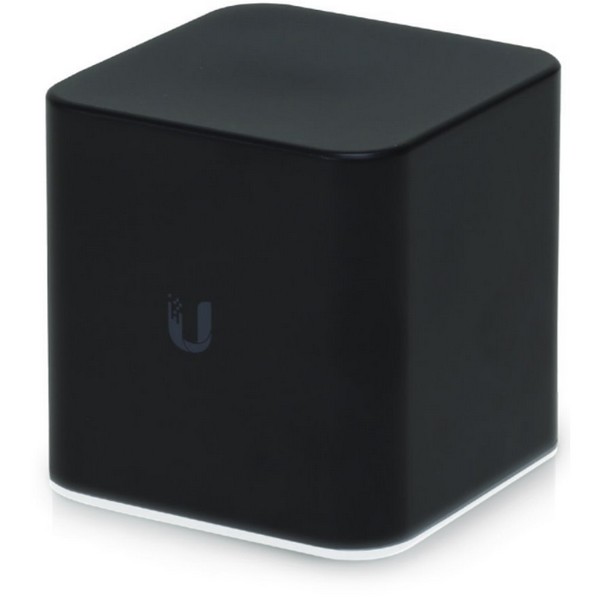

ACB-AC - airCube Home WiFi AP
High-performance home WiFi access point made to interoperate with airMAX CPE devices, with remote management by UISP.
 |
802.11ac 2x2 |
 |
Integrated 24V PoE passthrough via included PSU |
 |
UISP support for remote network management |
|
Specifications: |
|
Dimensions |
87.8 x 89.5 x 89.25mm |
|
Weight |
280g |
|
Hardware: |
|
Networking interface |

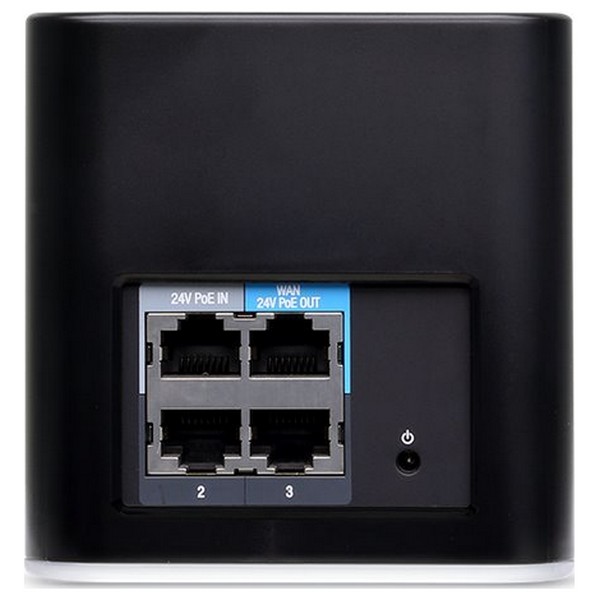

(4) GbE RJ45 ports |
|
Management interface |
Ethernet
WiFi |
|
Power method |
Micro-USB adapter (Included)
or
24v DC, 0.83A PoE 24v In on Ethernet port 1 |
|
Power supply |
24v |
|
Supported voltage range |
22v-27v DC |
|
Max. power consumption |
8.5W |
|
PoE Out |
Controllable 24V PoE Out (4, 5+, 7, 8-) on WAN Port |
|
Operating frequency |
2.4 GHz/5 GHz |
|
Antenna gain |
4 dBi @ 2.4 GHz
5 dBi @5 GHz |
|
Max. speeds |
300 Mbps @ 2.4 GHz
866.7 Mbps @5 GHz |
|
Max. TX power |
22 dBm |
|
ESD/EMP protection |
± 24 kV Contact / Air |
|
LED |
Status |
|
Ambient operating temperature |
-10°C to 50°C |
|
Ambient operating humidity |
5 to 95% noncondensing |
|
Certifications |
CE, FCC, IC |
