LiteBeam LAP-120
Ubiquiti LAP-120 is a complete radio system designed for 5GHz band working at 802.11ac standard.

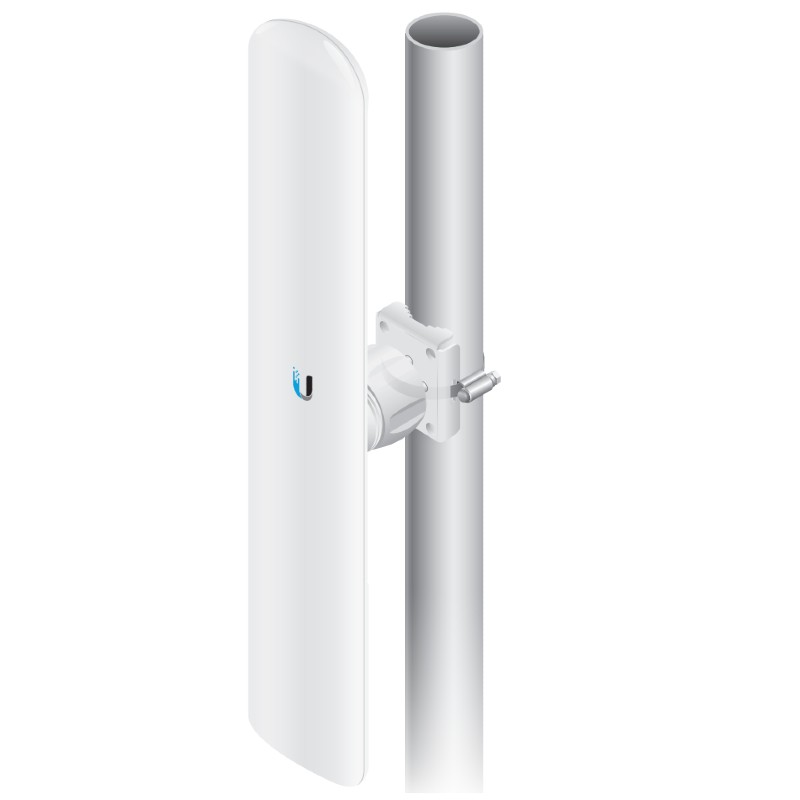

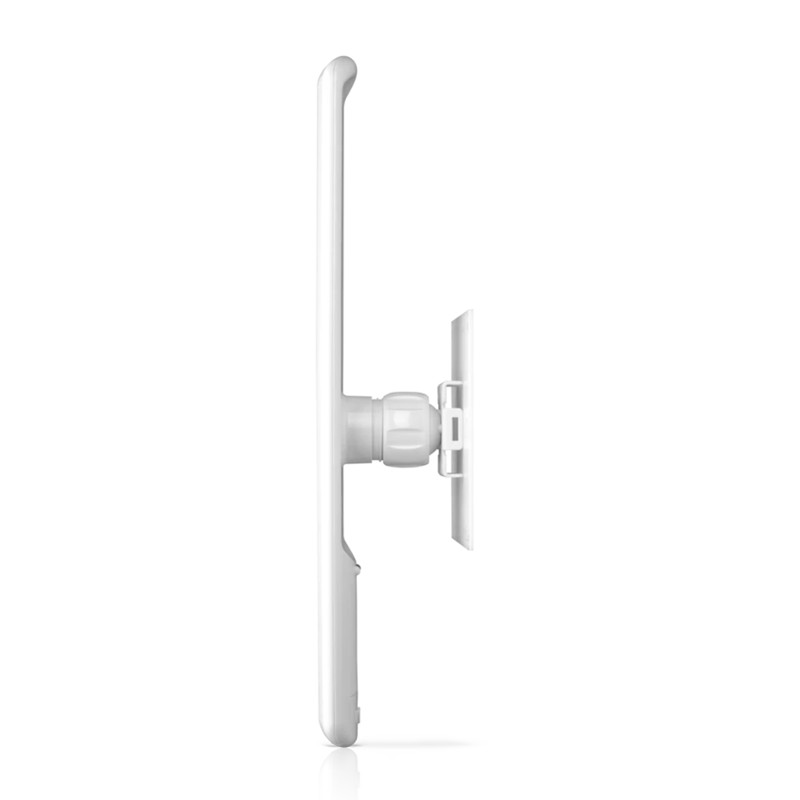

The LAP-120 features a unique ball joint mount that provides adjustment flexibility along three axes for versatile mounting options.
The device is equipped with integrated 25dBm radio module, 16dBi antenna and one Gigabit Ethernet port (10/100/1000Mbps).

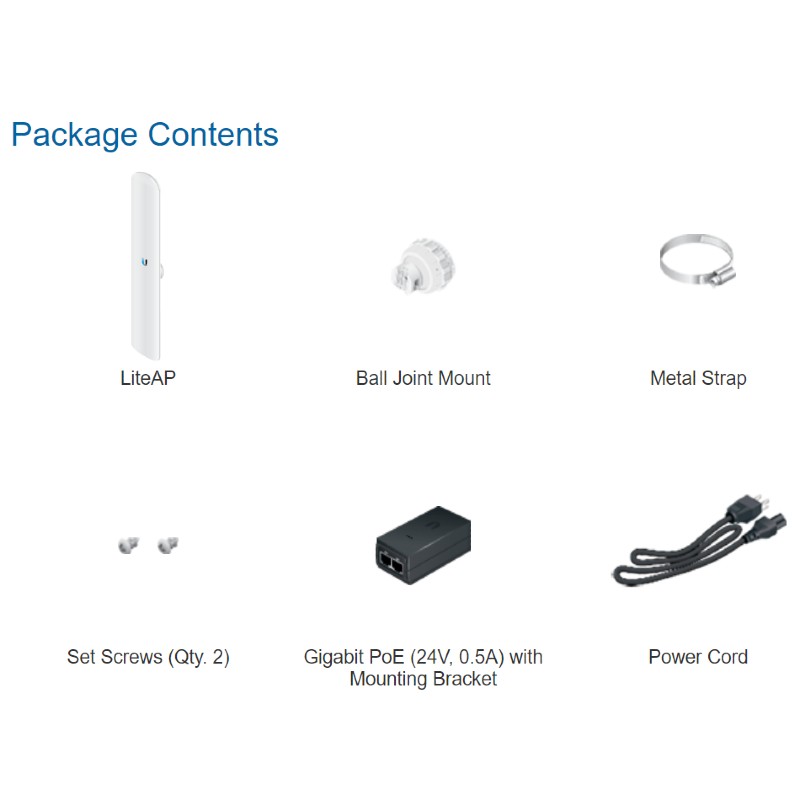

LAP-120 is designed to be a high performance and long range (up to 30km) device. It is powered by Passive PoE (PoE adapter included).
|
Connectors and Interfaces: |
|
LAN speed: |
(1) 10/100/1000Mbps |
|
Gigabit LAN: |
Yes |
|
Hardware: |
|
RAM memory size: |
64 MB |
|
Physical characteristics: |
|
Purpose: |
Outdoor |
|
Buttons: |
Reset |
|
Operating temperature: |
-40°C up to 70°C |
|
Weight: |
420 g |
|
Depth: |
54 mm |
|
Width: |
79 mm |
|
Height: |
452 mm |
|
Power: |
|
Max. power consumption: |
7 W |
|
PoE type: |
Input |
|
Software: |
|
Operating mode: |
Client, AP Router, Access Point, Client Router |
|
IPv6 support: |
Transparent (bridge mode) |
|
Default IP address: |
192.168.1.20 |
|
Default login and password: |
ubnt / ubnt |
|
Wireless features: |
|
Wireless frequency: |
5 GHz |
|
Transmission speed - WiFi 5GHz: |
866 Mb/s |
|
WiFi standards: |
airMAX ac |
|
Tx power 5GHz: |
25 dBm |
|
Security: |
WPA2 AES |
|
5GHz MIMO: |
2 x 2 |
|
Type of antenna: |
Build-in |
|
Internal antennas: |
2 |
|
Antenna gain: |
16 dBi |
