N-SW

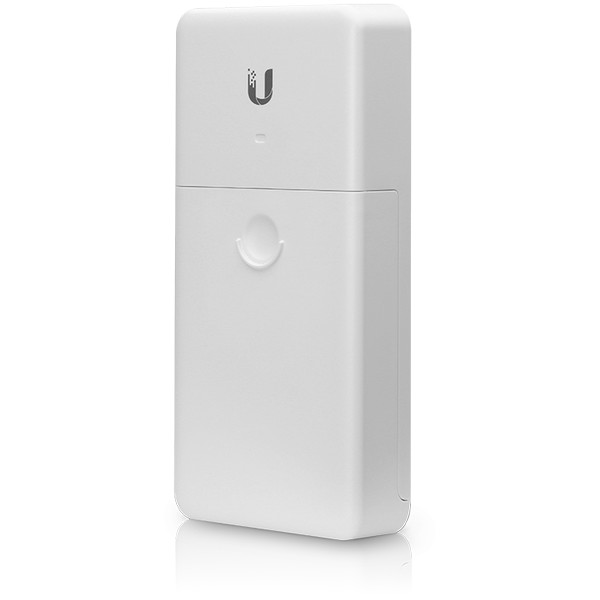

The NanoSwitch is an outdoor, 4-port Gigabit switch with PoE pass-through.

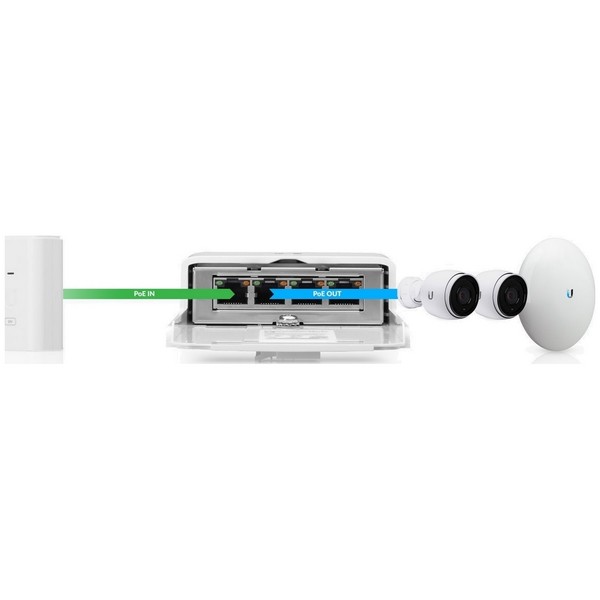

It is powered by 24V Passive PoE and provides up to 24W of power on three PoE out ports.
The NanoSwitch is designed for outdoor deployment and supports up to 4 Gbps total, non-blocking line rate.
*PoE Injector NOT Included
|
N-SW |
|
Dimensions |
196.4*93.5*32.4mm |
|
Weight |
269g |
|
Enclosure Characteristics |
White Polycarbonate |
|
HARDWARE |
|
Processor |
RTL8367N-VB |
|
On-Board Flash Storage |
4Kbits |
|
Total Non-Blocking Line Rate |
4Gbps |
|
Power Consumption |
1.5W |
|
Power Method |
Passive 24V PoE-in |
|
Supported Voltage Range |
Passive 24V PoE-in |
|
Networking Interfaces |
(4) 10/100/1000 Mbps Ethernet RJ45 |
|

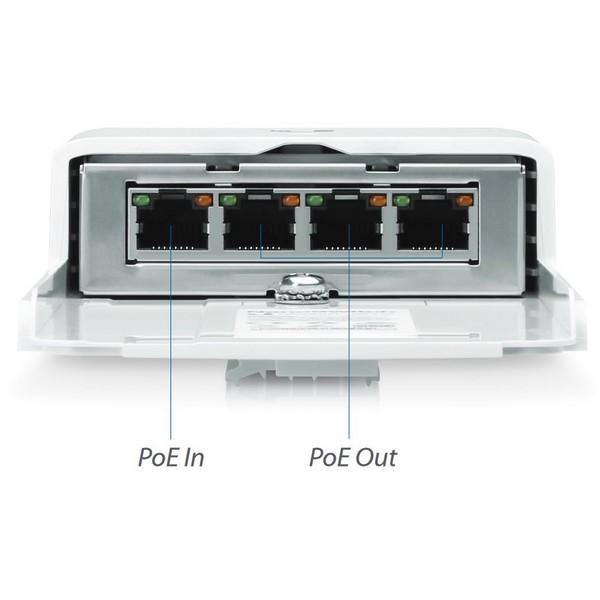

PoE Interfaces |
Passive 24V PoE-in |
|
Max PoE+ Wattage per Port by PSE |
24V@1A per port / Total [email protected] for three ports |
|
Passive PoE Max wattage per port |
24W per port / Total 36W for three ports |
|
Operating Temperature |
-30C ~ 70C |
|
Operating Humidity |
5 to 95% Non-Condensing |
