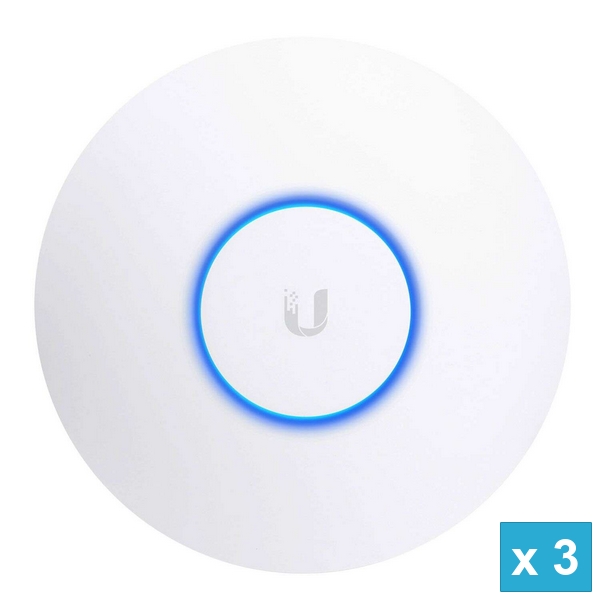

UAP-nanoHD
It is 2x2 MIMO in 2.4GHz band, 4x4 MU-MIMOin 5GHz band Acess point with modulation speed up to 300 + 1733 supporting 802.11/a/b/g/n/ac/ac-wave2.
UAP-nanoHD has two dual-band antenas with 3dBi gain and two antennas dedicated for 5GHz band.
It full supports roaming for transmission of associated clients between APs.
Device features 1x Gbit LAN supporting 48V DC POE (passive and active 802.3af).
|
Connectors and Interfaces: |
|
LAN speed: |
(1) 10/100/1000Mbps |
|
Gigabit LAN: |
Yes |
|
Physical characteristics: |
|
Purpose: |
Indoor |
|
Buttons: |
Reset |
|
Operating temperature: |
-10°C up to 70°C |
|
Weight: |
300 g |
|
Depth: |
160 mm |
|
Width: |
160 mm |
|
Height: |
33 mm |
|
Power: |
|
Max. power consumption: |
10,5 W |
|
Power over Ethernet: |
802.3af, 48V DC |
|
PoE type: |
Input |
|
Software: |
|
Operating mode: |
Access Point |
|
IPv6 support: |
Transparent (bridge mode) |
|
Default IP address: |
Dynamic from DHCP |
|
Default login and password: |
ubnt / ubnt |
|
Wireless features: |
|
Wireless frequency: |
2.4 + 5 GHz (dual band) |
|
Transmission speed - WiFi 2.4GHz: |
300 Mb/s |
|
Transmission speed - WiFi 5GHz: |
1733 Mb/s |
|
WiFi standards: |
802.11ac, 802.11n, 802.11a, 802.11b/g |
|
Tx power 2.4GHz: |
23 dBm |
|
Tx power 5GHz: |
26 dBm |
|
Security: |
WEP, WPA, WPA2 |
|
2.4GHz MIMO: |
2 x 2 |
|
5GHz MIMO: |
4 x 4 |
|
Type of antenna: |
Build-in |
|
Internal antennas: |
4 |
|
Antenna gain: |
3 dBi |
