Aerial.net :: Ubiquiti US-XG-6POE, UniFi 6 XG PoE Switch

Ubiquiti Networks » US-XG-6POE

Ubiquiti US-XG-6POE, UniFi 6 XG PoE Switch
[2266][US-XG-6POE]

Price: 544,51€

Prices exclude VAT

Ships in:
3-5 working days

Order Qty:

UPC:	817882021517

US-XG-6POE

Delivers robust performance, 1/2.5/5/10 Gigabit Ethernet ports with PoE++ support, SFP+ and intelligent switching for your networks.

The UniFi Switch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Multiple switches connect via SFP+ to the UniFi Switch 16 XG.

It features auto-sensing IEEE 802.3af/at/bt PoE to power multiple devices on the network.

Also offers maximum performance and low latency as an aggregation switch.

Product Links:
Datasheet	Quick Start Guide	User Guide

Specifications:
Dimensions	165 x 268.1 x 31.8 mm
Weight	1.3 kg

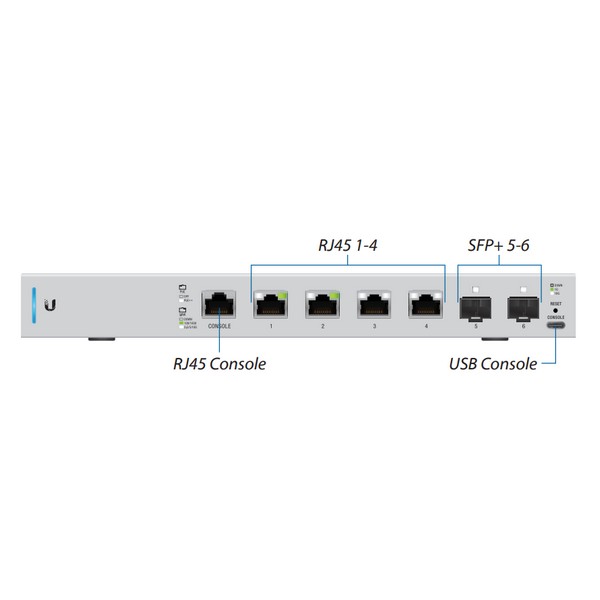

Interfaces Networking Management	(4) 100/1000 Mbps and 2.5/5/10G RJ45 Ports (2) 1/10G SFP+ Ethernet Ports Ethernet In-Band (1) RJ45 Serial Port Out-of-Band (1) USB Type C Port Out-of-Band

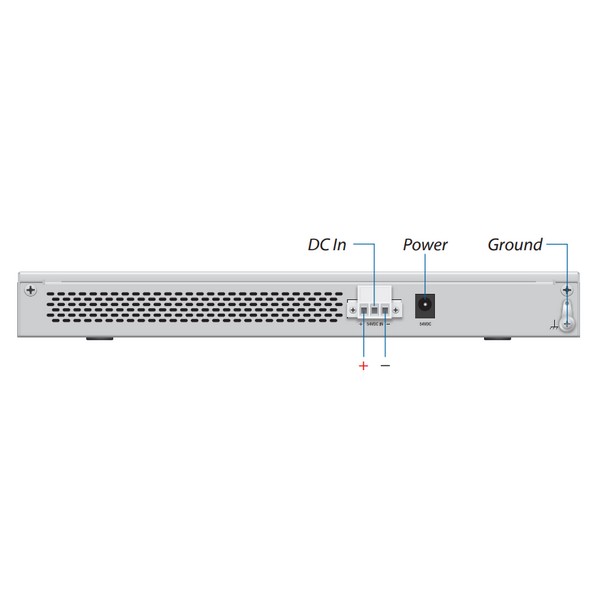

Power Method	54VDC, 3.88A Power Adapter (Included) or DC Input with Terminal Block
Power Supply	External AC/DC Adapter (Included) or DC Power Source
Supported Voltage Range	44 to 57VDC
Max. Power Consumption (Excluding PoE Output)	40W
LEDs System RJ45 Data Ports SFP+ Data Ports	Status PoE; Speed/Link/Activity Link/Activity
ESD/EMP Protection	Air: ± 18 kV, Contact: ± 12 kV
Shock and Vibration	ETSI300-019-1.4 Standard
Operating Temperature	-5°C to 45°C
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
PoE Interfaces	PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
Max. 802.3bt Wattage per Port by PSE	60W
Voltage Range 802.3af Mode	44-57V
Voltage Range 802.3at/bt Mode	50-57V
