LAP-GPS

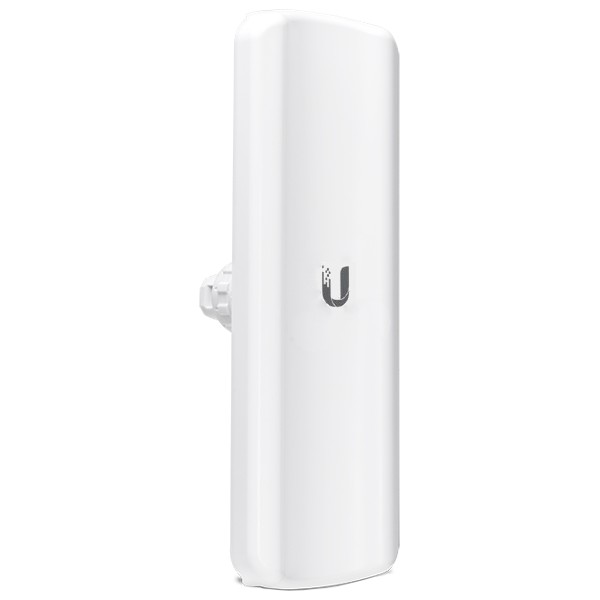

The LiteAP ac is an ultra-lightweight airMAX ac Access Point with incredible performance and disruptive pricing.
Features a 2x2 MIMO antenna and communicates with multiple airMAX ac CPEs within a 120° coverage area.
Supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher.
Also features a lightweight antenna with an integrated radio in a sleek and highly efficient design.

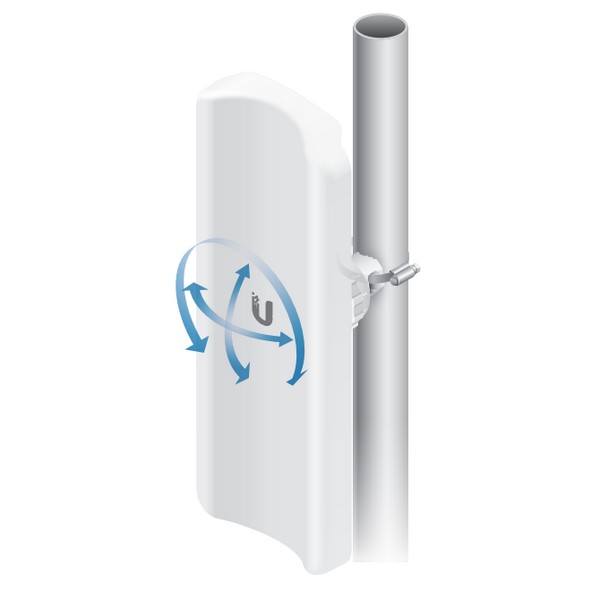

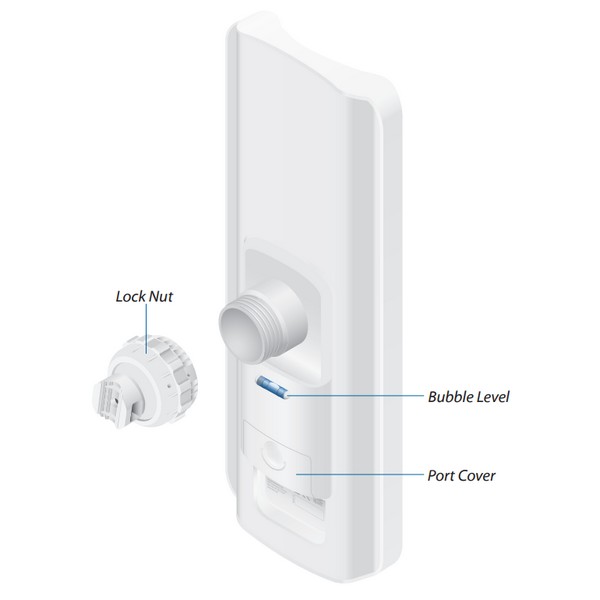

The LiteAP ac fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
|
Specifications: |
|
Dimensions |
360.98 x 124.57 x 71.28 mm |
|
Weight |
752 g |
|
Mounting Kit |
Pole Mounting Kit |
|
Networking Interface |
(1) 10/100/1000 Ethernet Port |
|
Memory |
DDR2 64 MB |
|
Max. Power Consumption |
7.1W |
|
Max. TX Power |
25 dBm |
|
Antenna Gain |
17 dBi |
|
Power Supply |
Passive PoE (Pairs 4, 5+; 7, 8 Return) |
|
Processor Specs |
Atheros MIPS 74Kc, 533 MHz |
|
ETSI Specification |
EN 302 326 DN2 |
|
ESD/EMP Protection |
± 24 kV Contact / Air |
|
Operating Temperature |
-40°C to 70°C |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Certifications |
FCC, IC, CE |
|
RoHS Compliance |
Yes |
