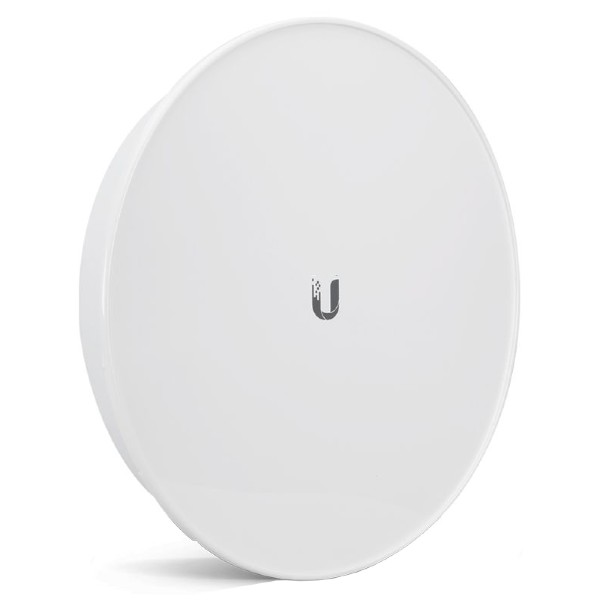

PBE-5AC-ISO-Gen2 - airMAX PowerBeam 5AC ISO

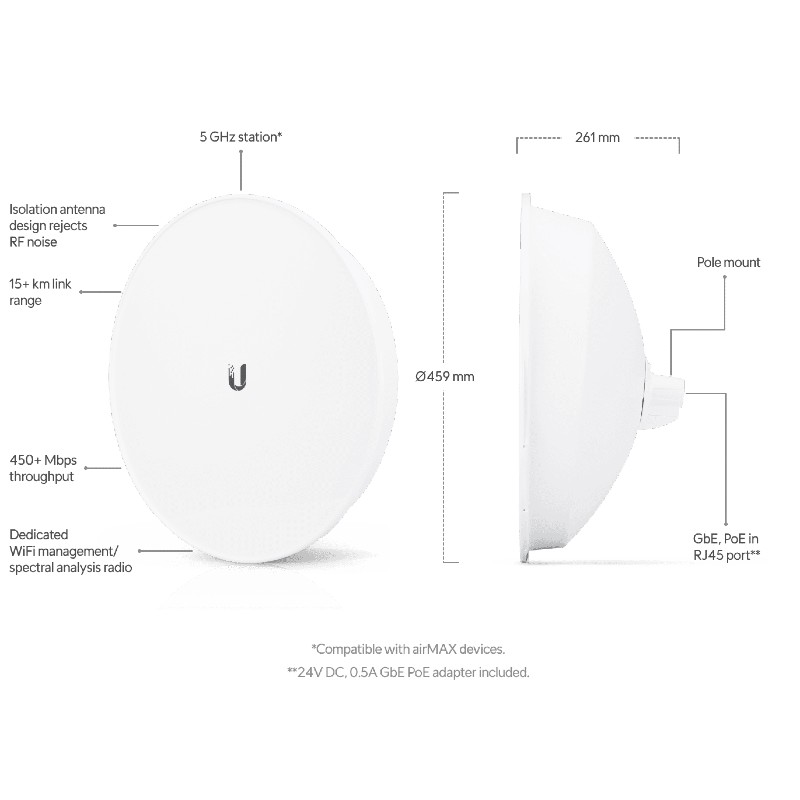

5 GHz WiFi bridge with a 450+ Mbps real TCP/IP throughput rate and enhanced surge protection.
-
5 GHz, 15+ km link range
-
450+ Mbps throughput
-
Isolation antenna design rejects RF noise
-
Dedicated spectral analysis radio
-
Dedicated WiFi management radio
Note. This product should be purchased in pairs in order to form links.
|
Specificaions: |
|
Dimensions |
420 x 420 x 230 mm |
|
Weight |
2.2 kg |
|
Enclosure material |
UV-stabilized plastic, powder-coated SPCC |
|
Mounting |

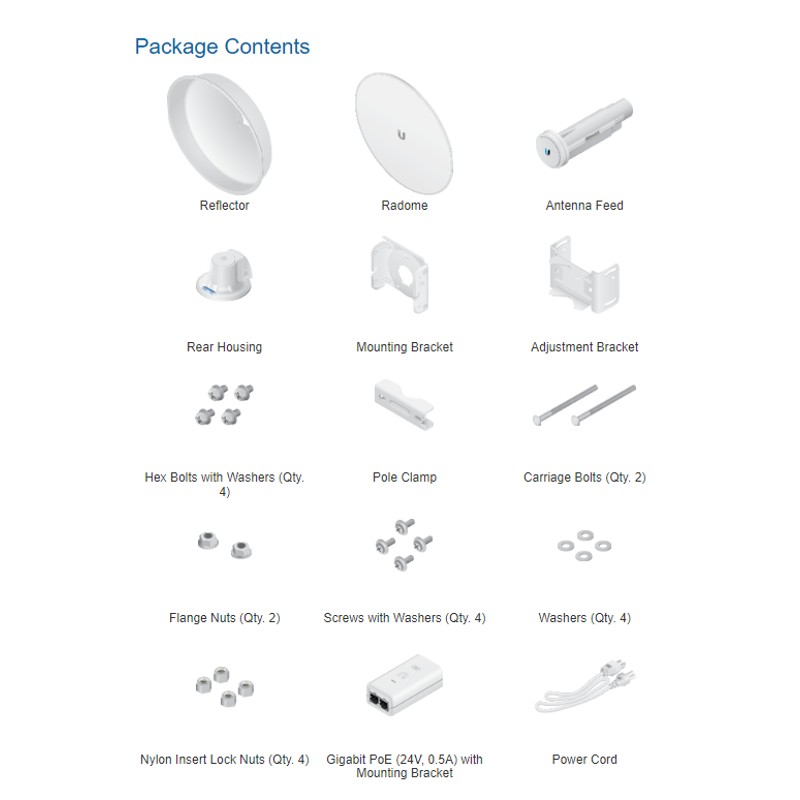

Pole mount kit (Included) |
|
Wind loading |
380 N at 200 km/h |
|
Wind survivability |
200 km/h |
|
Hardware |
|
Networking interface |
(1) GbE RJ45 port |
|
Power method |
Passive PoE 2-pair (4, 5+; 7, 8 return) |
|
Power supply |
24V, 0.5A gigabit PoE adapter (Included) |
|
Supported voltage range |
20—27V DC |
|
Max. power consumption |
8.5W |
|
ESD/EMP protection |
Air/contact: ± 24 kV |
|
LEDs |
Power, Ethernet, (4) signal strength |
|
Salt fog test |
IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5 |
|
Vibration test |
IEC 68-2-6 |
|
Temperature shock test |
IEC 68-2-14 |
|
UV test |
IEC 68-2-5 at 40° C (104° F)
Equivalent: ETS 300 019-1-4 |
|
Wind-driven rain test |
ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5 |
|
Ambient operating temperature |
-40°C to 70°C |
|
Ambient operating humidity |
5 - 95% noncondensing |
|
Certifications |
CE, FCC, IC, RoHS |
|
System |
|
Gain |
25 dBi |
Channel sizes
PtP Mode
PtMP Mode |
10/20/30/40/50/60/80 MHz
10/20/30/40 MHz |
|
Operating Frequency (MHz) |
|
Worldwide |
5150 - 5875 MHz |
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3 |
5150 - 5250 MHz
5250 - 5350 MHz
5470 - 5725 MHz
5725 - 5850 MHz |
