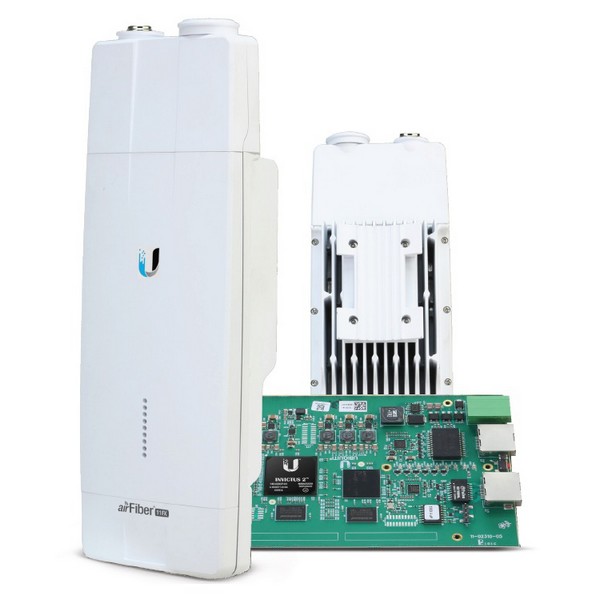

AirFiber 11 from Ubiquiti Networks is a product used to implement point-point radio link, providing high performance.
It works in 11GHz band.This device is based on technology which is used in valued AirFiber 24.
It is sold whitout antennas, which can be adjusted according to needs (gain from 23dBi to 34dBi).

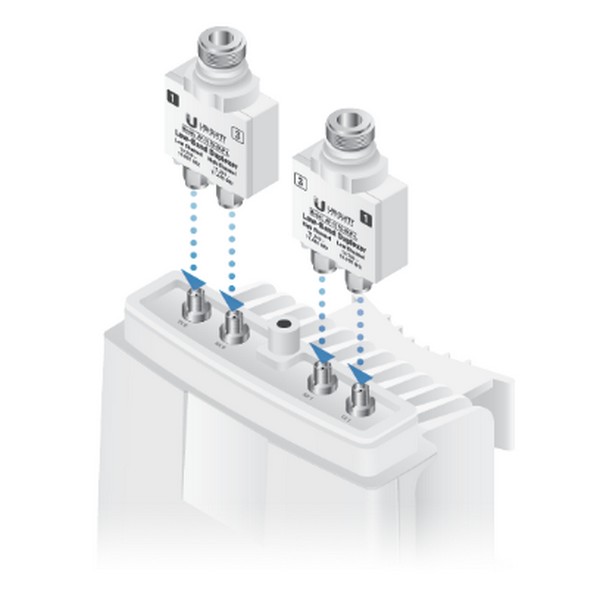

This product does not contain any duplexer. To provide correct operation, you should decide which frequency of 11GHz band would you like to use and install adequate duplexer.
|
Specifications: |
|
Dimensions |
327 x 112 x 86 mm |
|
Weight with eqiupment |
2.26 kg
|
|
Maximum power consumption |
36W |
|
Interfaces |
(4) SMA Weatherproof:
TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1)
(2) N-Type Waterproof, One per Duplexer
|
|
Power supply |

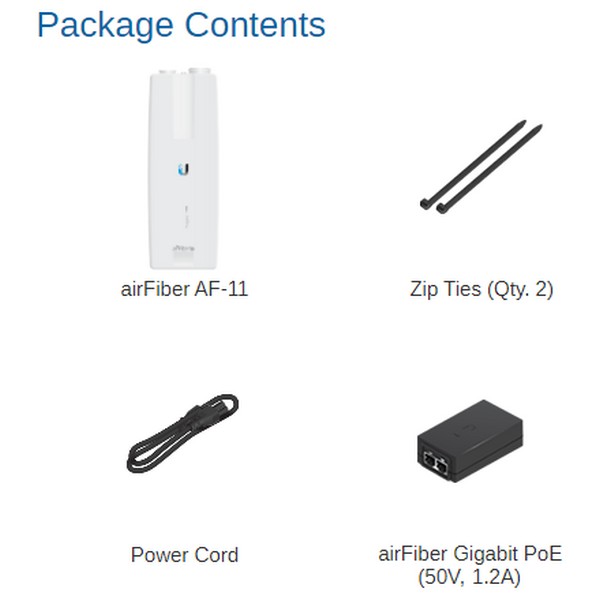

50V power adapter, 1A Gigabit PoE Adapter (included) |
|
Mounting |
Integrated Pole Mount Included
Oversized Rocket Mount Compatible
|
|
Certifications |
CE, FCC, IC
|
|
Operating temperature |
-40°C to +55°C |
|
Processor |
AF-11 INVICTUS 2 Custom Silicon Design |
|
Maximum throughput |
Up to 1.2+ Gbps Throughput |
|
Maximum range |
300+ km |
|

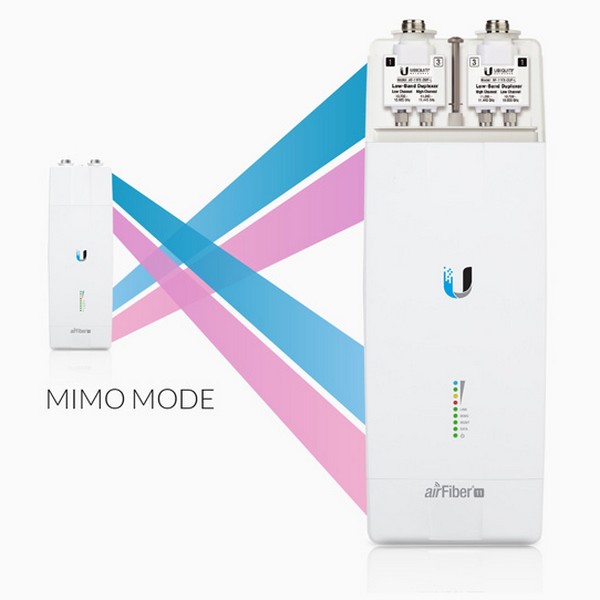

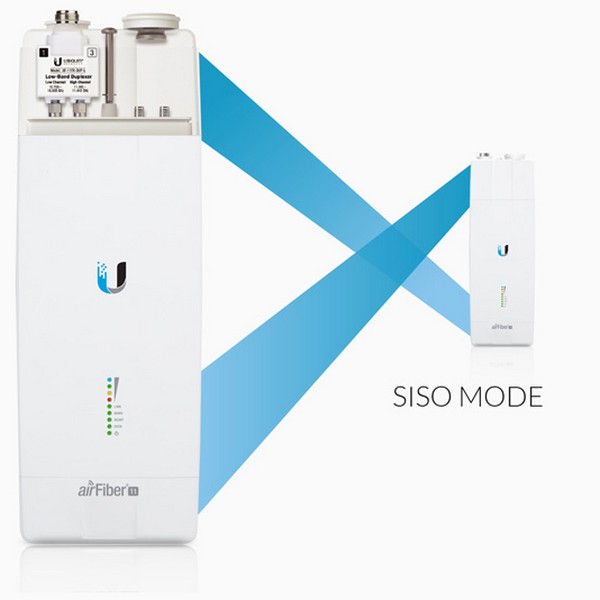

Wireless modes |
Master/Slave |
|
Operating frequency |
11 GHz (Dependent on Regulatory Region) |
|
Channel bandwidth |
3.5/5/7/10/14/20/28/30/40/50/56 MHz
|
|
Max. Conducted TX Power |
Up to 30dBm (Dependent on Regulatory Region) |
