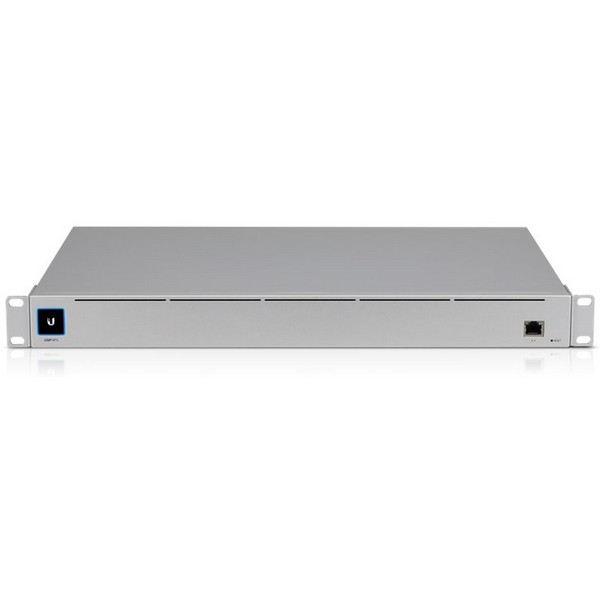

USP-RPS - UniFi Redundant Power System
The UniFi® SmartPower Redundant Power System, model USP-RPS, is a proprietary redundant power system designed to protect up to six UniFi SmartPower supported devices from sudden power supply module failure. The USP-RPS continually monitors all attached devices. In the event of an internal AC/DC power supply failure, failover is automatic so your network continues to operate with no interruption in service. With a 950W DC power budget, the USP-RPS can protect a variety of high-power devices, including UniFi PoE switches. An integrated 1.3" color touchscreen LCM displays system information for convenient monitoring.
Features
-

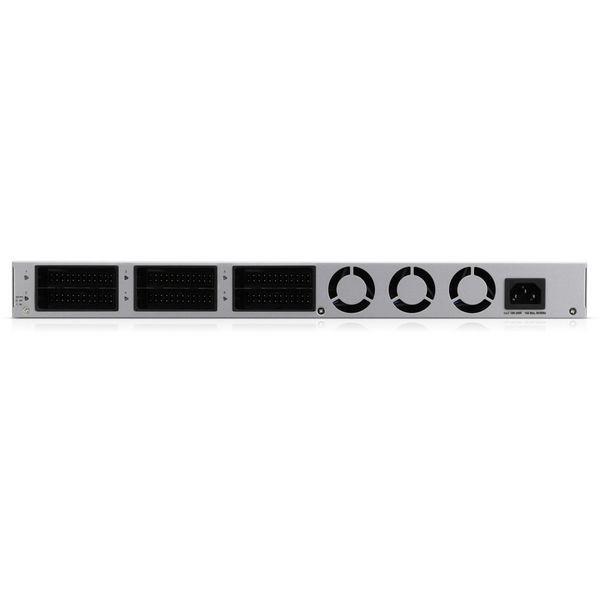

(6) USP DC output ports
-
(1) Ethernet port
-
1U Rackmountable (kit included)
-

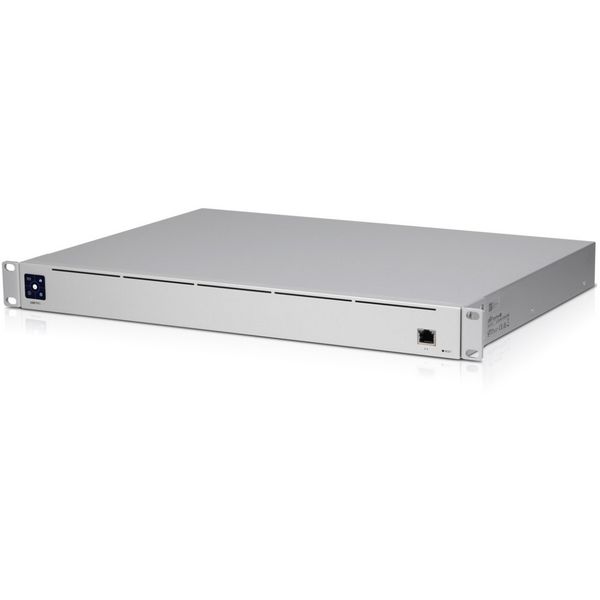

1.3" Touchscreen display with status information
-
Managed by UniFi Network Controller version: 5.12.11 or later
|
Specifications |
|
Management |
Ethernet |
|
Networking Interface |
(1) GbE RJ45 port |
|
Power Method |
(1) Universal AC input, 100—240V AC |
|
Power Supply |
54V DC output: AC/DC, internal, 645W
12V DC output: AC/DC, internal, 350W |
|
Supported Voltage Range |
100—240V AC |
|
Max. Power Consumption |
995W |
|
Power Output |
(6) RPS DC ports |
|
Max. Power Output |
52V DC: 11.54A (600W)
11.5V DC: 30.44A (350W) |
|
Max. Output Power per RPS Port |
52V DC: 11.54A (600W)
11.5V DC: 30.44A (350W) |
|
ESD/EMP Protection |
Air: ± 16kV, contact: ± 12kV |
|
Display |
1.3" touchscreen |
|
Buttons |
(1) Factory-reset |
|
LEDs |
System: Status
Ethernet: Link/activity
USP RPS: Activity |
|
Ambient Operating Temperature |
-5 to 45° C |
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
NDAA Compliant |
✓ |
|
Certifications |
CE, FCC, IC |
