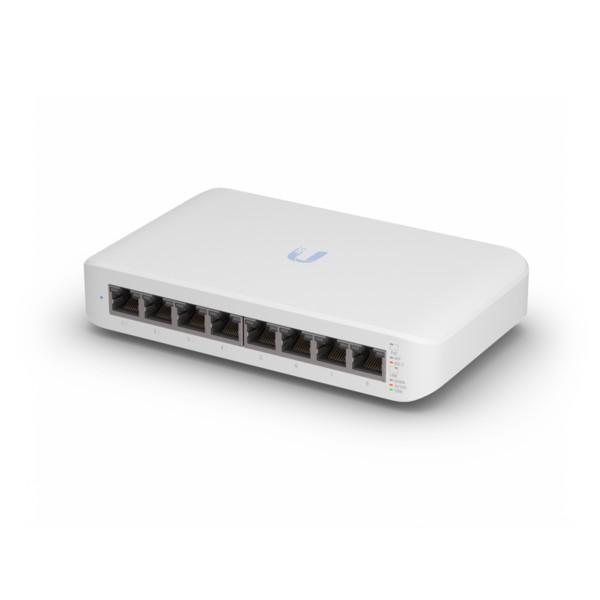

USW-Lite-8-PoE - Fully managed Layer 2 switch with (8) Gigabit Ethernet ports in a compact form factor.
The USW-Lite-8-PoE is a fully managed Layer 2 switch with eight Gigabit Ethernet ports for your RJ45 Ethernet devices.
Four ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices.
Managed and configured by the UniFi Network application with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features.
The UniFi Network application and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Features :
-

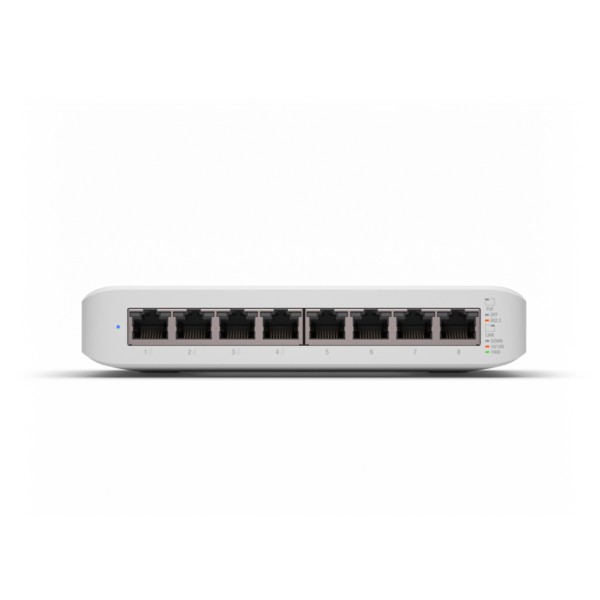

(8) Gigabit RJ45 ports including
-
(4) 802.3af/at PoE+ ports
-
Managed with UniFi Application Version: 5.13.10 or later
-

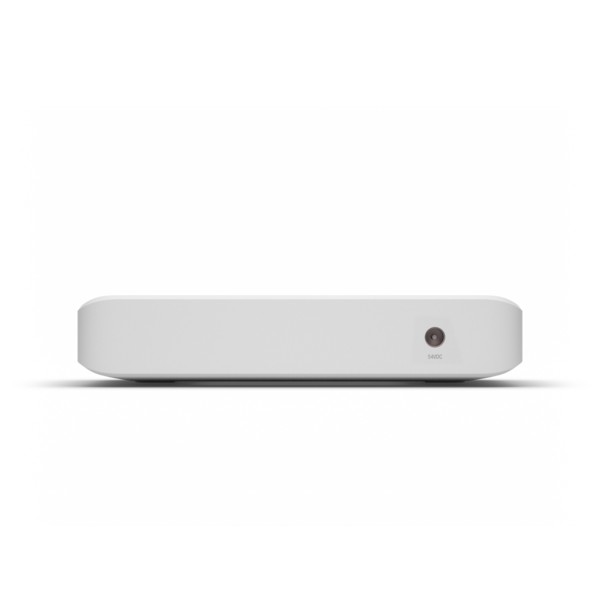

External 60W power adapter
-

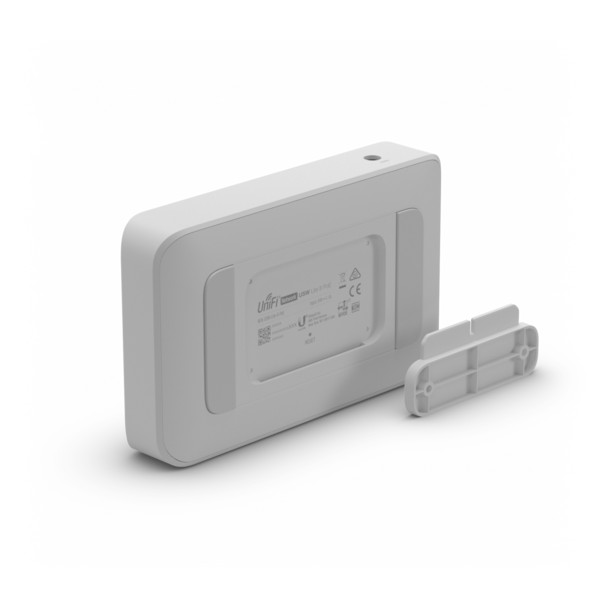

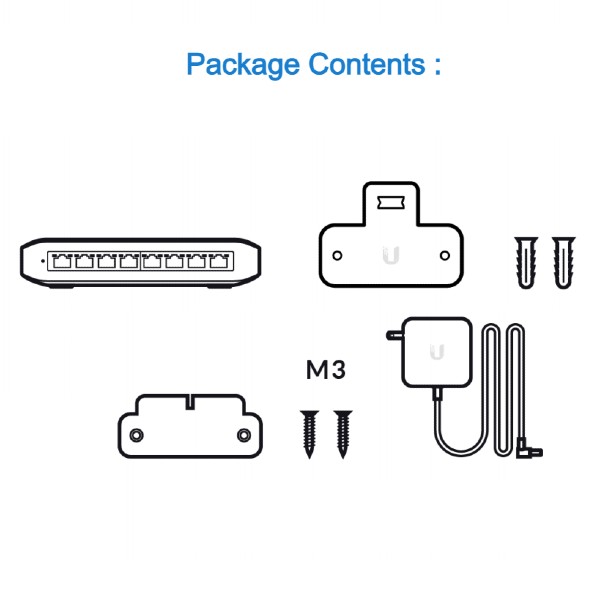

Wall-mountable (Kit included)
|
Mechanical |
|
Dimensions |
99.6 x 163.7 x 31.7 mm |
|
Weight |
450 g |
|
Hardware |
|
Total Non-Blocking Line Rate |
8 Gbps |
|
Max. Power Consumption |
8W |
|
Power Method |
54VDC, 1.1A Power Adapter |
|
Power Supply |
External 54V/60W Power Adapter |
|
Supported Voltage Range |
DC 50V to 57V |
|
Networking Interfaces |
(8) 10/100/1000 Mbps Ethernet RJ45 Ports |
|
PoE Interfaces |
(4) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
|
Mangement Interface |
Ethernet In-Band |
|
Max. PoE+ Wattage per Port by PSE |
30W |
|
Modes |
SMB Layer 2 PoE Gigabit Ethernet Switch |
|
Operating Temperature |
-15°C to 40°C |
|
Operating Humidity |
10 - 90% Noncondensing |
|
Certifcations |
CE, FCC, IC |
|
LED |
|
System |
(1) Power, Blue/White
Flashing White: Bootup in Progress
Flashing Blue: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted |
|
Ethernet |
Green: 1G, Amber: 10/100 Mbps |
|
PoE |
Amber: IEEE 802.3af/at |
