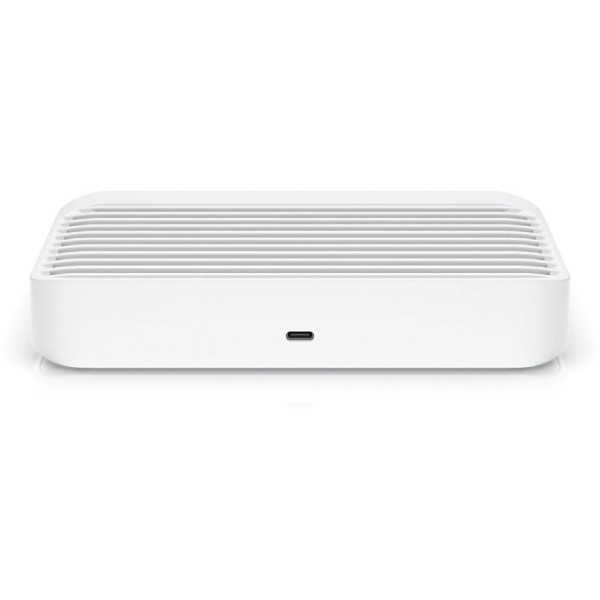

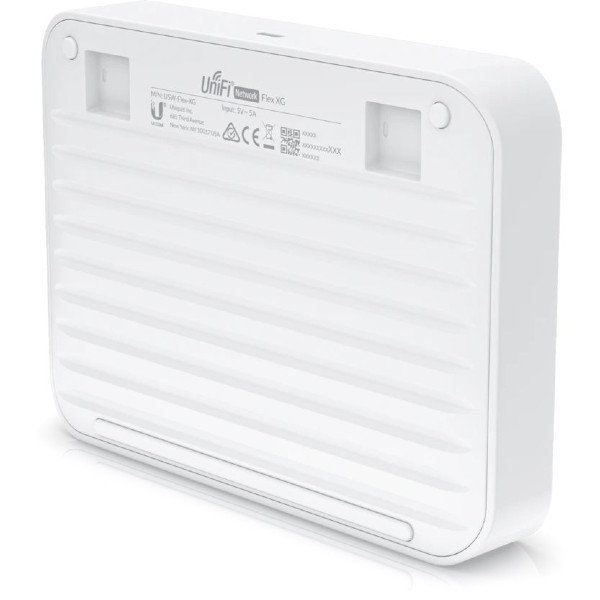

UniFi Flex XG - High Performance Managed Layer 2 Multi-Gigabit switch with (1) PoE input and (4) 10GbE Ethernet ports.
Build and expand your network with the USW-Flex-XG. The UniFi Flex XG is a congurable managed-grade 10 GbE Layer 2 switch.

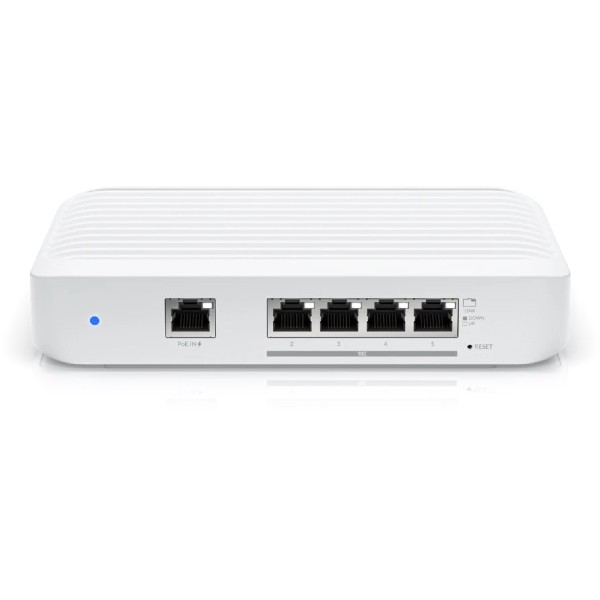

It offers 5 RJ45 Gigabit Ethernet ports, providing (1) PoE input and (4) 10GbE RJ45 Ethernet ports to your network.
Housed in a compact and slim design, the UniFi Flex XG can tinto any networking environment, delivering high performance switching capacity and easy management via the UniFi Network controller.
Desktop-Mountable (Do not physically stack the USW-Flex-XG.)
|
Mechanical |
|
Dimensions |
135 x 185 x 32 mm |
|
Weight |
1.2 kg |
|
Enclosure Material |
Polycarbonate |
|
Hardware |
|
Total Non-Blocking Throughput |
41 Gbps |
|
Switching Capacity |
82 Gbps |
|
Forwarding Rate |
61.012 Mpps |
|
Max Power Consumption |
25W |
|
Power Method |
(1) 802.3at PoE, 50-57VDC, 25W
(1) USB Type-C, 5VDC, 5A |
|
Power Supply |
802.3at PoE (Pins 1, 2+/3, 6- or 4, 5+/7, 8-)
AC/DC Power Adapter, 5VDC, 5A, 1.5 m Cord |
|
Supported Voltage Range |
90 to 264VAC (Adapter) |
|
Management Interface |
Ethernet In-Band |
|
Networking Interfaces |
(1) 10/100/1000 Mbps RJ45 Ethernet
(4) 1/2.5/5/10 Gbps RJ45 Ethernet |
|
Services |
SMB Layer 2 Gigabit Ethernet Switch |
|
ESD/EMP Protection |
Air: ± 16 kV, Contact: ± 12 kV |
|
Button |
Factory Reset |
|
Operating Temperature |
-5°C to 45°C |
|
Operating Humidity |
10 - 90% Noncondensing |
|
Certifications |
CE, FCC, IC |
|
LEDs |
|
System |
(1) Power, Blue/White
Flashing White: Bootup in Progress
Flashing Blue: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted |
|
Ethernet |
White: Link or Activity |

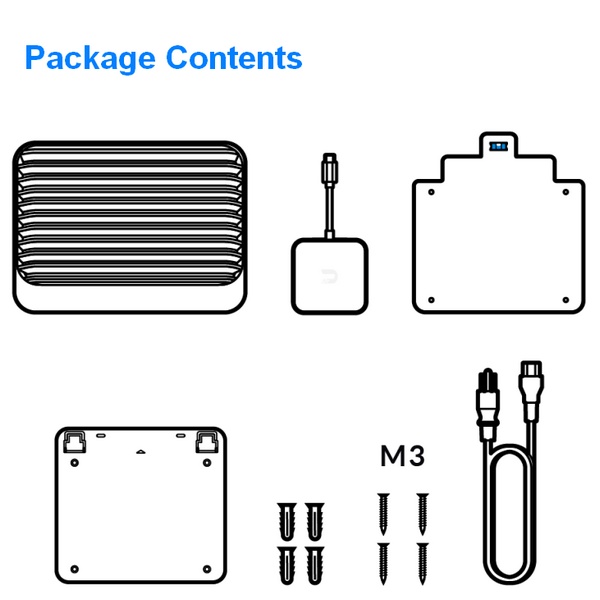

| Package Contents: |
|---|
| 1 x USW-Flex-XG
|
| 1 x Mountign KIT
|
| 1 x Power Supply 5VDC, 5A with 1.5m AC Cable |
|
