UISP-Cable-Carrier
Protect your networks from the most brutal environments with Ubiquiti’s industrial-grade shielded ethernet cable, TOUGHCable.
Dramatically improve your ethernet link states, speeds, and overall performance with Ubiquiti TOUGHCables.
TOUGHCables have been built to perform even in the harshest weather and environments.
Protect your networks from devastating ESD Attacks, TOUGHCables eliminate ESD attacks and ethernet hardware damage.
TOUGHCables have been developed to have increased power handling performance for extended cable run lengths.
|
Specifications: |
|
Cable: |
CAT5e, Shielded |
|
Ethernet Support: |
Up to 1 Gbps |
|
Conductor Wire: |
Gauge 24 AWG |
|
Conductor Solid: |
bare copper |
|
Conductor Diameter: |
0.500±0.005 mm |
|
Insulation Type: |
Solid PE |
|
Insulation Thickness: |
AVG: 0.26mm, MIN: 0.25 mm |
|
Insulation Diameter: |
1.04±0.03 mm |
|
Separation (Polyester Wrapping): |
Thick: 0.025mm, Extent: 20 mm |
|
Anti-Crosstalk Divider: |
None |
|
Cable Shield (Aluminum Foil): |
Thick: 0.060 mm, Extent: 18 mm |
|
ESD Drain Wire: |
0.4 CCS |
|
Rip Cord: |
Yes |
|
Jacket Material: |
PE |
|
Jacket Thickness: |
AVG: 0.50mm, MIN: 0.46 mm |
|
Jacket Outer Diameter: |
6.0±0.30 mm |
|
Jacket Color: |
Gray |
|
Reference Standard: |
ISO/IEC 11801, TIA/EIA568B.2 |
| Package Contents: |
|---|

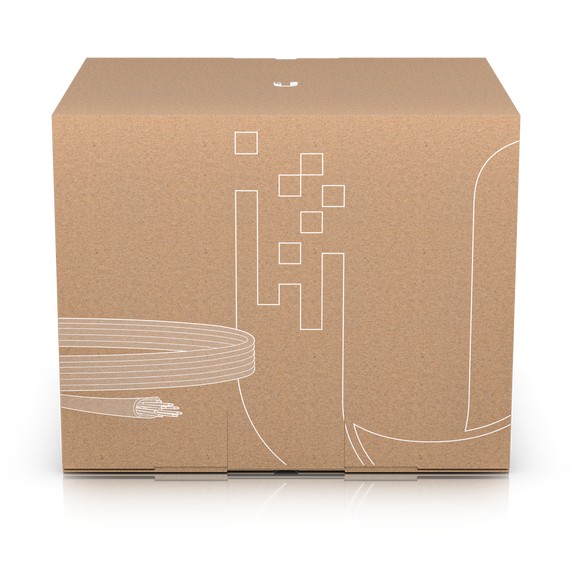

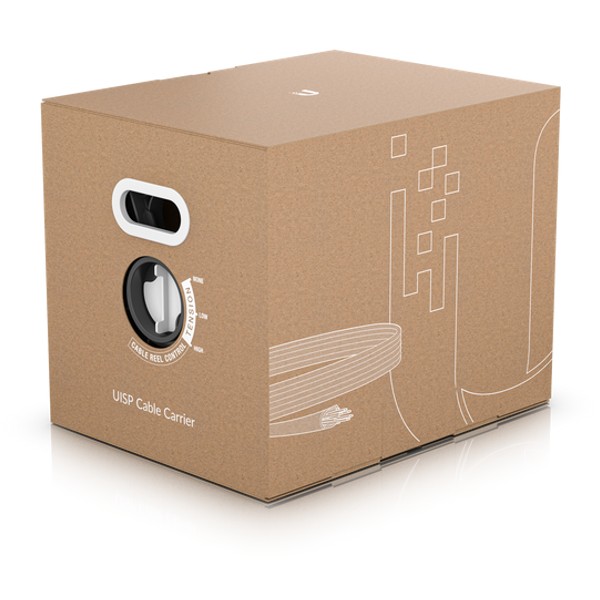

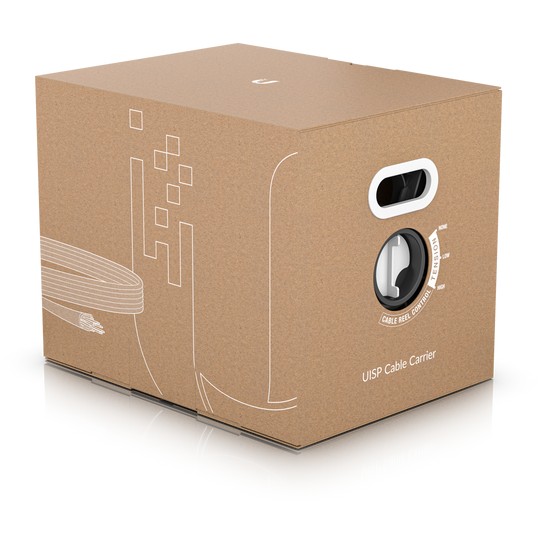

| 1 x UISP-Cable-Carrier 305 spool |
| Additional Images: |
|---|
 |
 |
|
