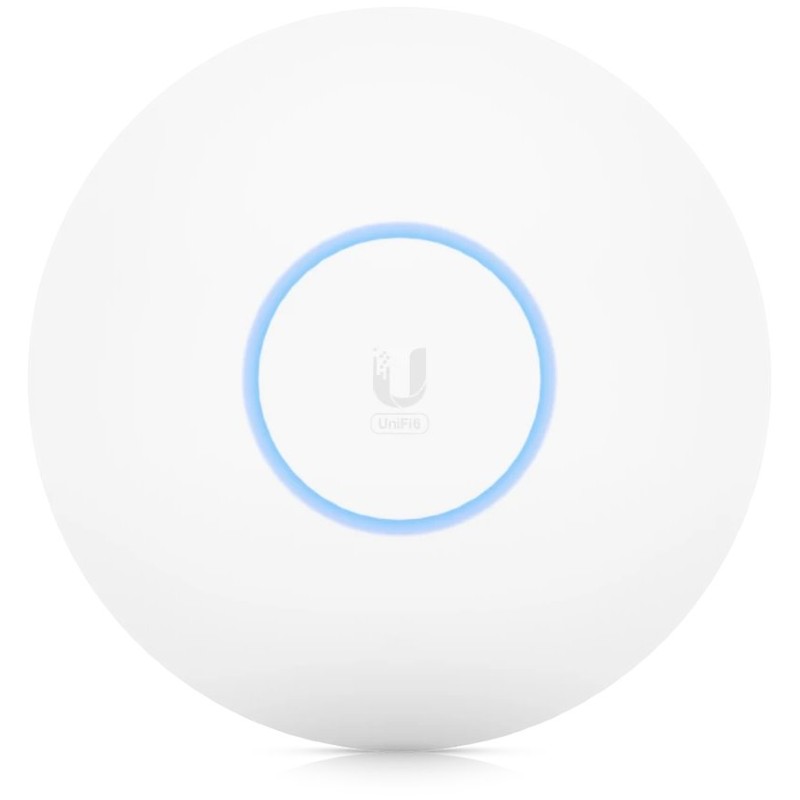

U6-Pro - Access Point U6 Pro In
UniFi Access Point WiFi 6 Pro (U6-Pro) is a high-performance Dual-band WiFi 6 Access Point and is ideal for home and office use.
U6-Pro is able to achieve great throughput - in the band 5 GHz (4×4 MU-MIMO) it is 4800 Mbps when used with 160 MHz bandwidth and in 2.4 GHz (2×2 MIMO) is 574 Mbps, which allows it to support more than 300 simultaneously connected clients.

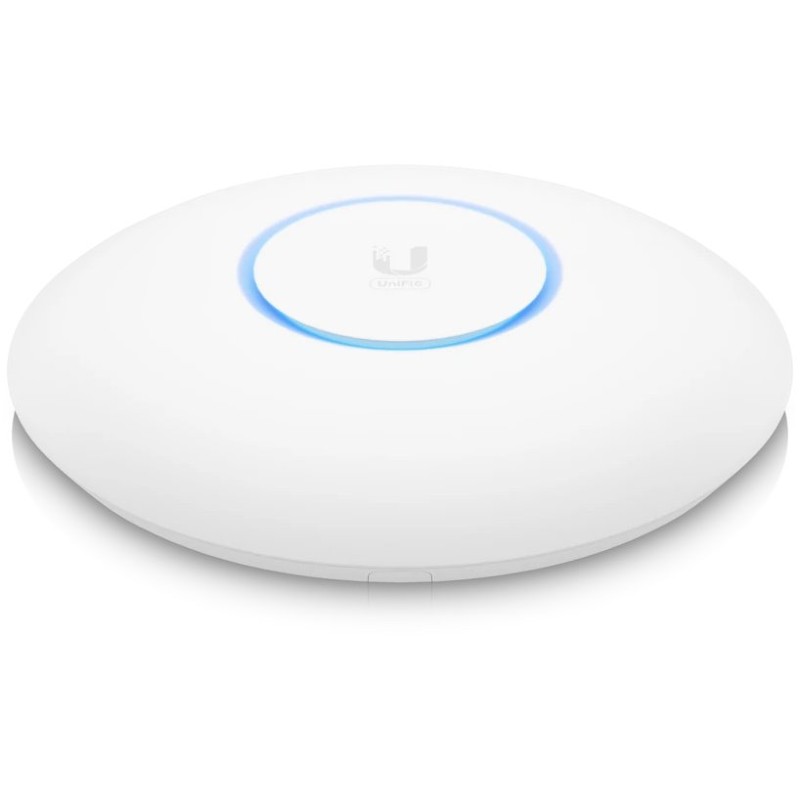

Thanks to its stealthy looks, it fits into any environment and due to its design with IP54 protection, it can be used partially in outdoor installations.
The access point has Gigabit Ethernet with support for active PoE (802.3at) but also passive 44 to 57V PoE.
Managed with UniFi Network application: Version 6.1.56 and later
|
Mechanical |
|
Dimensions |
Ø197 x 35 mm |
|
Weight |
460 g without mount
600 g with mount |
|
Enclosure material |
Plastic |
|
Mounting material |
SGCC steel |
|
Weatherproofing |
IP54 |
|
Hardware |
|
Management interfaces |
Ethernet
Bluetooth |
|
Networking interface |

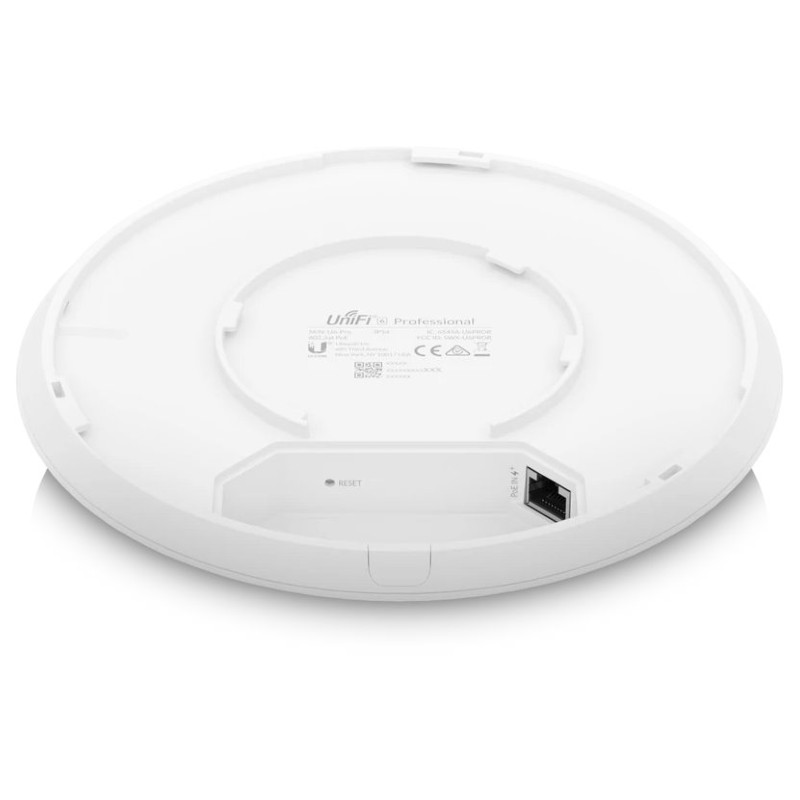

(1) GbE RJ45 port |
|
Button |
Factory reset |
|
LED* |
White/blue |
|
Power method |
PoE+ |
|
Power supply |
UniFi PoE switch
48V, 0.5A PoE adapter (not included) |
|
Supported voltage range |
44—57V DC |
|
Max. power consumption |
13W |
Max. TX power
5 |
22 dBm @ 2.4 GHz
26 dBm @ GH z |
|
MIMO |
2 x 2 (UL MU-MIMO) @ 2.4 GHz
4 x 4 (DL/UL MU-MIMO) @ 5 GHz |
|
Throughput rate |
573.5 Mbps @ 2.4 GHz
4.8 Gbps @ 5 GHz |
|
Antenna gain |
4 dBi @ 2.4 GHz
6 dBi @ 5 GHz |
|
Mounting |
Wall/ceiling |
|
Operating temperature |
-30°C to 60°C |
|
Operating humidity |
5 to 95% noncondensing |
|
Certifications |
CE, FCC, IC |
|
Software |
|
WiFi standards |
802.11a/b/g WiFi 4/WiFi 5/WiFi 6 |
|
Wireless security |
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
|
BSSID |
8 per radio |
|
VLAN |
802.1Q |
|
Advanced QoS |
Per-user rate limiting |
|
Guest traffic isolation |
Supported |
|
Concurrent clients |
300+ |
|
Zero wait DFS |
Yes (Supported with upcoming firmware versions) |
|
Supported Data Rates |
|
802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
802.11b |
1, 2, 5.5, 11 Mbps |
|
802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
802.11n (WiFi 4) |
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
|
802.11ac (WiFi 5) |
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
|
802.11ax (WiFi 6) |
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
