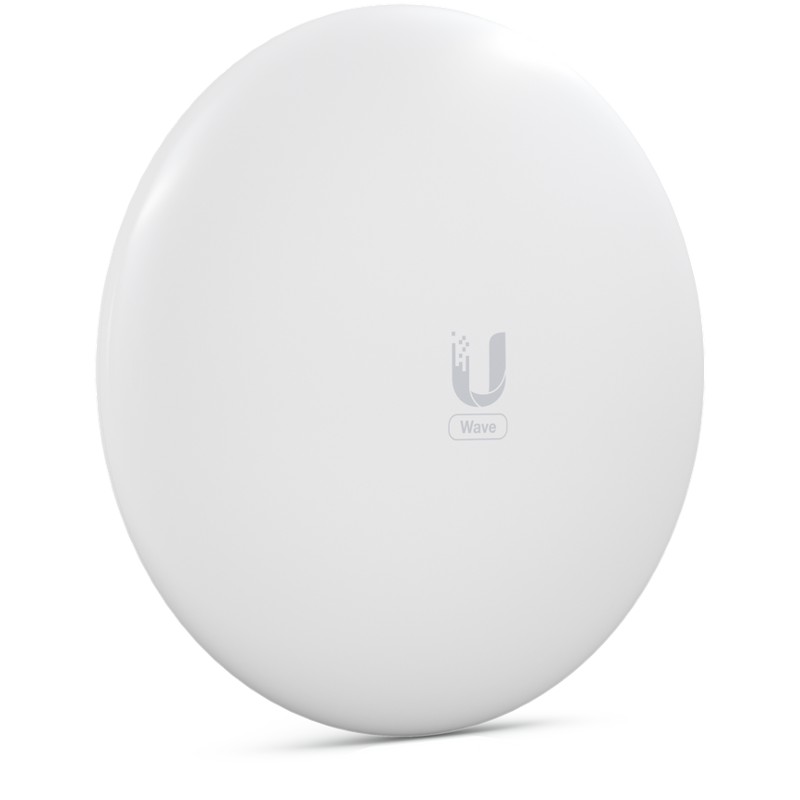

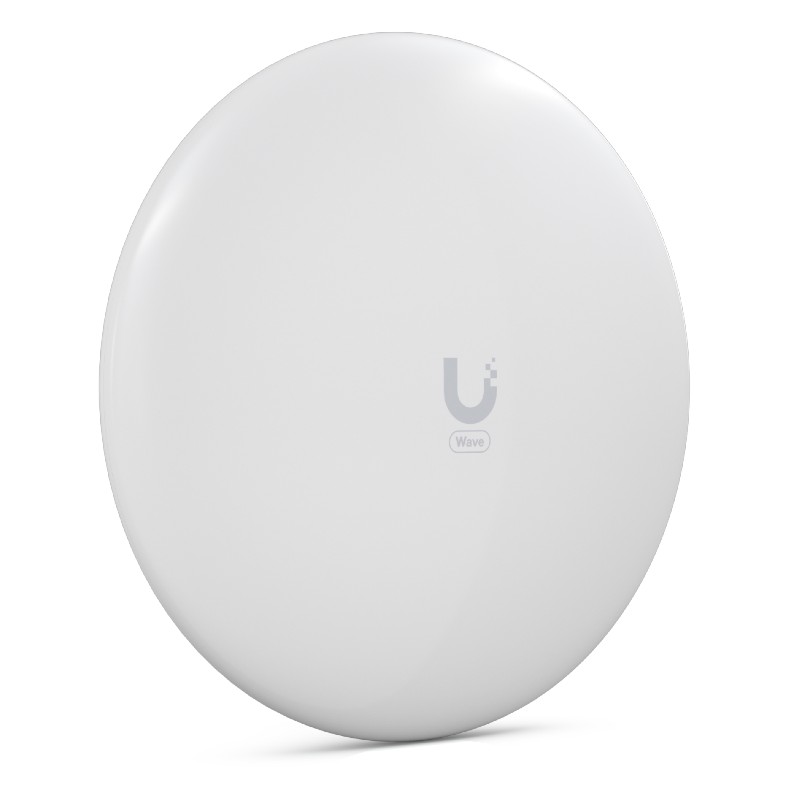

Wave-Nano - UISP Wave Nano 60 GHz PtMP station powered by Wave Technology.
Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex).
The Wave Nano is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.
Features:
-
5 GHz backup radio
-
Link range: up to 5 km
-
Router mode support
-
Integrated GPS antenna
-
Link planning support via ISP Design Center
|

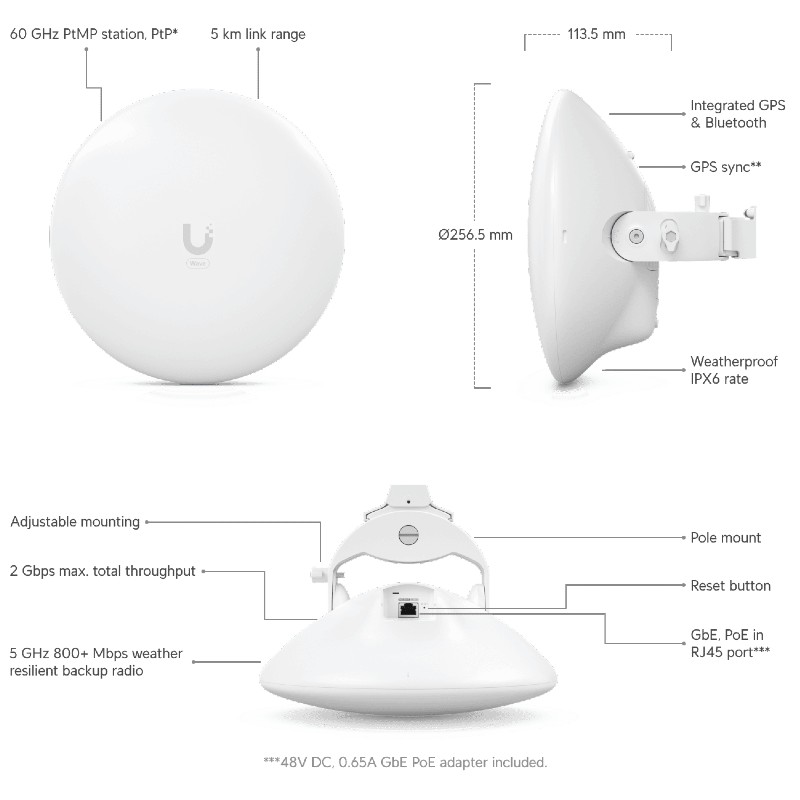

Mechanical |
|
Dimensions |
Ø256.5 x 113.5 mm |
|
Weight |
Without mount: 932 g
With mount: 1.2 kg |
|
Enclosure materials |
Aluminum alloy, UV stabilized plastic |
|
Mount materials |
Aluminum alloy, UV stabilized plastic |
|
Pole mount diameter |
25 to 63.5 mmon pipe outer diameter |
|
Wind loading |
127 N at 200 km/h |
|
Weatherproofing |
IPX6 |
|
Hardware |
|
Processor |
Dual ARM® Cortex®-A53 cores at 1 GHz |
|
Memory |
DDR3L 512 MB |
|

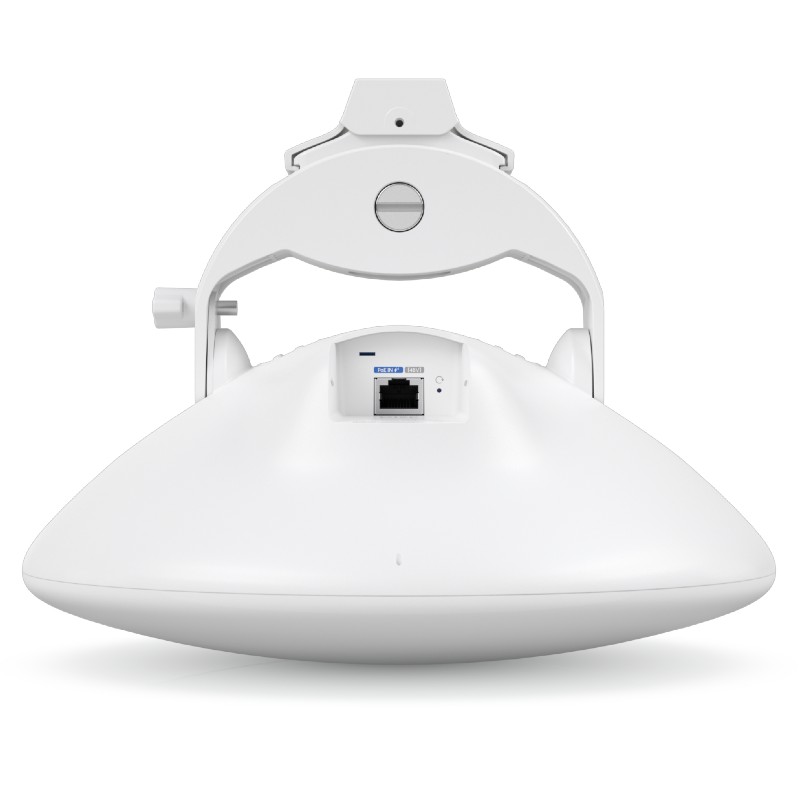

Networking interface |
(1) GbE RJ45 port |
|
Max. power consumption |
18W |
|
Power method |
48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)
24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) |
|
Power supply |
48V DC, 0.65A gigabit PoE adapter (included)
Can be powered by a UISP Router or UISP Switch |
|
GPS |
Yes |
|
Button |
Factory reset |
|
LEDs |
Power, Ethernet, GPS, link |
|
Operating temperature |
-40 to 60° C (-40 to 140° F) |
|
Operating humidity |
5 to 95% noncondensing |
|
Certifications |
FCC, IC, CE |
|
Software |
|
OS |
airOS® |
|
Operating mode |
PtMP station |
|
Ubiquiti specific features |
Wave AI, discovery protocol |
|
Services |
UISP, ping watchdog, NTP client, SNMP |
|
Tools |
Antenna alignment, discovery utility, ping, trace route, speed test |
|
Network |
Bridge/Router mode |
|
Software management |
Bluetooth management for easy setup over UISP app
WEB UI |
|
Minimum software requirements |
Any modern web browser/iOS™ or Android™ based smartphone |
|
System |
|
Total throughput |
2 Gbps (1 Gbps duplex) |
|
Maximum range |
5+ km |
|
Encryption |
WPA2-PSK (AES) |
|
RF |
|
Operating frequency* |
57 to 71 GHz
*Depends on regulatory region. |
|
Channel bandwidth |
2160, 1080 MHz |
|
Operating channels* |
58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880
66960, 68040, 69120, 70200 MHz *Depends on regulatory region. |
|
Modulation |
16QAM, QPSK |
|
Antenna gain |
41 dBi |
|
Azimuth and elevation beamwidth |
3 dB: 1°
6 dB: 1.4° |
|
Back-Up RF |
|
WiFi standard |
802.11ax (WiFi 6) |
|
Operating frequency* |
5150 - 5875 MHz *Depends on regulatory region. |
|
Channel bandwidth |
20, 40, 80 MHz |
|
Modulation |
BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3)
64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
|
Antenna gain |
19 dBi |
|
Polarization |
Dual-linear |
|
Cross-pol isolation |
20 dB |
|
Beamwidth |
Azimuth: 3 dB BW 14° to 17°
Elevation: 3 dB BW 14° to 17° |
|
Azimuth and elevation beamwidth |
3 dB: 14° to 17° |
|

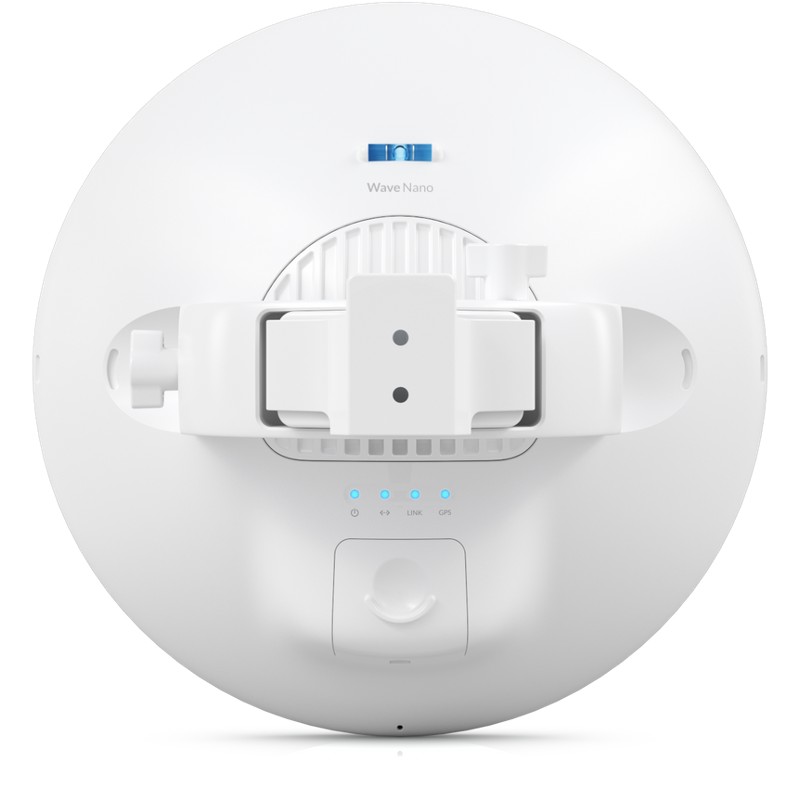

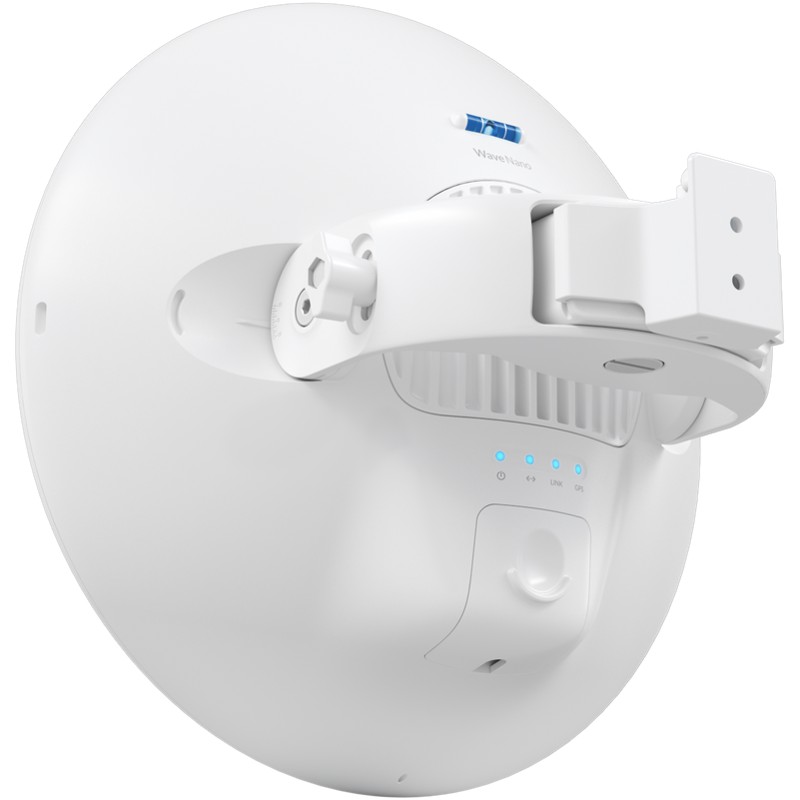

LEDs |
|
Power |
Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locate in progress
Blue/white: firmware upgrade in progress |
|
Ethernet |
Flashing blue: Ethernet traffic detected |
|
GPS |
Blue: receiving at least (4) GPS satellite signal |
|
Links |
White: 5GHz link
Blue: 60GHz link |

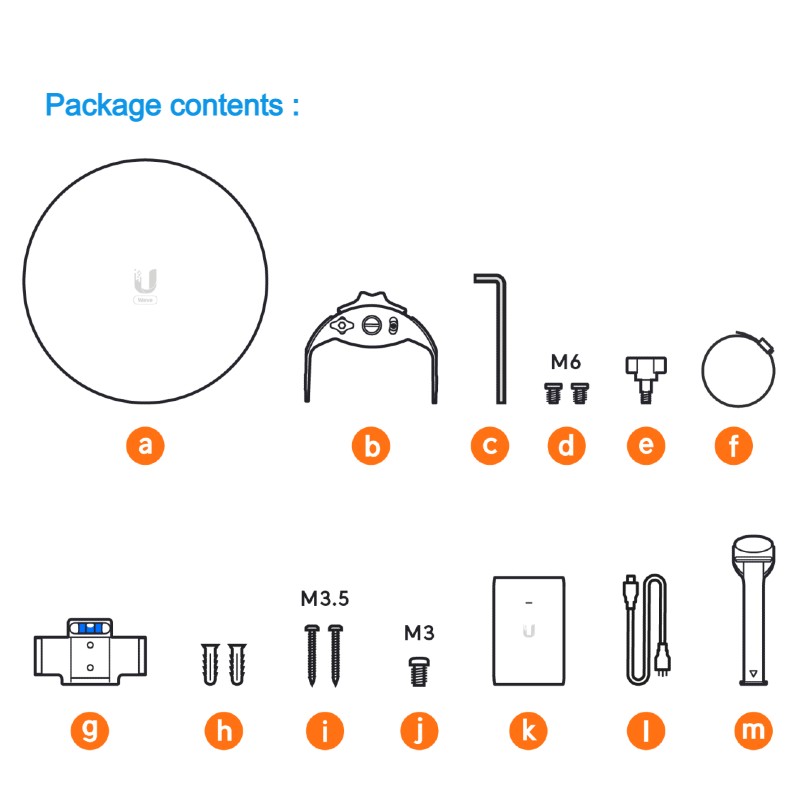

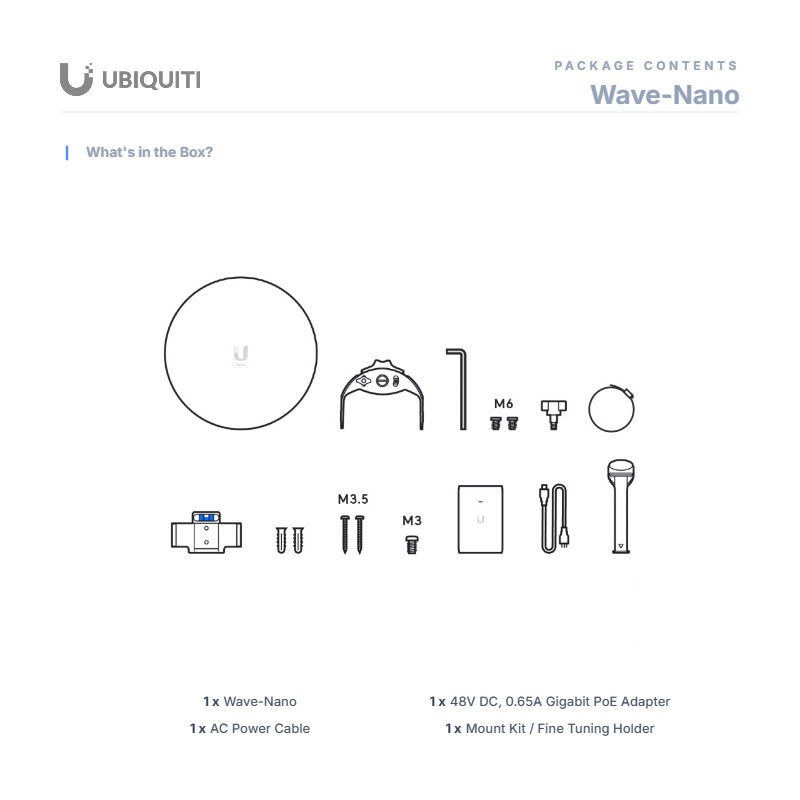

| Package Contents: |
|---|
| 1 x Wave-Nano
|
| 1 x 48V DC, 0.65A Gigabit PoE adapter
|
| 1 x AC Cable
|
| 1 x Alignment / mount KIT |
|
