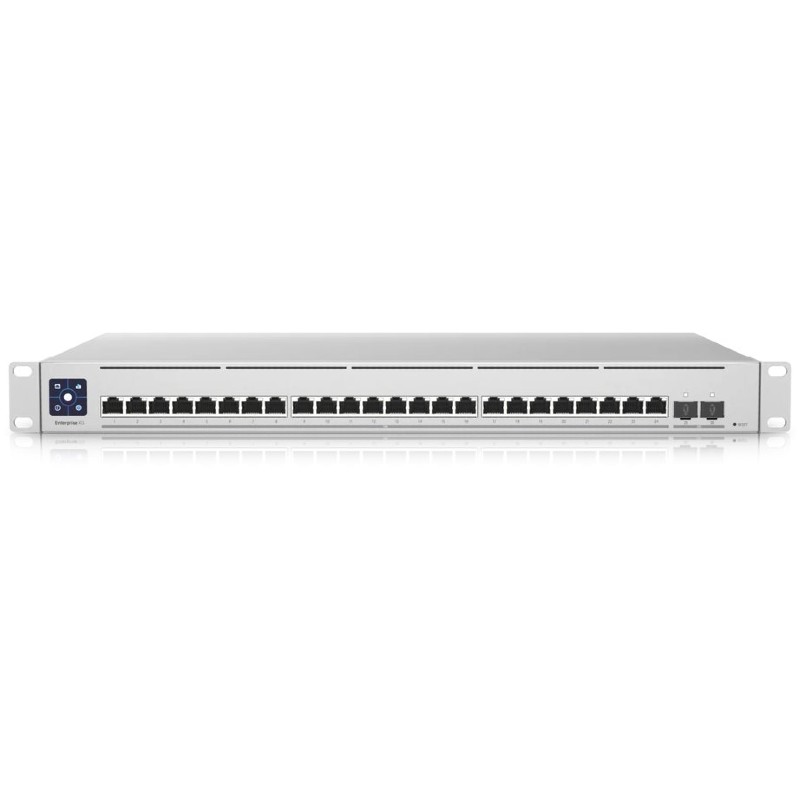

USW-EnterpriseXG-24 - UniFi Switch Enterprise XG 24
Enterprise XG24 Switch, (2) SFP28 Ports, (24) RJ45 10G Ports, 1.3'' touchscreen
A 24-port, Layer 3 switch.
Features:
-
(24) 10GbE RJ45 ports
-
(2) 25G SFP28 ports
-
(1) USP RPS DC input for power redundancy
-
1.3" LCM color touchscreen with AR switch management
Managed with the UniFi Network application: Version 6.1.67 and later
|
Mechanical |
|
Dimensions |
442 x 44 x 285 mm |
|
Weight |
Without mounting brackets: 4.47 kg
With mounting brackets: 4.57 kg |
|
Enclosure material |
SGCC steel |
|
Hardware |
|
Networking interface |
(24) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet |
|
Management interface |
Ethernet In-Band |
|
SFP28 interface |
(2) 25G SFP28 ports - When one port is at 25G all ports must be at 25G
The SFP28 ports only support mixed speed when all ports are at 1 Gbps or 10 Gbps. |
|
Total non-blocking throughput |
290 Gbps |
|
Switching capacity |
580 Gbps |
|
Forwarding rate |
431.52 Mpps |
|
Max. power consumption |
100W |
|

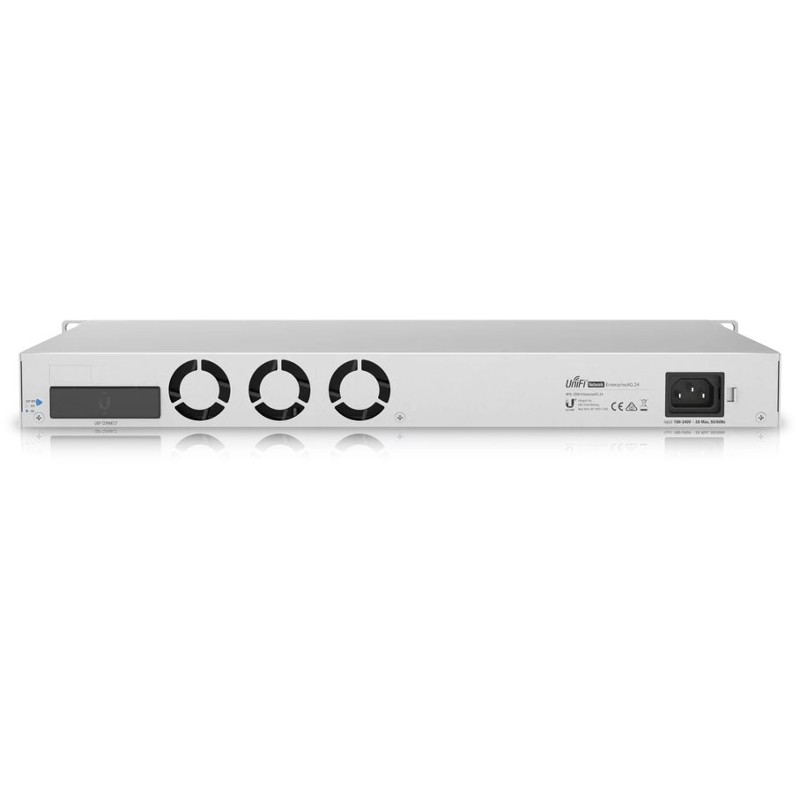

Power method |
(1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 8.7A |
|
Power supply |
AC/DC, internal, 100W |
|
Services |
SMB Layer 3 GbE switch |
|
ESD/EMP protection |
Air: ± 16kV, contact: ± 12kV |
|
LCM display |
(1) 1.3" LCM color touchscreen
Bootup animation: bootup in progress
Firmware upgrade icon: firmware upgrading |
|
Button |
Factory reset |
|
Operating temperature |
-5°C to 40°C |
|
Operating humidity |
10 to 95% noncondensing |
|
Certifications |
CE, FCC, IC |
|
LEDs |
|
System |
Status |
|
Ethernet |
Link/activity |
