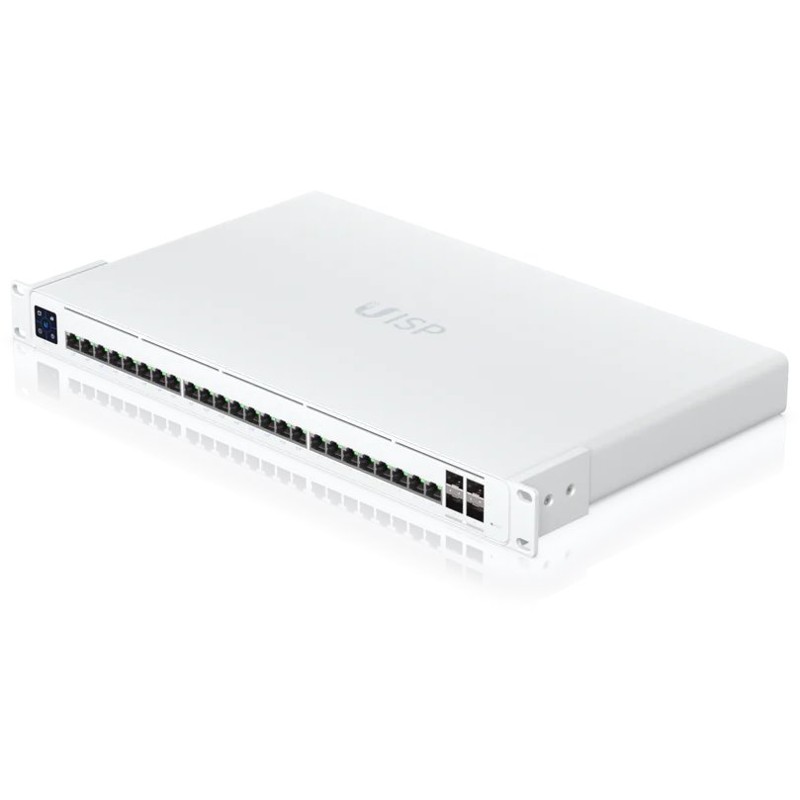

UISP-S-Pro - UISP Switch Pro
A 24-port, Layer 2 PoE switch designed for ISP networks.
Features:
-

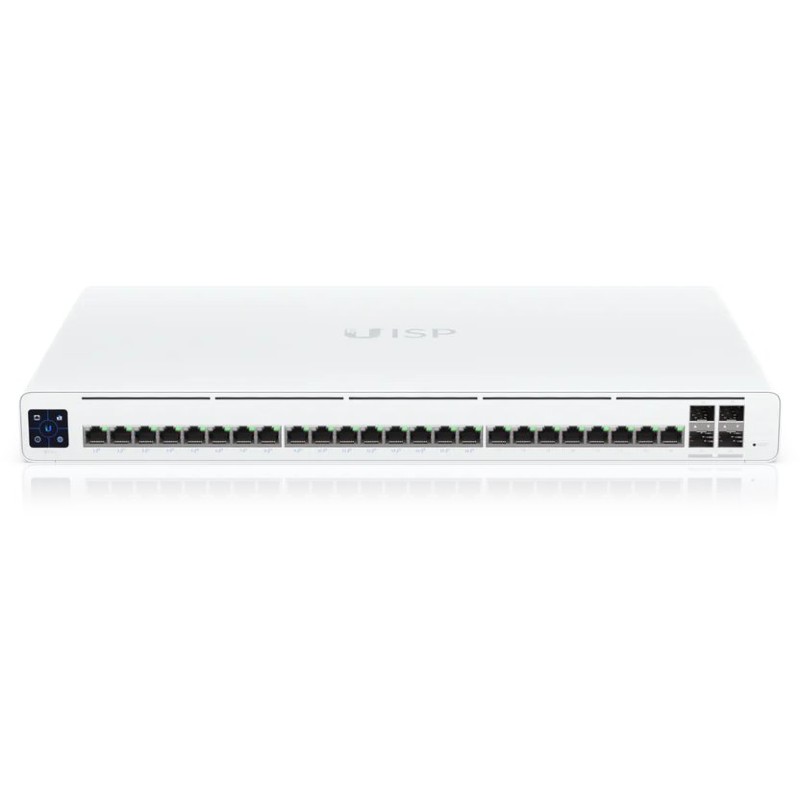

(24) GbE RJ45 ports, including (16) with 27V passive PoE output
-
(4) 10G SFP+ ports
-
220W (27V) total PoE availability, 15W/port (2-pair) / 30W/port (4-pair)
-
1.3" LCM color touchscreen
-
Easy Bluetooth setup with the UISP Mobile app
|
Mechanical |
|
Dimensions |
442.4 x 267.5 x 43.7mm |
|
Weight |
4 kg |
|
Enclosure materials |
SGCC steel, polycarbonate/acrylonitrile butadiene styrene |
|
Hardware |
|
Total non-blocking throughput |
64 Gbps |
|
Switching capacity |
128 Gbps |
|
Forwarding rate |
95.23 Mpps |
|
Networking interface |
(24) GbE RJ45 LAN ports
(4) 1/10G SFP+ ports |
|
Management interface |
Ethernet In-band
Bluetooth |
|

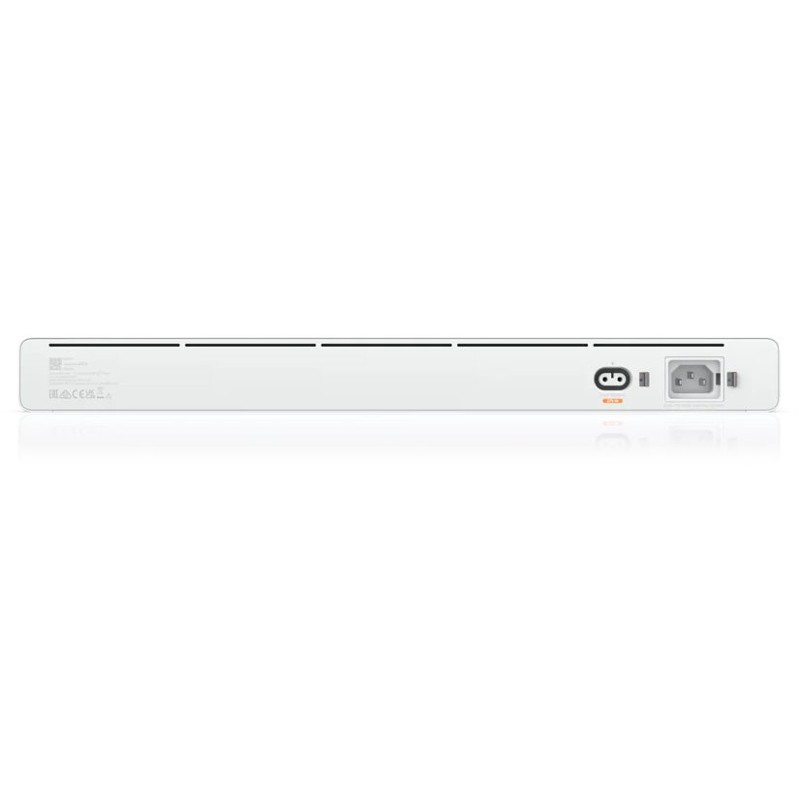

Power method |
(1) AC input, 100-240V AC, 4.4A Max., 50/60 Hz
(1) Power TransPort DC input 27V DC, 9.3A |
|
Power supply |
AC/DC, Internal, 250W |
|
Supported voltage range |
100—240V AC |
|
Max. power consumption |
30W (Excluding PoE output) |
|
ESD/EMP protection |
Air: ± 15 kV, contact: ± 8 kV |
|
LCM display |
(1) 1.3" touchscreen |
|
Operating temperature |
-10°C to 50°C |
|
Operating humidity |
5 to 95% noncondensing |
|
Certifications |
CE, FCC, IC |
|
PoE |
|
PoE interface |
Ports 1-16 @ 27V passive PoE
2-pair (Pins 4, 5+/7, 8-)
4-pair (Pins 1, 2, 4, 5+/3, 6, 7, 8-) |
|
Total available PoE |
220W |
|
Max. passive PoE wattage per port |
30W/27V DC |
|
Passive PoE voltage range |
27V DC |
|
LEDs |
|
RJ45 data ports |
PoE
Speed/link/activity |
|
SFP+ data ports |
Speed/link/activity |
