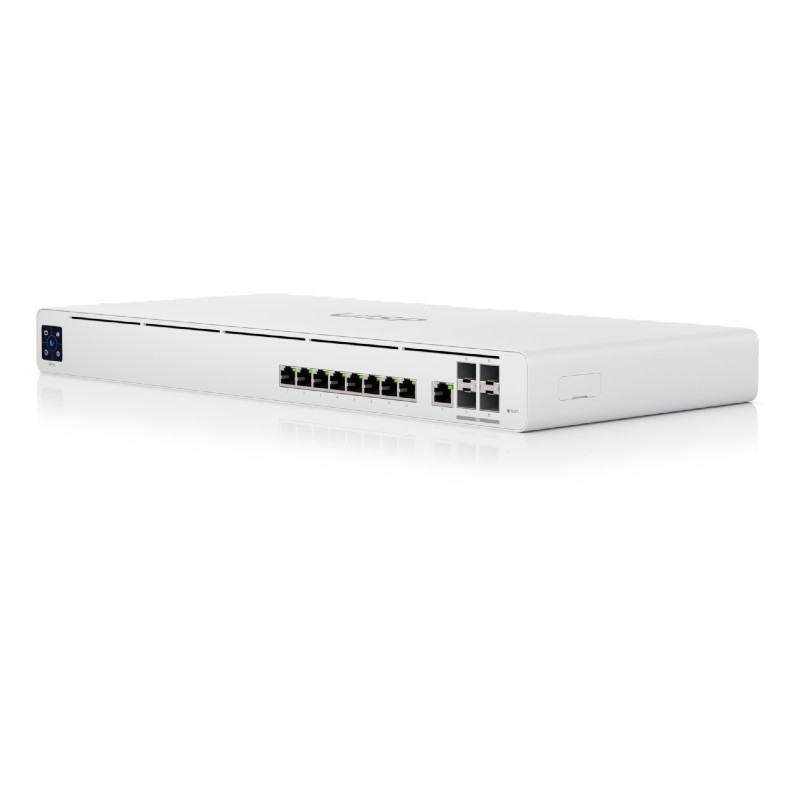

UISP-R-Pro - UISP Router Pro
10 GbE router designed for ISP applications.
-

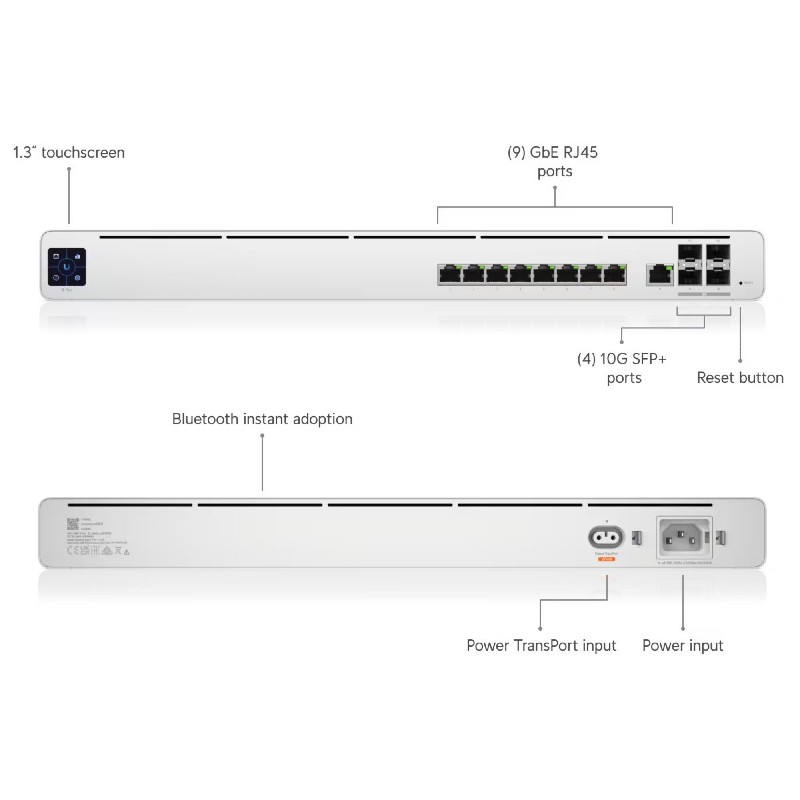

(9) GbE RJ45 ports
-
(4) 10G SFP+ ports
-
Integrated Layer 2 switch*
-
Up to 9,500 Mbps NAT throughput**
-
Traffic shaping functionality and automated customer suspension
-
Firewall and OSPF routing
-
Additional Power TransPort input for DC redundancy
*Ports 1-8, 10-13 can be configured for line-rate Layer 2 switching.
**Up to 2,250 Mbps with QoS enabled; up to 7,500 Mbps with IP Accounting enabled.
|
Mechanical |
|
Dimensions |

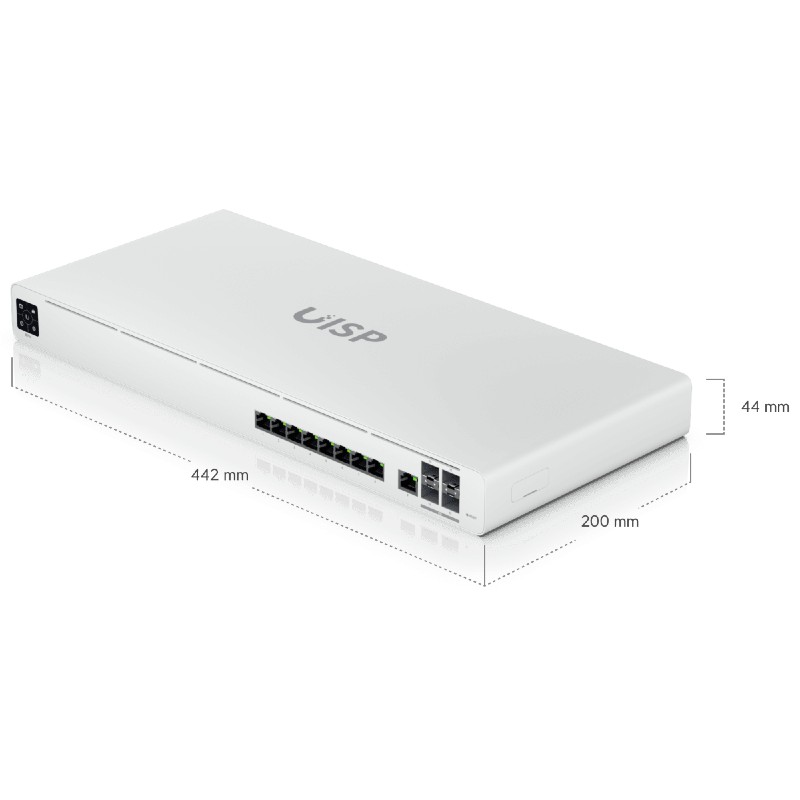

442.4 x 200 x 43.7 mm |
|
Weight |
3.3 kg |
|
Enclosure materials |
SGCC steel, polycarbonate/ABS |
|
Hardware |
|
Processor |
Quad-core ARM® Cortex®-A57 at 1.7 GHz |
|
Memory |
4 GB DDR4 |
|
Onboard |
16 GB eMMC |
|
Networking interface |
(8) GbE RJ45 LAN ports
(1) GbE RJ45 WAN port
(4) 1/10G SFP+ ports |
|
Management interface |
Ethernet
Bluetooth |
|
Power method |
(1) Universal AC input, 100—240V AC, 1.5A Max, 50/60 Hz
(1) Power TransPort DC input 27V DC, 2.2A |
|
Power supply |
AC/DC, Internal, 60W |
|
Supported voltage range |
100—240V AC |
|
Max. power consumption |
50W |
|
ESD/EMP protection |
Air: ± 15kV, contact: ± 8kV |
|
LCM display |
(1) 1.3" touchscreen |
|
Operating temperature |
-10°C to 50°C |
|
Operating humidity |
5 to 95% noncondensing |
|
Certifications |
CE, FCC, IC |
|
LEDs |
|
RJ45 data ports |
Speed/link/activity |
|
SFP+ data ports |
Speed/link/activity |
