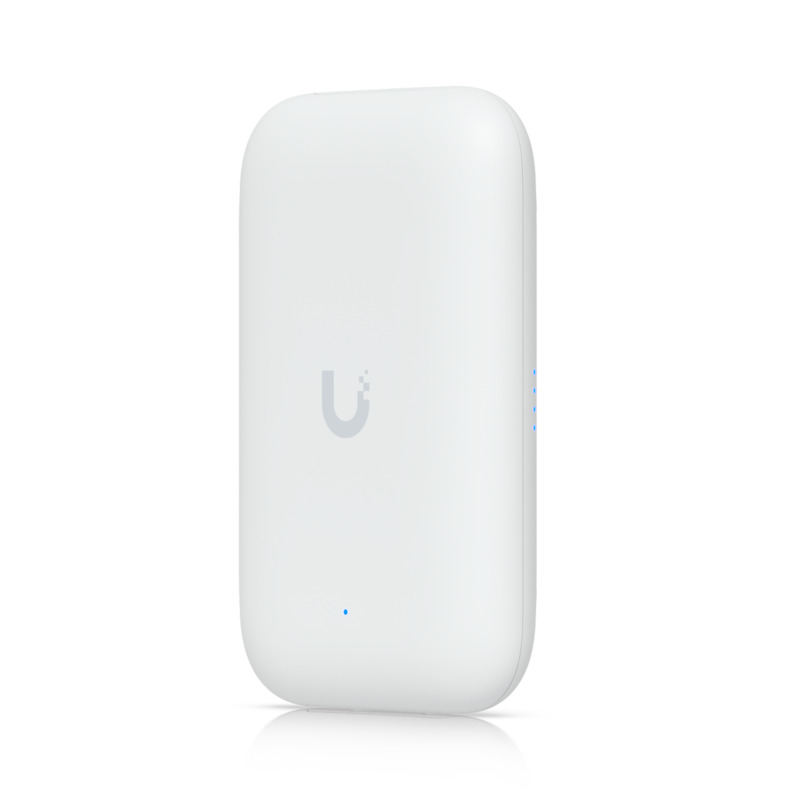

UK-Ultra - Swiss Army Knife Ultra
Incredibly compact, indoor/outdoor AP with versatile mounting options and long-range external antenna support.
-
WiFi 5 dual-radio
-
4 spatial streams
-
115 m² coverage with internal antenna
-
200+ connected devices
-
Powered using PoE
-
GbE uplink
-
Versatile wall, ceiling, and pole mounting
-

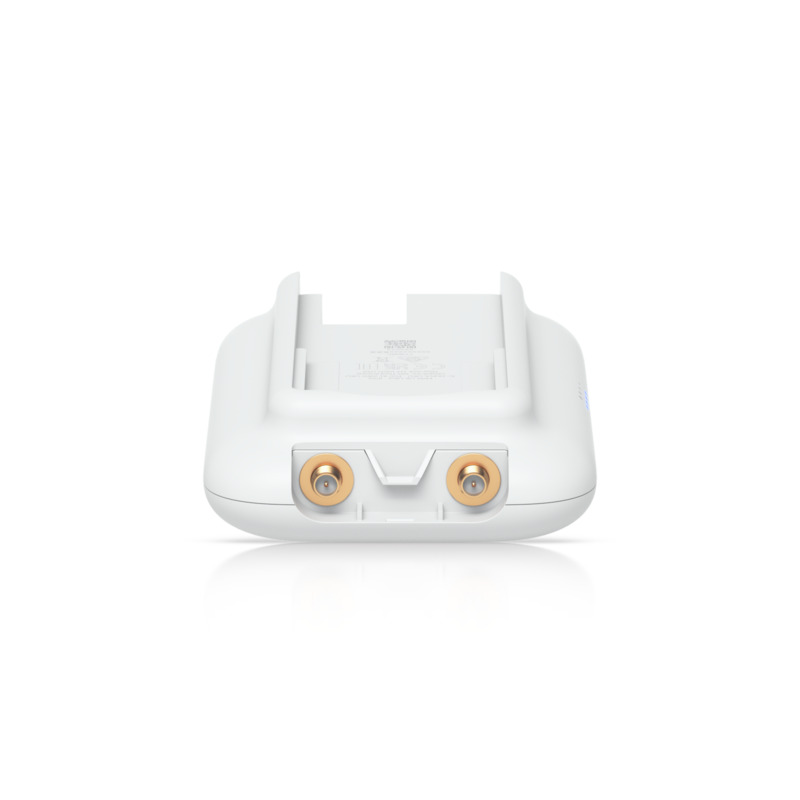

(2) RP-SMA connectors for optional external antennas
-
Weatherproof (outdoor exposed)
|
Mechanical |
|

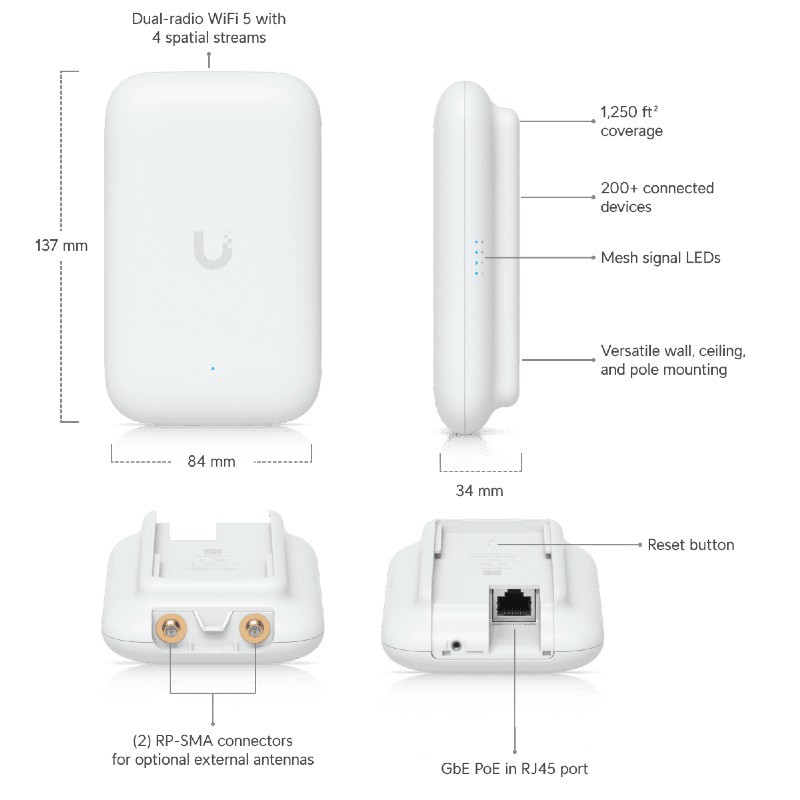

Dimensions |
137 x 84 x 34 mm |
|
Weight |
173 g |
|
Enclosure materials |
UV-stabilized polycarbonate |
|
Mount materials |
Polycarbonate, SGCC steel, plastic |
|
Pole mount diameter |
1~2" on pipe outer diameter |
|
Wind survivability |
33.2 N at 200 km/h |
|
Weatherproofing |
IPX6 |
|
Hardware |
|
Networking interface |

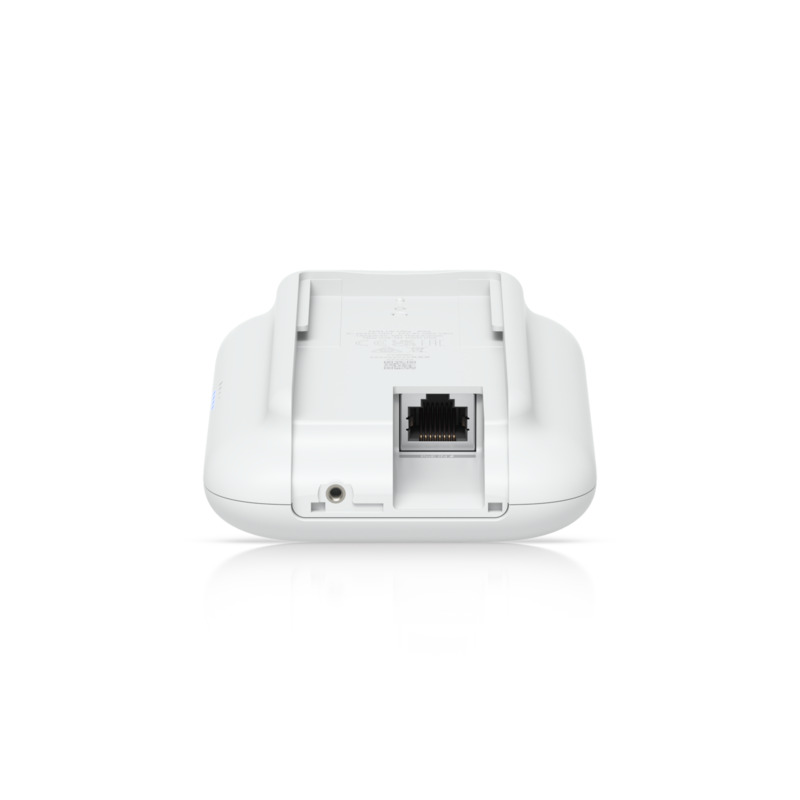

(1) GbE RJ45 port |
|
Management interface |
Ethernet |
|
Power method |
PoE |
|
Power supply |
UniFi PoE Switch |
|
Supported voltage range |
44—57V DC |
|
Max. power consumption |
8W |
Max. TX power
2.4 GHz
5 GHz |
20 dBm
20 dBm |
MIMO
2.4 GHz
5 GHz |
2 x 2
2 x 2 |
Throughput rate
2.4 GHz
5 GHz |
300 Mbps
866.7 Mbps |
Antenna gain
2.4 GHz
5 GHz |
4.7 dBi
6 dBi |
|
Antenna |
(1) Internal antenna
(2) RP-SMA connectors for optional external antennas |
|
LEDs |
(1) Power: white/blue
(4) Mesh signal: blue |
|
Button |
Factory reset |
|
Mounting |
Wall, ceiling, pole mount (Included) |
|
Operating temperature |
-40°C to 60°C |
|
Operating humidity |
5 to 95% noncondensing |
|
Certifications |
CE, FCC, IC |
|
Software |
|
WiFi standards |
802.11a/b/g/n/ac |
|
Wireless security |
WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
|
BSSID |
8 per radio |
|
VLAN |
802.1Q |
|
Advanced QoS |
Per-user rate limiting |
|
Guest traffic isolation |
Supported |
|
Concurrent clients |
200+ |
|
Supported Data Rates |
|
802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
802.11b |
1, 2, 5.5, 11 Mbps |
|
802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
802.11n (WiFi 4) |
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
|
802.11ac (WiFi 5) |
6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| Package Contents: |
|---|
| 1 x UAP-AC-M
|
| 1 x Pole Mounting Kit
|
| 0 x Without PoE |
|
