UISP-P - UISP Power
|
Mechanical |
|

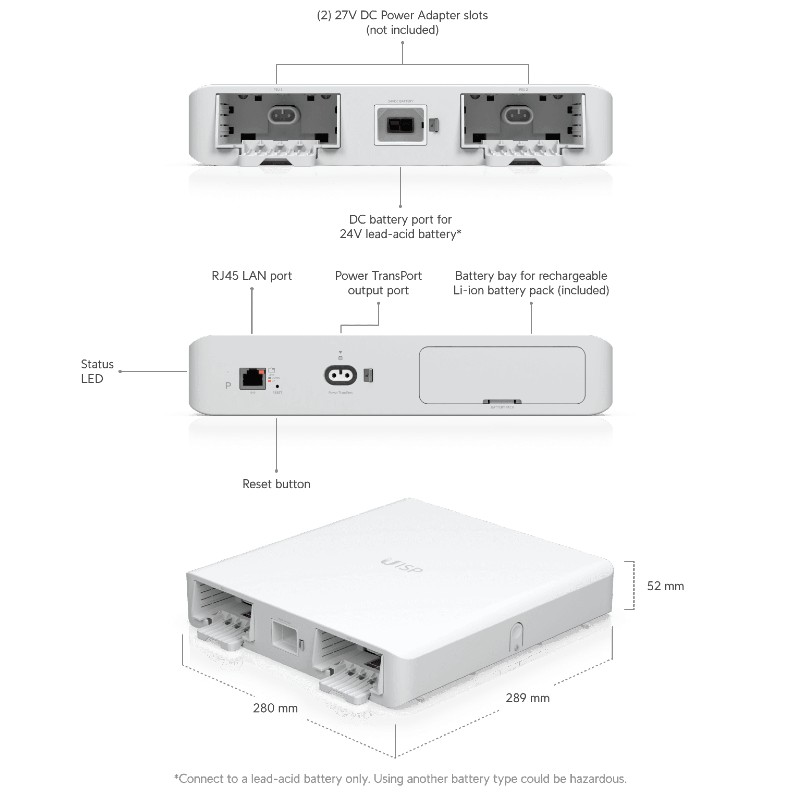

Dimensions |
289 x 280 x 52mm |
|
Weight |
1.4 kg |
|
Enclosure materials |
Polycarbonate, acrylonitrile butadiene styrene |
|
Hardware |
|
Networking interface |
(1) 10/100 MbE RJ45 LAN port |
|
Management interface |
Ethernet In-band
Bluetooth |
|
Power TransPort output |
27V DC, 100W (with 1 power adapter)
27V DC, 200W (with 2 power adapters) |
|
Power method |
(2) 27V DC, 4.4A power adapters (120W Power TransPort Adapter not included) |
|
Backup power |
(1) 25.2V DC, 7.93A rechargeable Li-ion battery pack (included)
(1) 24V DC, 8.33A lead acid battery input* (battery not included)
*Connect to a lead-acid battery only. Using another battery type could be hazardous. |
|
Max. power consumption |
3W (excludes Power TransPort output and battery charger) |
|
ESD/EMP protection |
Air: ± 15 kV, contact: ± 8 kV |
|
Ambient operating temperature |
-5°C to 40°C |
|
Ambient operating humidity |
5 to 95% non-condensing |
|
Certifications |
CE, FCC, IC |
|
LEDs |
|
System |
Status |
|
RJ45 data port |
Link/activity |
|
Power TransPort |
On/Off |
|
Compatibility |
|
Supported models |
UISP Console
UISP Router (installed with UISP Box)
UISP Router Pro
UISP Switch (installed with UISP Box)
UISP Switch Pro |
|
Software |
|
Management application |
UISP: Version 1.4.5 and later |
