UACC-Dual-Power-Injector - UISP Dual-Power Injector
Versatile dual power PoE adapter that delivers up to 100W on all 4 PoE pairs to power any two Wave models and provides 2.5 GbE connectivity.
The injector has a total output power of 100W and is powered by a Power TransPort cable with a voltage of 27V DC.
The injector can be mounted on a wall or on a mast with a diameter of 35 to 60 mm
The UACC-Dual-Power-Injector is IPX5 certified for outdoor use.
 |

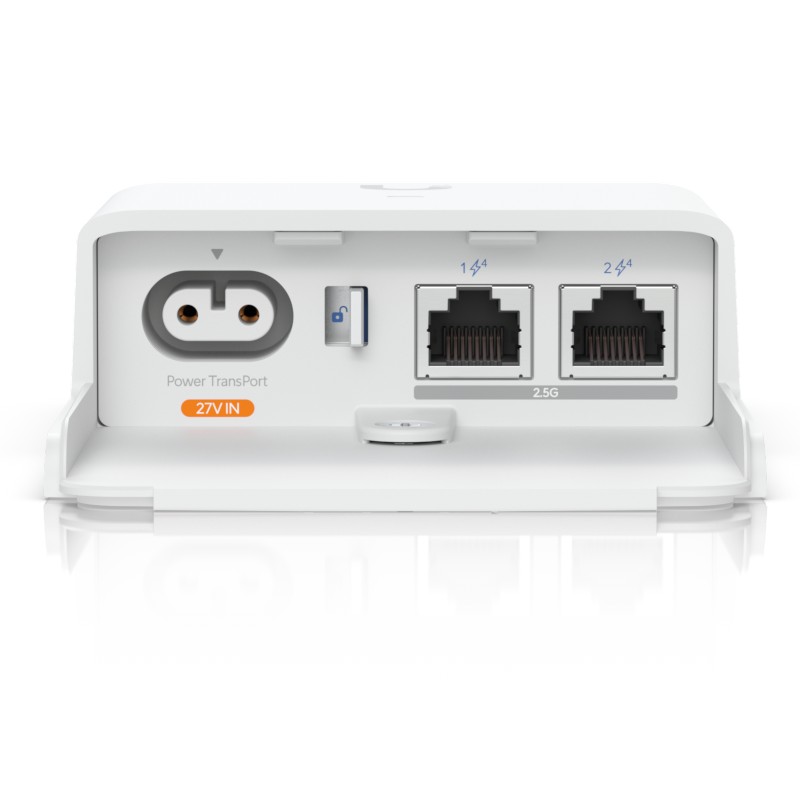

(2) 2.5G GbE RJ45 ports with 48V passive PoE |
 |

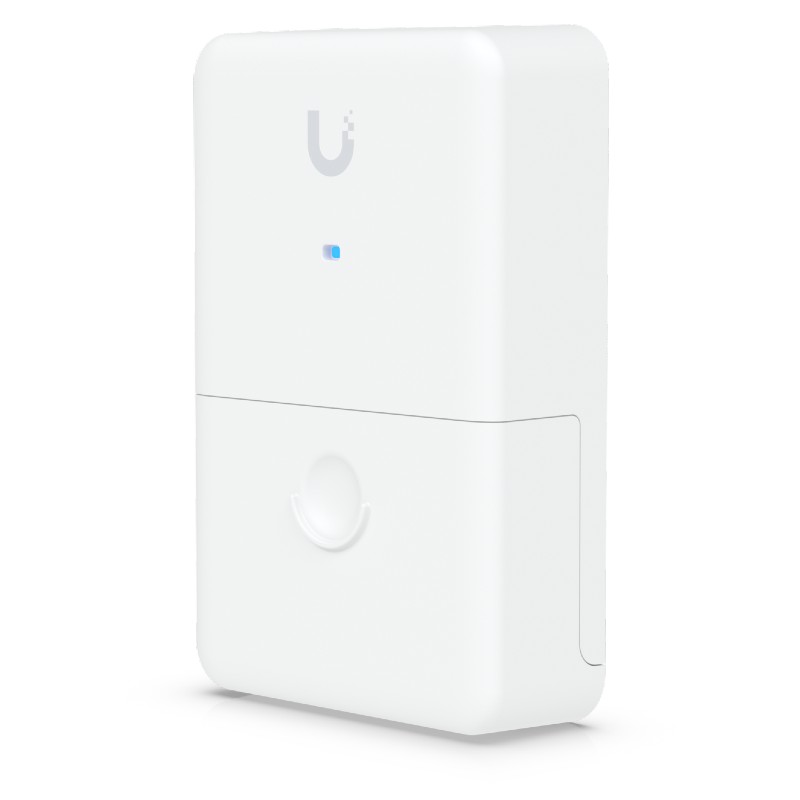

Weatherproof enclosure |
 |

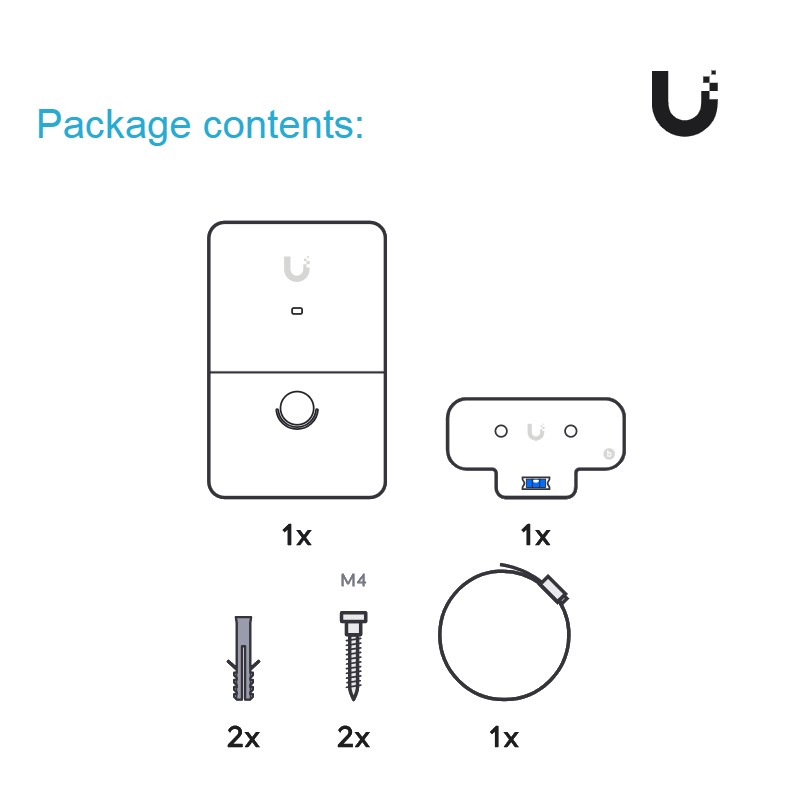

Pole or wall-mountable (kit included) |
 |
Supports all Wave models |
|
The Power TransPort Cable is sold separately. |
|
Specifications: |
|

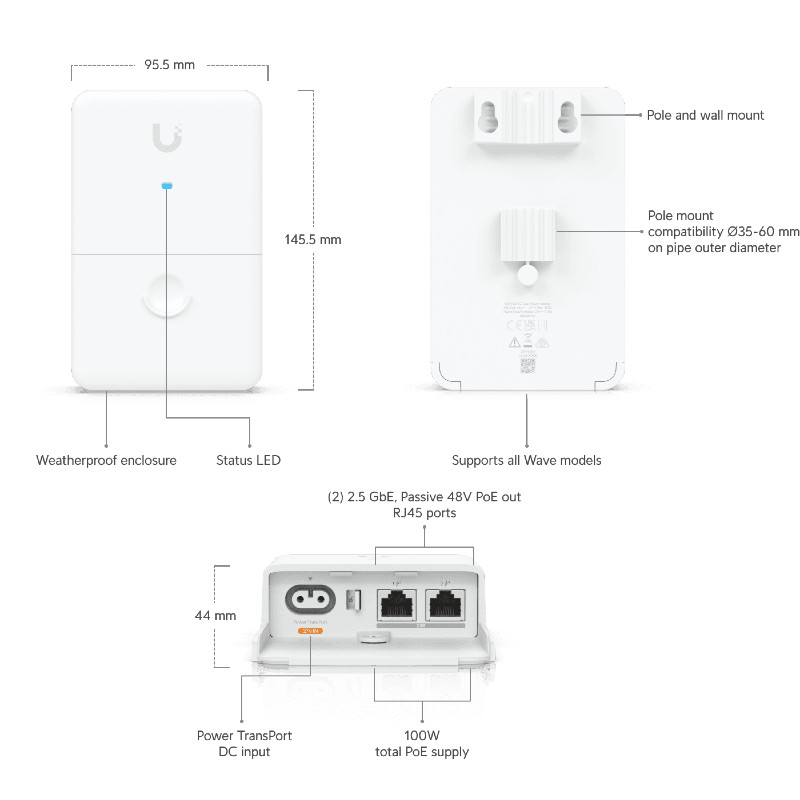

Dimensions |
145.5 x 95.5 x 44 mm |
|
Weight |
280 g |
|
Enclosure material |
UV-stabilized polycarbonate |
|
Wind survivability |
Up to 200 km/h |
|
Wind loading |
10.5 N at 200 km/h |
|

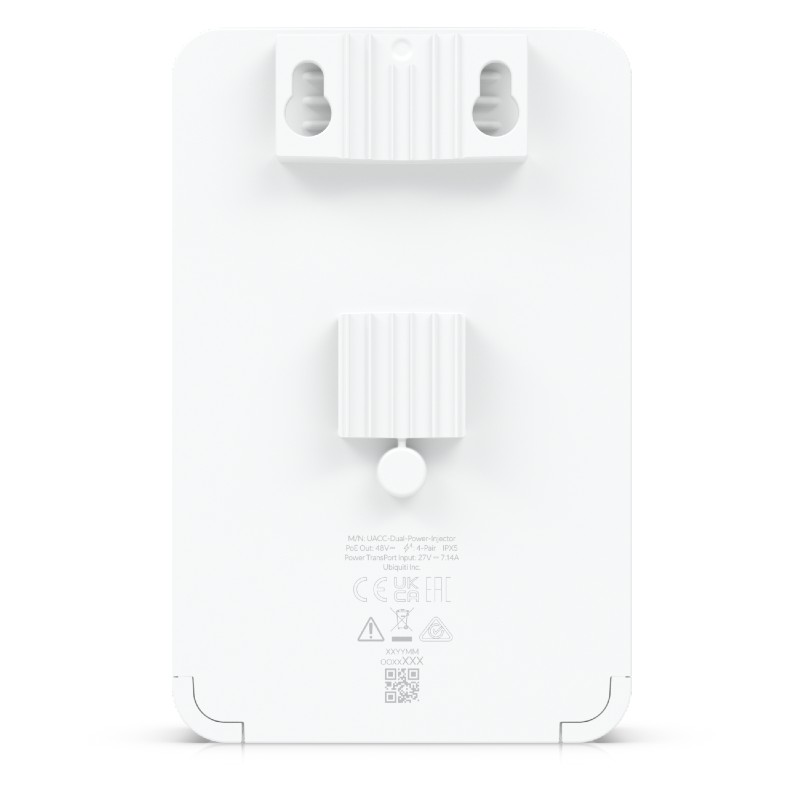

Mounting |
Pole mount: 35mm to 60mm OD
Wall mount |
|
Weatherproofing |
IPX5 |
|
Hardware: |
|
Networking interface |
(2) 2.5 GbE RJ45 ports |
|
Power method |
(1) Power TransPort DC input 27V DC, 4.44A |
|
Power supply |
120W Power TransPort Adapter (not included)
UISP Power
UISP Power Pro |
|
Output voltage |
48V DC |
|
Max. output |
Total 100W |
|
LEDs |
Blue: power On |
|
Ambient operating temperature |
-40°C to 60°C |
|
Ambient operating humidity |
5 to 95% noncondensing |
|
Certifications |
CE, FCC, IC |
