Specifications: |
|
Dimensions |

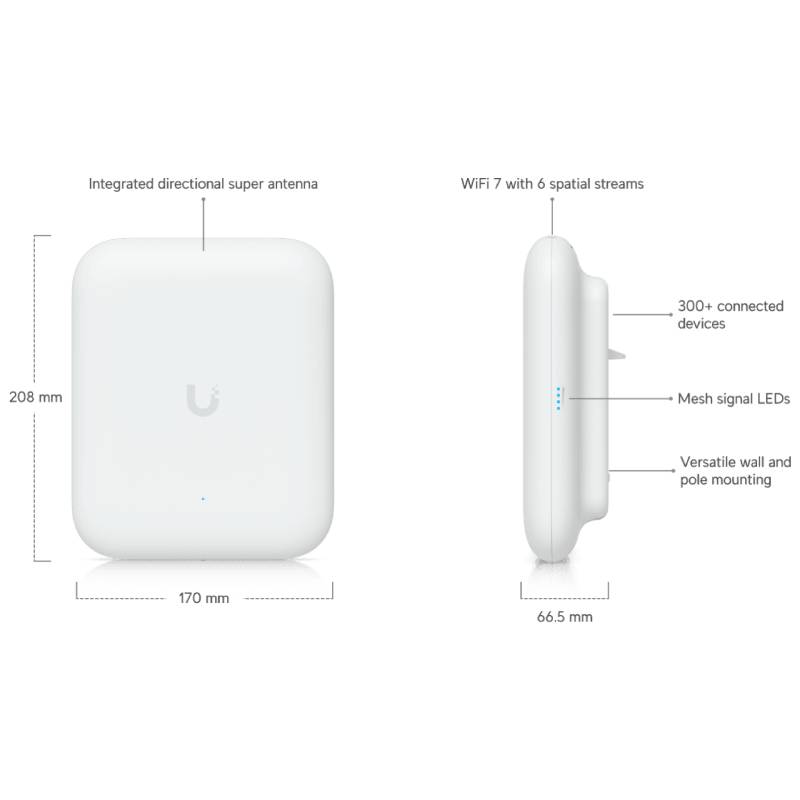

Without mount: 170 x 208 x 66.5 mm
With mount: 170 x 208 x 121.8 mm |
|
WiFi Standard |
WiFi 7 |
|
Spatial Streams |
6 |
|
Coverage Area |
465 m² |
|
Max. Client Count |
300+ |
|
Uplink |
2.5 GbE |
|
Mounting |

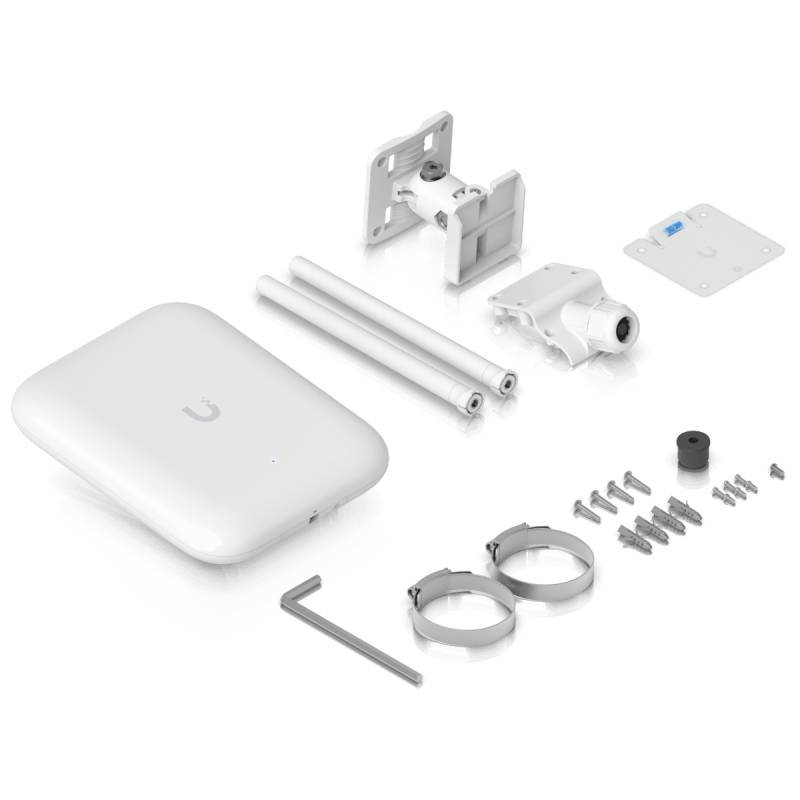

Wall, Pole (Mounts Included) |
|
Weatherproofing |
IPX6
IP67 (With cable-gland door kit) |
|
Power Method |
PoE+ |
|
Performance |
|
MIMO 6 GHz |
2 x 2 (DL/UL MU-MIMO) |
|
MIMO 5 GHz |
2 x 2 (DL/UL MU-MIMO) |
|
MIMO 2.4 GHz |
2 x 2 (DL/UL MU-MIMO) |
|
Max. Data Rate 6 GHz |
5.7 Gbps (BW320) |
|
Max. Data Rate 5 GHz |
4.3 Gbps (BW240) |
|
Max. Data Rate 2.4 GHz |
688 Mbps (BW40) |
|
Antenna Gain 6 GHz |
Directional internal: 10 dBi |
|
Antenna Gain 5 GHz |
Directional internal: 11 dBi
External omni: 8 dBi |
|
Antenna Gain 2.4 GHz |
Directional internal: 8 dBi
External omni: 6 dBi |
|
Max. TX Power 6 GHz |
26 dBm |
|
Max. TX Power 5 GHz |
26 dBm |
|
Max. TX Power 2.4 GHz |
23 dBm |
|
Max. BSSIDs |
8 per Radio |
|
Supported Data Rates 802.11be (WiFi 7) |
7.3 Mbps to 8.6 Gbps (MCS0-MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) |
|
Supported Data Rates 802.11ax (WiFi 6/6E) |
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
|
Supported Data Rates 802.11ax (WiFi 6) |
7.3 Mbps to 4.8 Gbps (MCS0-MCS11 NSS1/2/3/4, HE 20/40/80/160) |
|
Supported Data Rates 802.11ac (WiFi 5) |
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
|
Supported Data Rates 802.11n |
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
|
Features |
|
Wireless Meshing |
✓ |
|
Band Steering |
✓ |
|
802.11v BSS Transition Management |
✓ |
|
802.11r Fast Roaming |
✓ |
|
802.11k Radio Resource Management (RRM) |
✓ |
|
Advanced Radio Management |
✓ |
|
Passpoint (Hotspot 2.0) |
✓ |
|
Captive Hotspot Portal Custom Branding Landing Page |
✓ |
|
Voucher Authentication |
✓ |
|
Payment-Based Authentication |
✓ |
|
External Portal Server Support |
✓ |
|
Password Authentication |
✓ |
|
Guest Network Isolation |
✓ |
|
Private Pre-Shared Key (PPSK) |
✓ |
|
WiFi Speed Limiting |
✓ |
|
Client Device Isolation |
✓ |
|
WiFi Schedules |
✓ |
|
RADIUS over TLS (RadSec) |
✓ |
|
Dynamic RADIUS-assigned VLAN |
✓ |
|
Hardware |
|
Max. Power Consumption |
21W |
|
Supported Voltage Range |
42.5—57V DC |
|
Networking Interface |

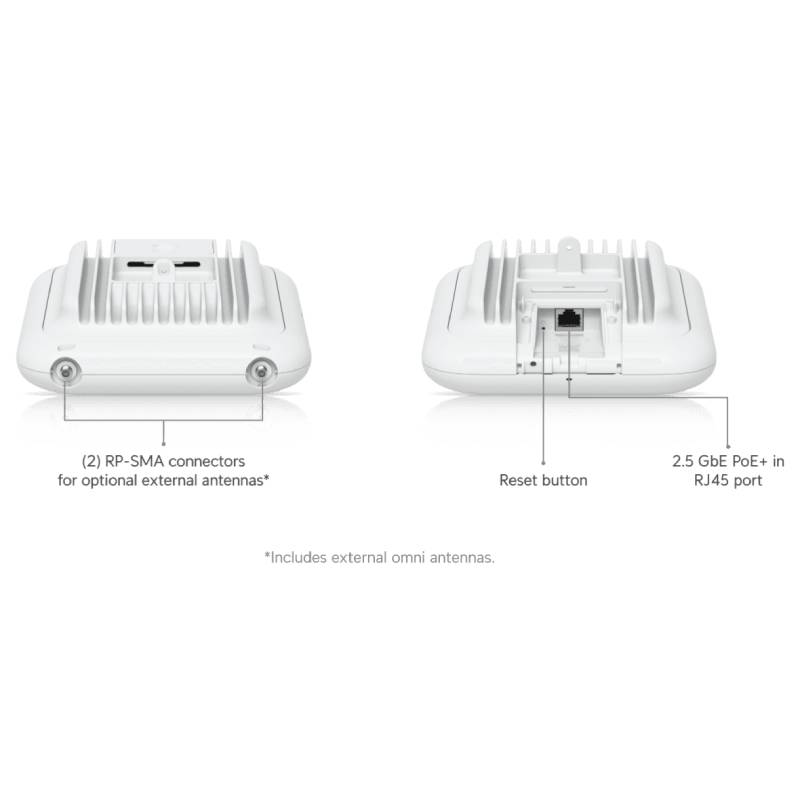

(1) 1/2.5 GbE RJ45 port |
|
Weight |
Device: 1.2 kg
With mount: 1.33 kg |
|
Wind Loading |
74.6 N at 200 km/h |
|
Pole Mount Diameter |
25–63.5 mm |
|
Management |
|
Enclosure Material |
UV-stabilized polycarbonate, aluminum alloy |
|
Mount Material |
UV-stabilized polycarbonate |
|
LEDs System |
(1) Power: White/Blue
(4) Mesh signal: Blue |
|
Certifications |
FCC, IC |
|
Ambient Operating Temperature |
-30°C to 60°C |
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
Software |
|
Application Requirements UniFi Network |
Version 9.0.114 and later |
|
UniFi OS |
iOS™ version 10.20.2 and later
Android™ version 10.21.7 and later |
