Ubiquiti USW-Flex-2.5G-8-PoE, Flex 2.5G UniFi Switch PoE (w/o Power Supply)
[3379][USW-Flex-2.5G-8-PoE]

Price: 171,25€

Prices exclude VAT

Available on:
2 Jul 2025
Expected Qty:2

UI Care 37,00€

Order Qty:

UPC:	810084695968

USW-Flex-2.5G-8-PoE - Flex 2.5G PoE

Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter.

AC power adapter (54V DC / 210W) sold separately.

Product Links:
Datasheet	Install Guide

Overview

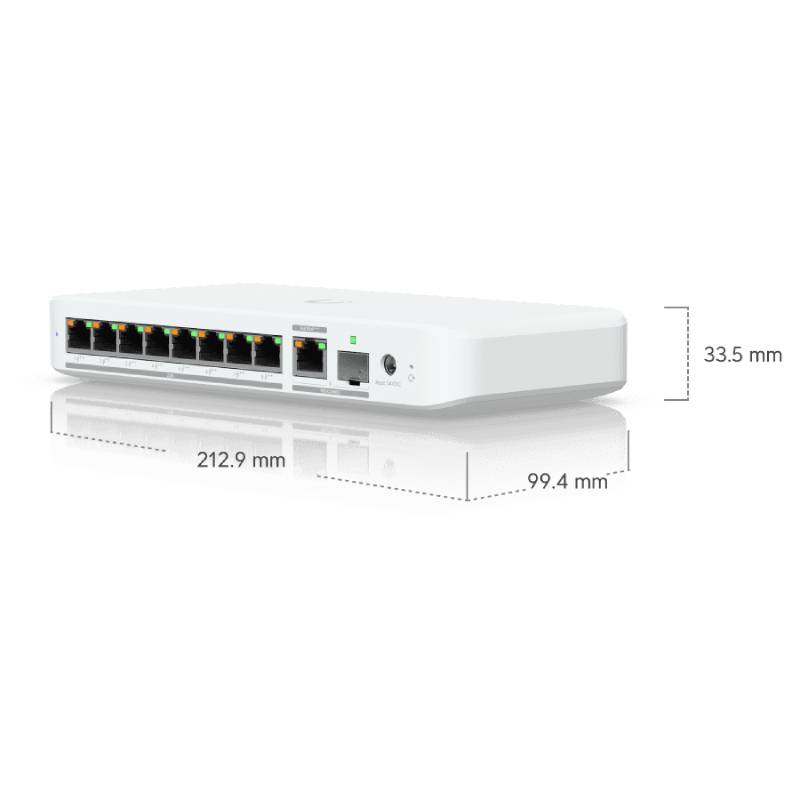

Dimensions	212.9 x 99.4 x 33.5 mm

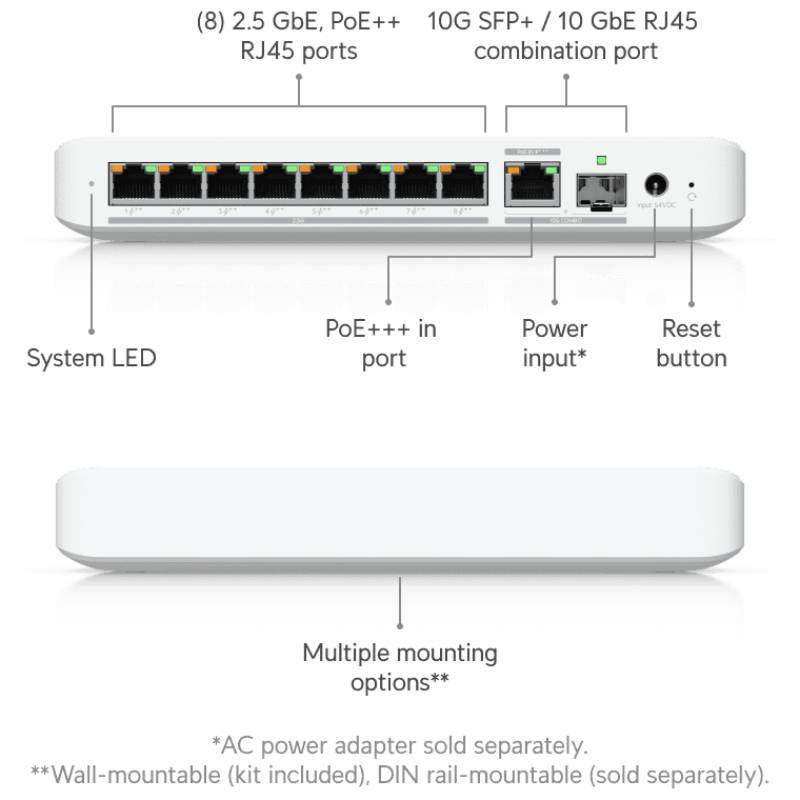

Port Layout	2.5 GbE RJ45: 8 (All PoE++) 10 GbE RJ45: 1 (PoE+++) 10G SFP+: 1
Max. PoE Output	Up to PoE++
Total PoE Availability	PoE+++ input: 76W PoE++ input: 46W PoE+ input: 16W 210W AC adapter input: 196W

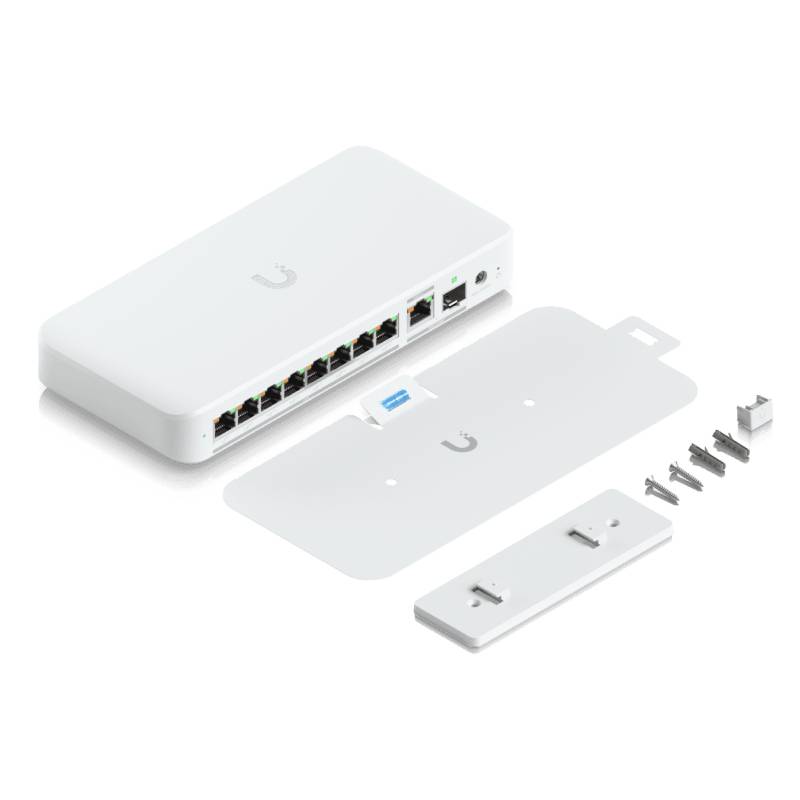

Form Factor	Compact Desktop, wall, DIN, magnetic
Performance
Switching Capacity	60 Gbps
Total Non-Blocking Throughput	30 Gbps
Forwarding Rate	45 Mpps
Supported VLANs	256
MAC Address Table Size	4,000
Layer 2 Features	STP & RSTP: Yes Egress Rate Limit: Yes Flow Control: Yes Storm Control: Yes Multicast & Broadcast Rate Limiting: Yes Port Isolation: Yes Port Mirroring: Yes Jumbo Frames: Yes Loop Protection: Yes
Hardware
PoE Ports	PoE++: 8
Max. PoE Wattage per Port by PSE	PoE: 15.4W PoE+: 32W PoE++: 64W
Max. Power Consumption	14W (Excluding PoE output) with PoE input 17W (Excluding PoE output) with AC adapter input 210W (Including PoE Output)
Power Method	(1) AC/DC adapter (NOT INCLUDED) (1) PoE+++
Power Input Method	DC Input PoE
Supported Voltage Range	50—57V DC/PoE
Management
Ethernet
Other
Weight	567 g
Enclosure Material	Polycarbonate
Mount Material	Polycarbonate
Ambient Operating Temperature	-20 to 45° C
Ambient Operating Humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
Software
Application Requirements	UniFi Network Version 9.0.114 and later

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	24 month(s)
