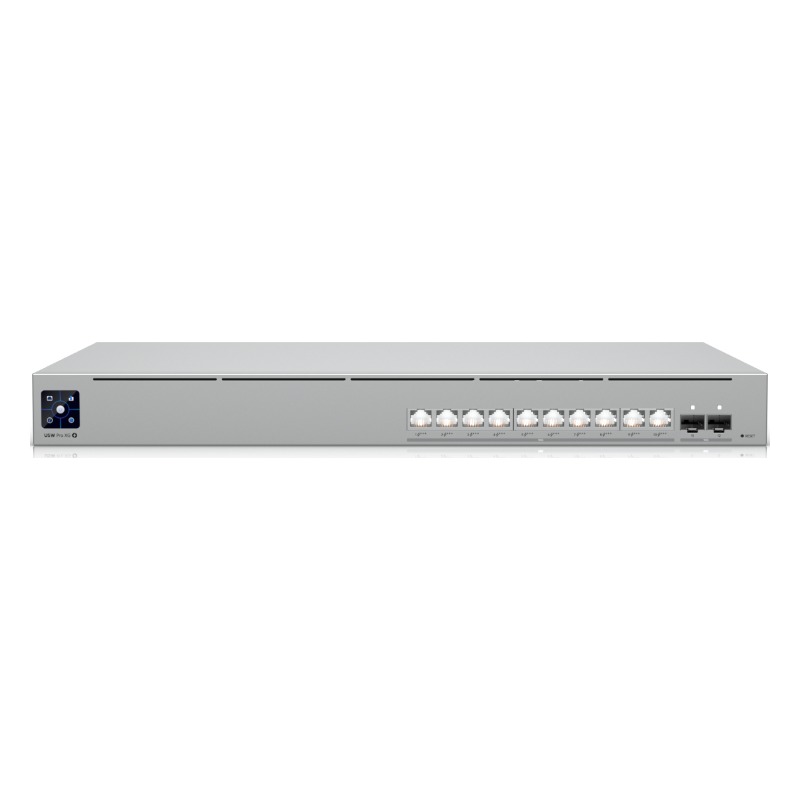

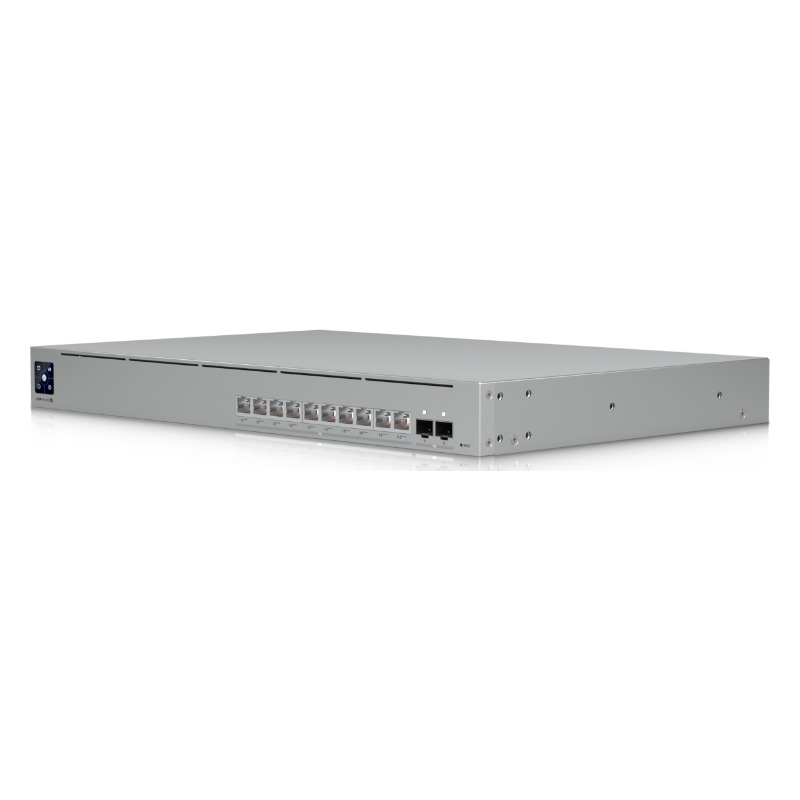

USW-Pro-XG-10-PoE - UniFi switch Pro XG 10 PoE (400W)
1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.
The USW‑Pro‑XG‑10‑PoE stands out as a high-end 10 GbE PoE+++ Layer 3 switch—delivering power, speed, and manageability for advanced networks.
Ideal for powering modern high-bandwidth and high-power PoE devices with ease.
Features:
-
10 × 10 GbE RJ45 PoE+++ ports (supports 100 Mb/1/2.5/5/10 GbE; up to 90 W per port) and 2 × 10G SFP+ uplink ports
-
Total PoE budget: 400 W — ideal for powering high-demand devices like Wi‑Fi 7 access points or AV equipment
-
Layer 3 switching (static & inter‑VLAN routing, DHCP server/relay) with robust performance: 240 Gbps switching, 179 Mpps forwarding
-
Etherlighting™ LED-lit ports for easy cable tracing and status indication
-
1.3″ touchscreen for local monitoring & management
-

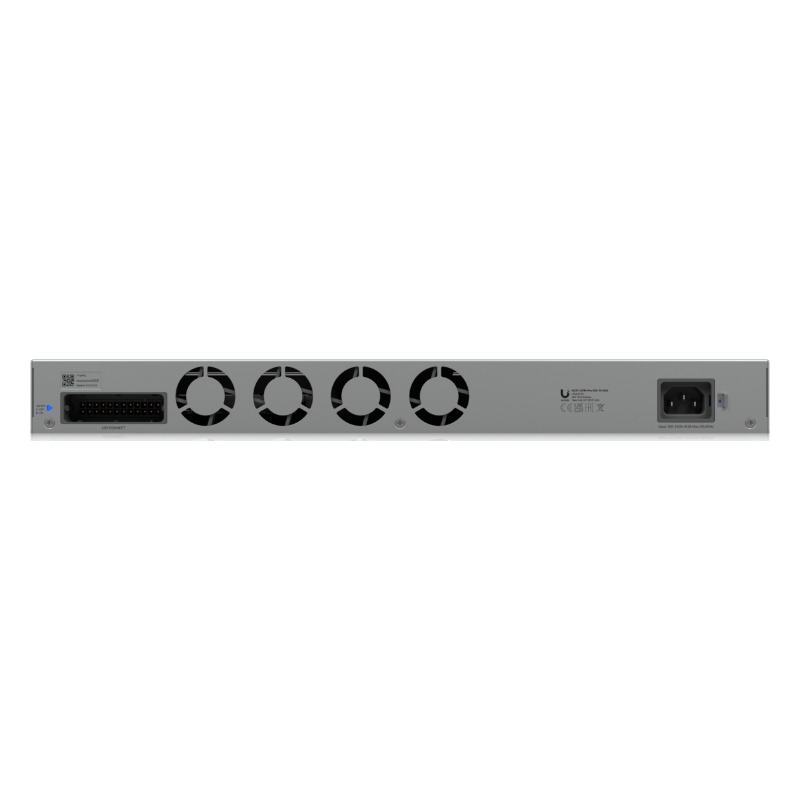

Rack-mount 1U form factor with internal 550 W PSU and optional DC RPS backup
|
Overview |
|
Dimensions |
442.4 x 285 x 44 mm |
|

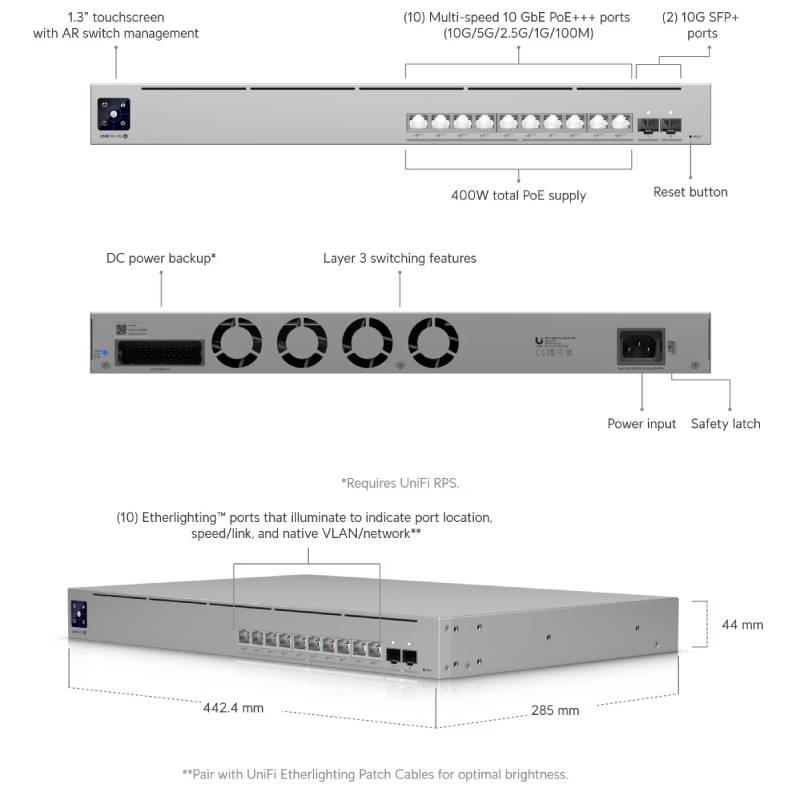

Port Layout |
10 GbE RJ45: 10 (All PoE+++)
(10G/5G/2.5G/1G/100M)
10G SFP+: 2 (10G/1G) |
|
Max. PoE Output |
Up to PoE+++ |
|
Total PoE Availability |
400W |
|
Redundancy |
DC Power Backup |
|
Layer 3 |
✓ |
|
Form Factor |
Rack mount (1U) |
|
Etherlighting™ |
✓ |
|
Performance |
|
Switching Capacity |
240 Gbps |
|
Total Non-Blocking Throughput |
120 Gbps |
|
Forwarding Rate |
179 Mpps |
|
Supported VLANs |
1,000 |
|
MAC Address Table Size |
32,000 |
|
L3 Table Size |
|
ARP Entries |
12,000 |
|
IPv4 Routes |
12,000 |
|
Packet Buffer Size |
2 MB |
|
Access Lists |
|
IPv4 |
128 |
|
MAC |
128 |
|
Layer 3 Features |
|
DHCP Server (Local Networks) |
✓ |
|
DHCP Relay |
✓ |
|
Inter-VLAN Routing (Local Networks) |
✓ |
|
Static Routing (Local Networks) |
✓ |
|
Layer 2 Features |
|
LACP Port Aggregation |
✓ |
|
STP & RSTP |
✓ |
|
QoS (DSCP) |
✓ |
|
Pro AV Profiles |
✓ |
|
Advanced IGMP Configuration |
✓ |
|
IGMP Snooping |
✓ |
|
802.1X Control |
✓ |
|
MAC-Based ACLs & Device Isolation |
✓ |
|
DHCP Snooping & Guarding |
✓ |
|
Egress Rate Limit |
✓ |
|
Flow Control |
✓ |
|
Storm Control |
✓ |
|
Multicast & Broadcast Rate Limiting |
✓ |
|
MAC Address Blocking |
✓ |
|
IP-Based ACLs & Network Isolation |
✓ |
|
MAC-Based Port Restriction |
✓ |
|
Port Isolation |
✓ |
|
Port Mirroring |
✓ |
|
Jumbo Frames |
✓ |
|
LLDP-MED |
✓ |
|
Voice VLAN |
✓ |
|
Loop Protection |
✓ |
|
Hardware |
|
PoE Ports |
PoE+++ (10 ports) |
|
Max. PoE Wattage per Port by PSE |
PoE: 15.4W, PoE+: 30W, PoE++: 60W, PoE+++: 90W |
|
Max. Power Consumption |
65W (excluding PoE), 520W (including PoE) |
|
Power Method |
AC input (100–240V, 50/60 Hz), USP RPS DC input |
|
Power Supply |
AC/DC internal 550W |
|
Supported Voltage Range |
100–240V AC |
|
Management Ethernet |
AR |
|
Weight |
Without brackets: 4.6 kg, With brackets: 4.7 kg |
|
Enclosure Material |
SGCC steel |
|
Mount Material |
SGCC steel |
|
Supported Rack Depth |
400–1200 mm |
|
LCM Display |
1.3" touchscreen |
|
ESD Protection |
Air: ±30kV, Contact: ±30kV |
|
Ambient Operating Temperature |
-5°C to 40°C |
|
Ambient Operating Humidity |
10 to 90% non-condensing |
|
Etherlighting™ Ethernet |
✓ |
|
Etherlighting™ SFP+ |
✓ |
|
LEDs - RPS |
✓ |
|
LEDs - System |
✓ |
|
NDAA Compliant |
✓ |
|
Certifications |
CE, FCC, IC |
|
Software |
|
Application Requirements |
UniFi Network Version 9.1.120 and later |

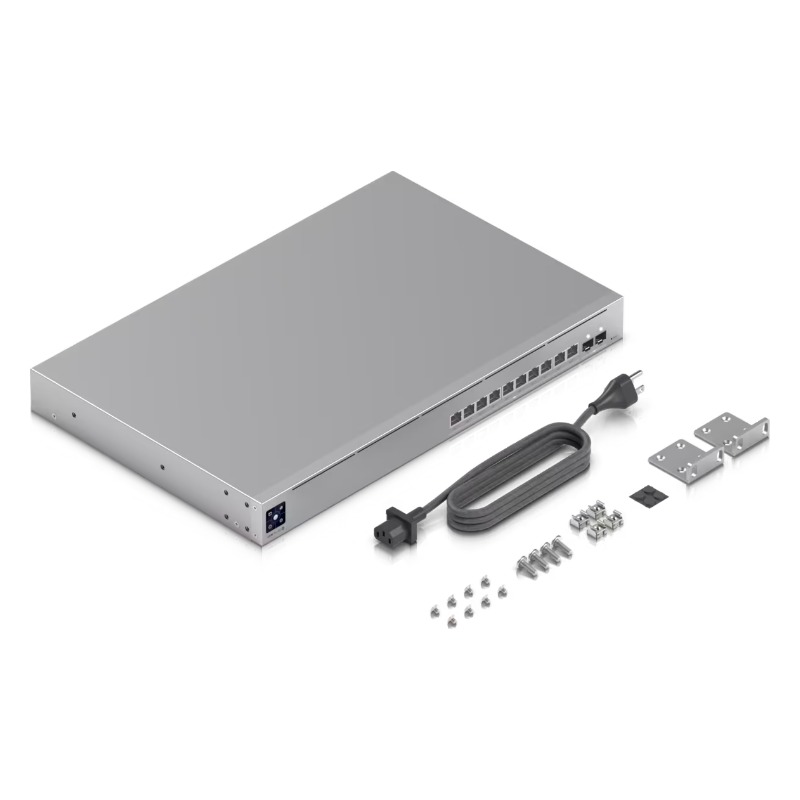

| Package Contents: |
|---|
| 1 x USW-Pro-XG-10-PoE
|
| 1 x Mountign KIT
|
| 1 x AC Cable - EU |
|
