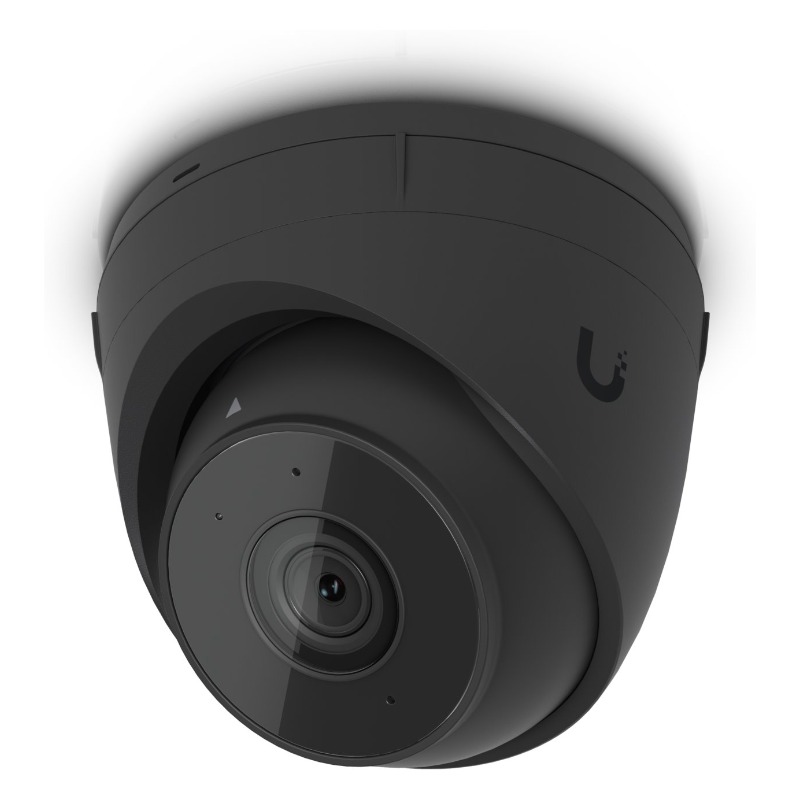

UVC-G5-Turret-Ultra-B - G5 Turret Ultra
Ultra-compact, tamper-resistant, and weatherproof 2K HD PoE camera with long-range night vision.
The Ubiquiti Networks G5 Ultra Black Turret Camera is a camera with 4MP resolution (2688 x 1512 px @ 30 fps), a large 1/2.4" sensor with a fixed lens (approximately 2.8 mm), and a 102° viewing angle.
It features a discreet IR LED for night vision up to 30m, 3-axis adjustment, and a microphone that can be disabled via software.
It has an IP66 water protection rating and IK04 anti-vandal protection.
It supports UniFi AI smart detection functions for monitoring the movement of people, animals, and vehicles.
The camera uses a single 10/100 Mbps LAN port with support for power via 802.3af PoE, with a maximum power consumption of only 4W.
|
Specifications: |
|
Dimensions |
Ø90 x 71.2 mm |
|
IR Night Vision |
30 m |
|
Smart Detections |
People, Vehicles, Animals |
|
Resolution |
2K |
|
Field of View |
H: 102.4°, V: 54.9°, D: 120.6° |
|
Audio |
Microphone |
|
Weatherproofing |
IP66 |
|
Tamper Resistance |
IK04 |
|
Mounting |
Wall, ceiling mount (Included)
Junction box, arm mount (Optional) |
|
Performance: |
|
Networking Interface |
10/100 MbE RJ45 port |
|
Video |
Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control
2DNR, 3DNR, NR by motion, masking, text overlay |
|
Max. Frame Rate |
30 FPS |
|
Resolution |
4MP 2688 x 1512 (16:9) |
|
Optics |
Sensor: 1/2.4" CMOS
Lens: Fixed focal length |
|
Night Mode |
Built-in IR LED illumination and IR cut filter |
|
Hardware: |
|
Max. Power Consumption |
4W |
|
Supported Voltage Range |
37—57V DC |
|
Power Method |
PoE |
|
Processor |
Dual-core Arm® Cortex®-A7 based chip |
|
Weight |
330 g |
|
Enclosure Material |
Aluminum alloy, UV-stabilized polycarbonate |
|
Mount Material |
Polycarbonate |
|
Button |
(1) Factory-reset |
|
Cable: |
|
Connector Type |
RJ45 |
|
Diameter |
5 mm |
|
Length
|
30 cm |
|
Jacket Material
|
Polycarbonate |
|
Jacket Dimensions
|
Ø20 x 70.6 mm |
|
Jacket Material
|
Thermoplastic elastomer, polycarbonate, silicone rubber |
|
Operating Temperature |
-30°C to 50°C |
|
Operating Humidity |
0 to 90% non-condensing |
|
NDAA Compliant |
✓ |
|
Certifications |
CE, FCC, IC |

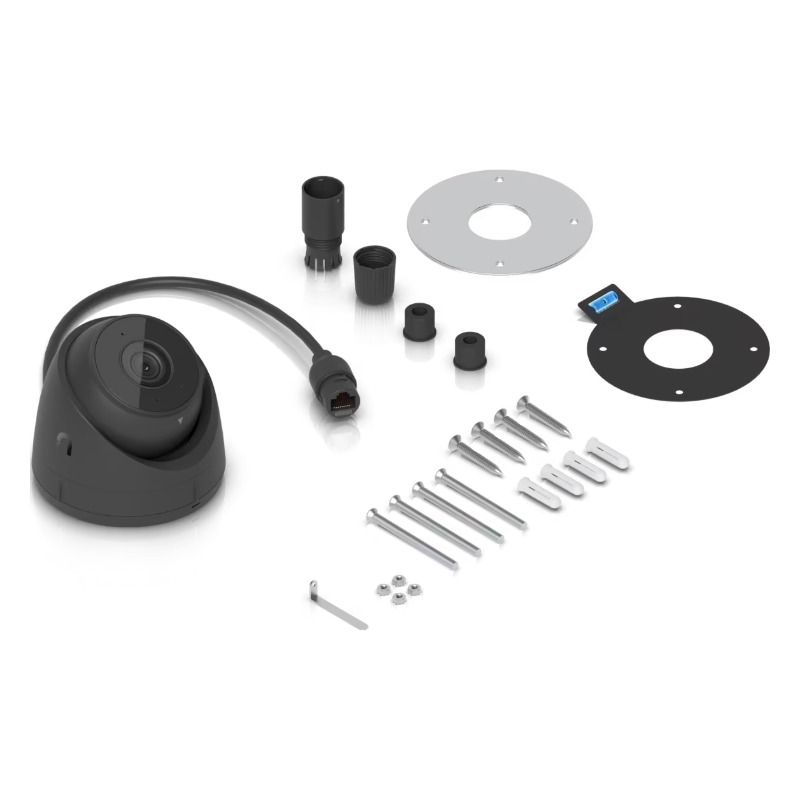

| Package Contents: |
|---|
| 1 x UVC-G5-Turret-Ultra-B
|
| 1 x Cable Gland
|
| 1 x Wall / Ceiling mount kit
|
| 0 x Without PoE |
|
