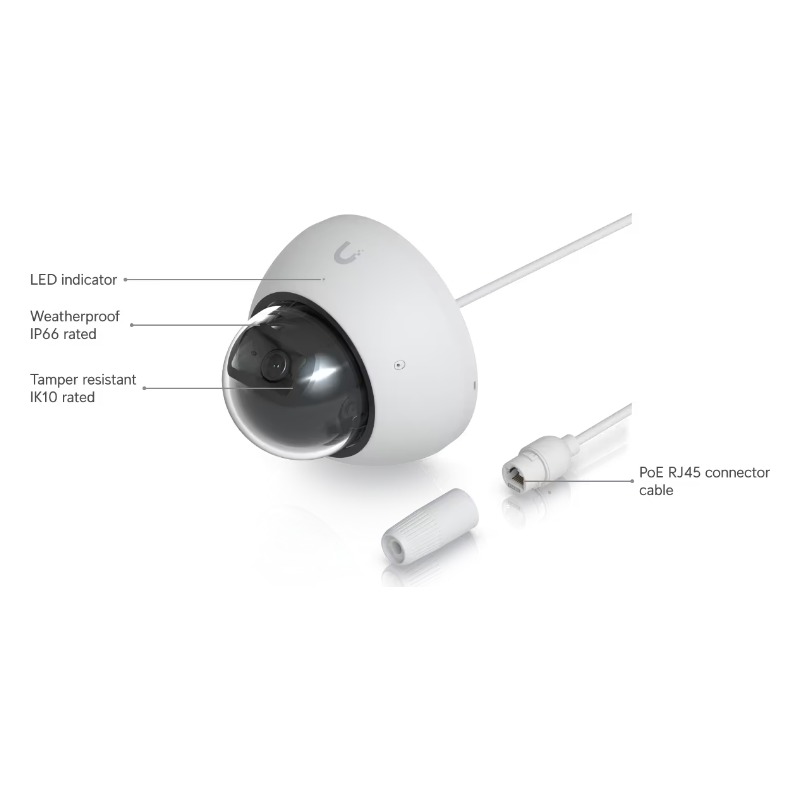

UVC-AI-Dome-W - AI Dome
All-weather, vandal-proof 4K PoE dome camera with enhanced AI capabilities and long-range IR night vision.
Advanced AI-powered UV-C sterilization dome designed for rapid and effective disinfection of air and surfaces.
Compact and durable, it ensures reliable germicidal protection in homes, offices, and professional spaces.
|
Overview |
|
Dimensions |
Ø118 x 90.8 mm |
|
IR Night Vision |
40 m |
|
Recognition |
Face, LPR, People, Vehicles, Animals |
|
Resolution |
4K |
|
Field of View |
H: 109.9°, V: 56.7°, D: 134.1° |
|
Audio |
Microphone |
|
Weatherproofing |
IP66 |
|
Tamper Resistance |
IK10 |
|
Mounting |
Arm, ceiling, pendant, wall mount, junction box |
|
Performance |
|
Networking Interface |
GbE RJ45 port |
|
Image Settings |
Color, brightness, sharpness, contrast, white balance, exposure control
2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
|
Max. Frame Rate |
30 FPS |
|
Resolution |
8MP 3840 x 2160 (16:9) |
|
Sensor |
1/1.8" 8MP |
|
Lens |
Fixed focal length |
|
Night Mode |
Built-in IR LED illumination and IR cut filter |
|
Hardware |
|
Max. Power Consumption |
10W |
|
Supported Voltage Range |
42.5—57V DC |
|
Power Method |
PoE |
|
Processor |
Quad-core Arm® Cortex®-A53 based chip |
|
Weight |
700 g |
|
Enclosure Material |
Aluminum alloy, polycarbonate |
|
Mount Material |
Surface mount: polycarbonate |
|
Expansion Slot |
MicroSD Card |
|
Button |
(1) Factory-reset |
|
Cable |
|
Cable Connector Type |
RJ45 |
|
Cable Diameter |
4.5 mm |
|
Cable Length |
30 cm |
|
Jacket Material |
Thermoplastic elastomer |
|
Jacket Enclosure Dimensions |
Ø20 x 70.6 mm |
|
Jacket Enclosure Material |
Thermoplastic elastomer, polycarbonate, silicone rubber |
|
Operating Conditions |
|
Ambient Operating Temperature |
-30°C to 50°C |
|
Ambient Operating Humidity |
0 to 90% non condensing |
|
Compliance & Certifications |
|
NDAA Compliant |
✓ |
|
Certifications |
CE, FCC, IC |

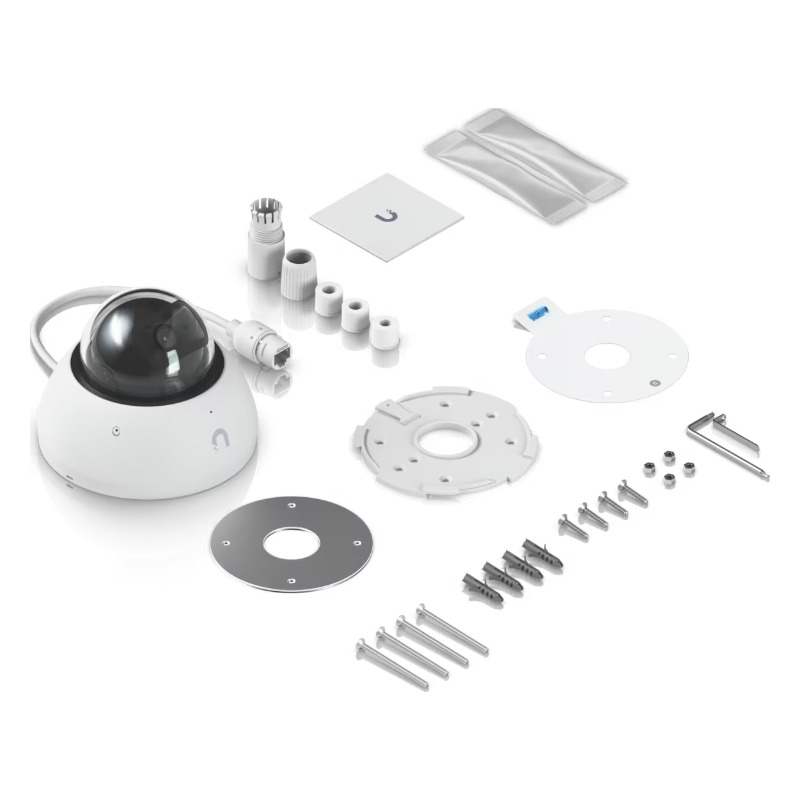

| Package Contents: |
|---|
| 1 x UVC-AI-Dome-W White
|
| 1 x Cable Gland White
|
| 1 x Wall / Ceiling Mounting Kit
|
| 0 x Without PoE |
|
