Ubiquiti Networks » UACC-ETH-SP-DIN
Ubiquiti UACC-ETH-SP-DIN, Ethernet Surge Protection
[3570][UACC-ETH-SP-DIN]
Price: 25,32€
 Order or Qty  Price
 > 500€  5+   25,07€
 > 1000€  10+   24,81€
 > 2000€  20+   24,56€
 > 5000€  40+   24,31€
 > 10000€  100+   24,05€
Prices exclude VAT

Ubiquiti UACC-ETH-SP-DIN, Ethernet Surge Protection
In Stock: 2

Available quantity within
3-5 working days: 21
Order Qty:
UPC:810177161844

UACC-ETH-SP-DIN - Ethernet Surge Protection

Bidirectional protection for up to 10 GbE, PoE++, and 20kA surge discharge for indoor installation.

Wall/DIN rail mount
Multiple grounding points

Product Links:
Datasheet Datasheet   Installation Installation

Mechanical
Dimensions 89 x 25.5 x 37.4 mm
Weight 74 g
Enclosure Material Polycarbonate, SGCC steel
Hardware
Networking Interface (2) RJ45 female connectors
DC Spark-Over Voltage 90V @ 100V/s
Max. Impulse Spark-Over Voltage 600V @ 1kV/µs
Discharge Current 20kA
Insulation Max. Resistance: 1G ohm @ 50V
Max. Capacitance: 1.0 pF @ 1 MHz
Data Line Protection Up to 10 Gbps
PoE Support ✓
ESD/EMP Protection Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
Ambient Operating Temperature -40° to +80° C
Ambient Operating Humidity 10 to 90% noncondensing

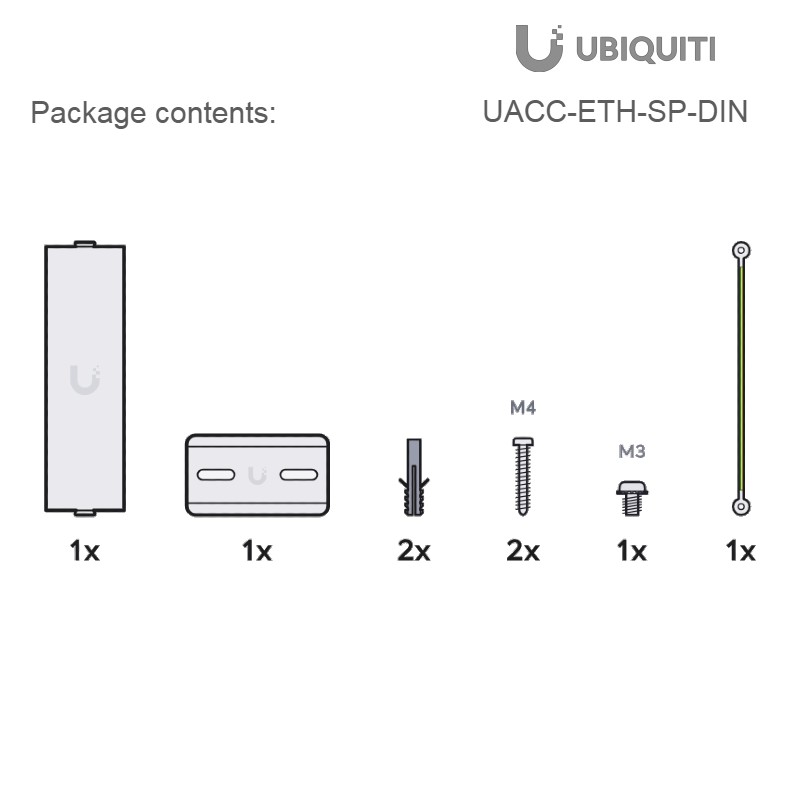

Package Contents:
1 x UACC-ETH-SP-DIN
1 x DIN rail
1 x Ground cable
1 x M3 screw
2 x Screw and wall plug

Additional Images:
Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
