Ubiquiti Networks » UACC-ETH-SP-Panel-24

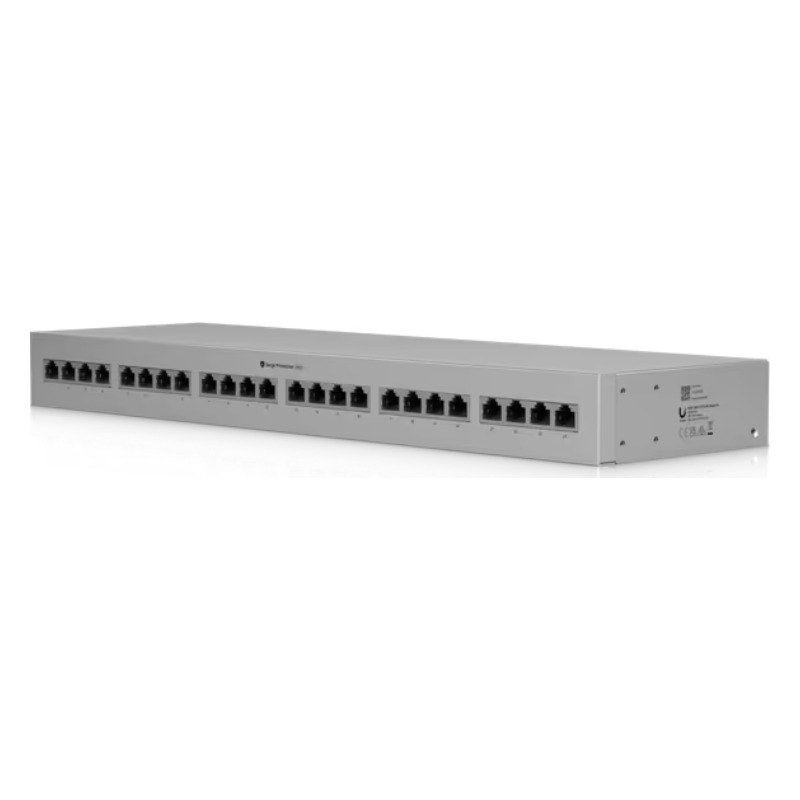

Ubiquiti UACC-ETH-SP-Panel-24, 24 x Ethernet Surge Protection Rack-mount
[3572][UACC-ETH-SP-Panel-24]
Price: 343,80€
 Order or Qty  Price
 > 500€  5+   340,37€
 > 1000€  10+   336,93€
 > 2000€  20+   333,49€
 > 5000€  40+   330,05€
 > 10000€  100+   326,61€
Prices exclude VAT

Ubiquiti UACC-ETH-SP-Panel-24, 24 x Ethernet Surge Protection Rack-mount
Available after:
17 Dec 2025
Order Qty:

UACC-ETH-SP-Panel-24 - 24 x Ethernet Surge Protection Rack-mount

Rack-mount indoor panel supports up to 10 GbE, PoE++, and 20kA surge discharge per port.

24-port integrated
1U rack-mount design

Product Links:
Datasheet Datasheet   Installation Installation

Mechanical:
Dimensions 442.4 x 134 x 43.7 mm
Weight 2 kg
Enclosure Material SGCC steel
Hardware:
Networking Interface (48) RJ45 female connectors
DC Spark-Over Voltage 90V @ 100V/s
Max. Impulse Spark-Over Voltage 600V @ 1kV/µs
Discharge Current 20kA
Insulation Max. Resistance: 1G ohm @ 50V
Max. Capacitance: 1.0 pF @ 1 MHz
Data Line Protection Up to 10 Gbps
PoE Support ✓
ESD/EMP Protection Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
Ambient Operating Temperature -40° to +80° C
Ambient Operating Humidity 10 to 90% noncondensin

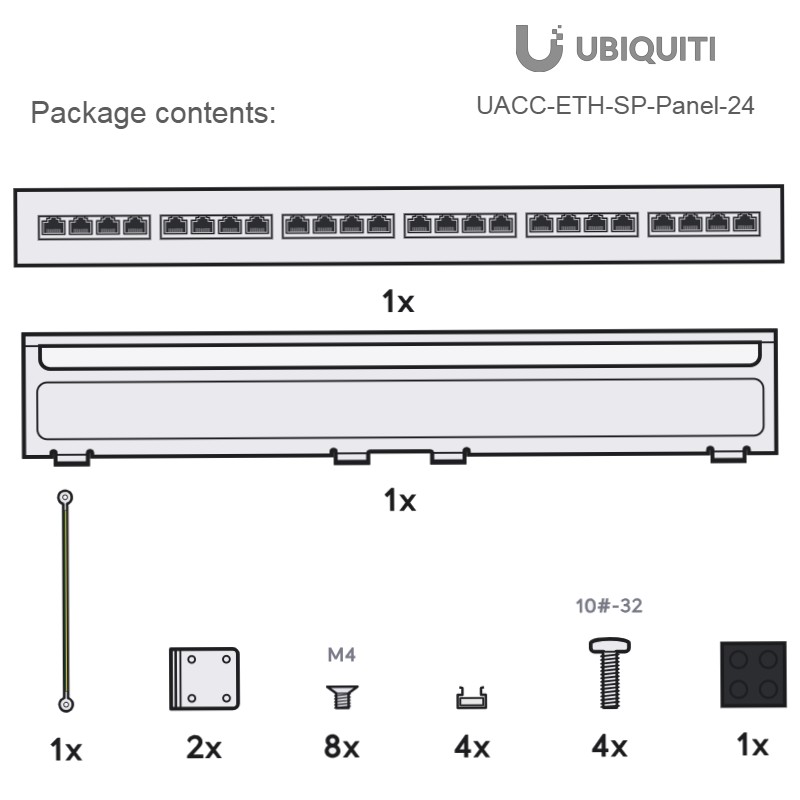

Package Contents:
1 x UACC-ETH-SP-Panel-24
1 x Mounting rail
2 x Rack mounts
1 x Ground cable
8 x M4 screw
4 x 10#-32 screws
4 x Cage nuts
4 x Rubber feet

Additional Images:
Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
