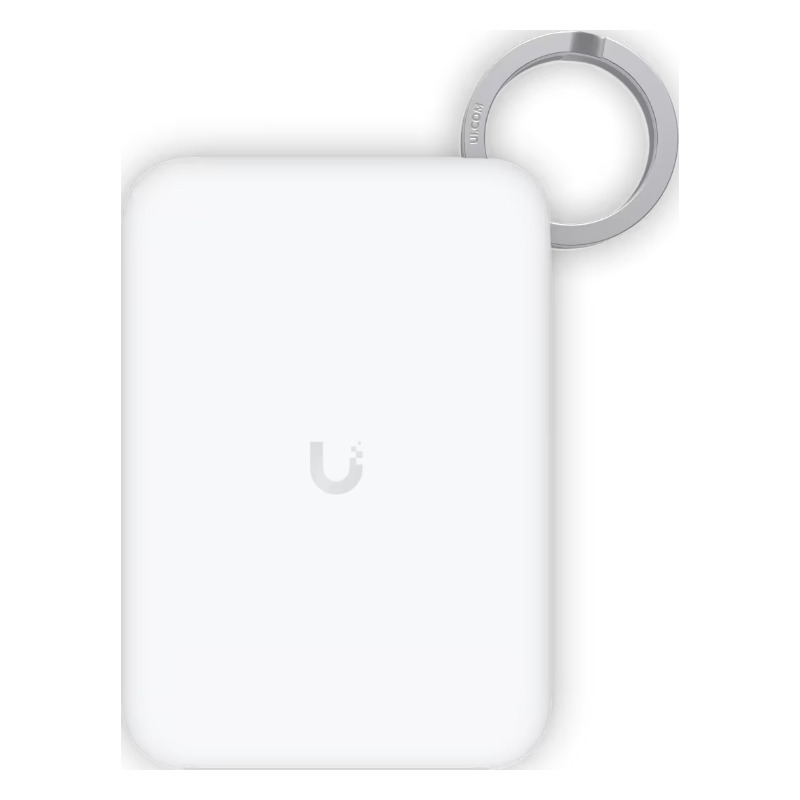

WM-W - WiFiMan Wizard
A portable spectrum analyzer designed for the WiFiMan iOS and Android mobile app.
 |
2.4 GHz and 5 GHz unlicensed band scanning
|
 |
240 minutes continuous scanning battery life
|
 |
BLE smartphone pairing with USB-C charging port
|
 |
iPhone Magsafe attachable support*
|
*A mag-safe case is required to attach this device to an iPhone.
|
Specifications: |
|
Dimensions |
78.5 x 50.5 x 7.9 mm |
|
Weight |
32 g |
|
Enclosure Material |
Polycarbonate |
|
Weatherproofing |
IP55 |
|
Ambient Operating Temperature |
0 to 40° C |
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
Power |
|
Power Method |
Li-ion battery (Rechargeable) |
|
Power Supply |
3.7V DC, 300mAh |
|
Supported Voltage Range (Charging) |
USB-C: 5V DC/1A |
|
Max. Power Consumption |
32.4mW |
|
SSID Scan |
|
Frequency Range |
2.4 to 2.5 GHz, 5.15 to 5.85 GHz |
|
Amplitude Range |
-96 dBm to 0 dBm |
|
Amplitude Resolution |
1 dBm |
|
Interface & Compliance |
|
LEDs |
W/B/R |
|

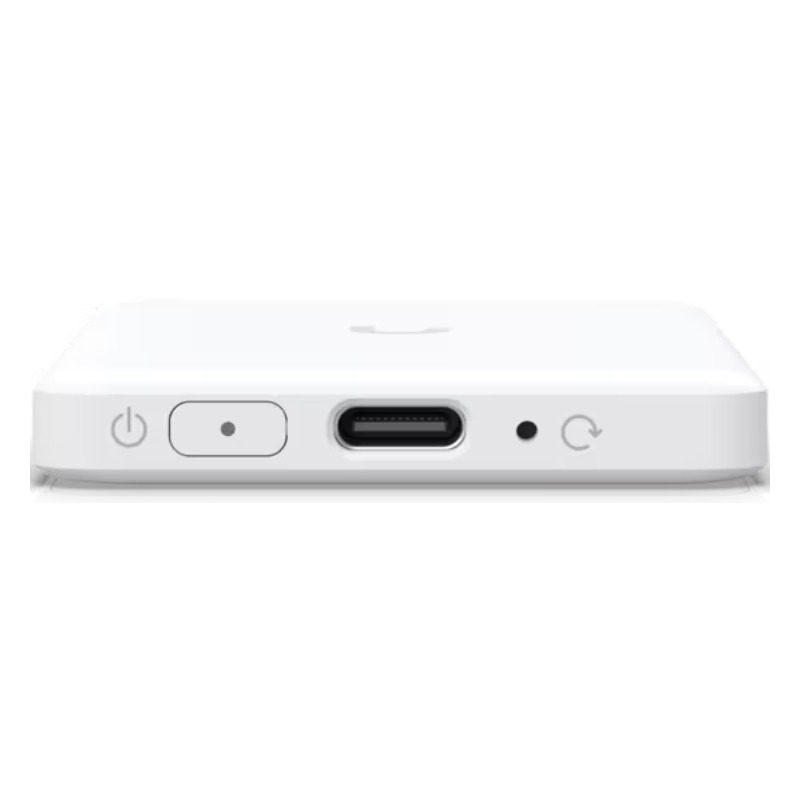

Buttons |
(1) Power, (1) Factory-reset |
|
Certifications |
CE, FCC, IC, Anatel: 10051-23-08356 |
|
Software Requirements |
|
Mobile App (iOS) |
UniFi WiFiman iOS™: Version 0.18.0 and later |
|
Mobile App (Android) |
UniFi WiFiman Android™: Version 1.15.0 and later |
