UVC-G6-180-B - UniFi Protect Camera G6 180 Black
Indoor/outdoor dual sensor 16MP 20 FPS PoE+ camera, with a Multi-TOPS AI Engine and panoramic 180° coverage.
|
Specifications: |
|
Resolution |
16MP (7680 x 2160) 3.5:1 Aspect Ratio |
|
Sensor |
Dual 1/1.8" 8MP |
|
Field of View |
Horizontal: 180° | Vertical: 56.7° |
|
IR Night Vision |
20 m (65 ft) with IR cut filter |
|
Max. Frame Rate |
20 FPS |
|
Image Settings |
HDR, 2DNR, 3DNR, White Balance, Masking, Text Overlay |
|
AI & Smart Features |
|
Smart Detections |
People, Vehicles, Animals |
|
Advanced Recognition |
Face Recognition & License Plate Recognition (LPR) |
|
Audio |
Two-way audio (Integrated mic/speaker) |
|
Hardware & Networking |
|
Processor |
Quad-core Arm® Cortex®-A53 based chip |
|
Networking Interface |
10/100 MbE RJ45 port |
|
Power Method |
PoE+ (37—57V DC) |
|
Max. Power Consumption |
15W |
|
Expansion Slot |
MicroSD card |
|
Mechanical & Environmental |
|
Dimensions |
136 x 64 x 92 mm |
|
Weight |
839 g |
|
Weatherproofing |
IP66 |
|
Tamper Resistance |
IK04 |
|
Operating Temperature |
-20 to 50º C |
|
Enclosure Material |
Aluminum alloy, Polycarbonate |
|
Compliance & Software |
|
Application Requirements |
UniFi Protect (Web, iOS, Android) |
|
Compliance |
NDAA Compliant, CE, FCC, IC |

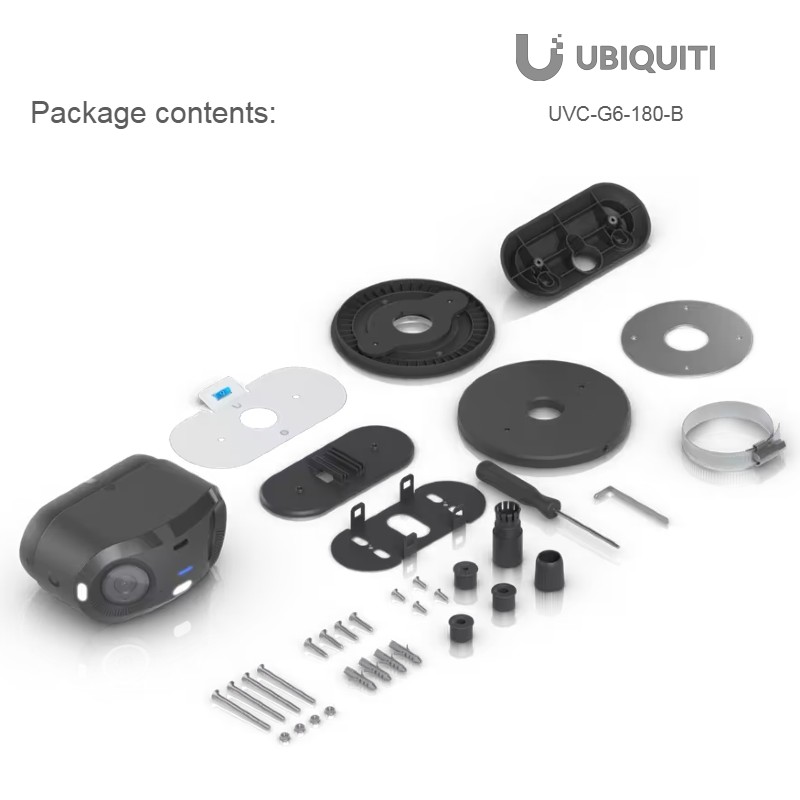

| Package Contents: |
|---|
| 1 x UVC-G6-180-B
|
| 1 x Pan Adapter
|
| 1 x Wedge Mount
|
| 1 x Ceiling Mount Bracket
|
| 1 x Pole Mount
|
| 1 x Mounting Hardware Kit |
|
