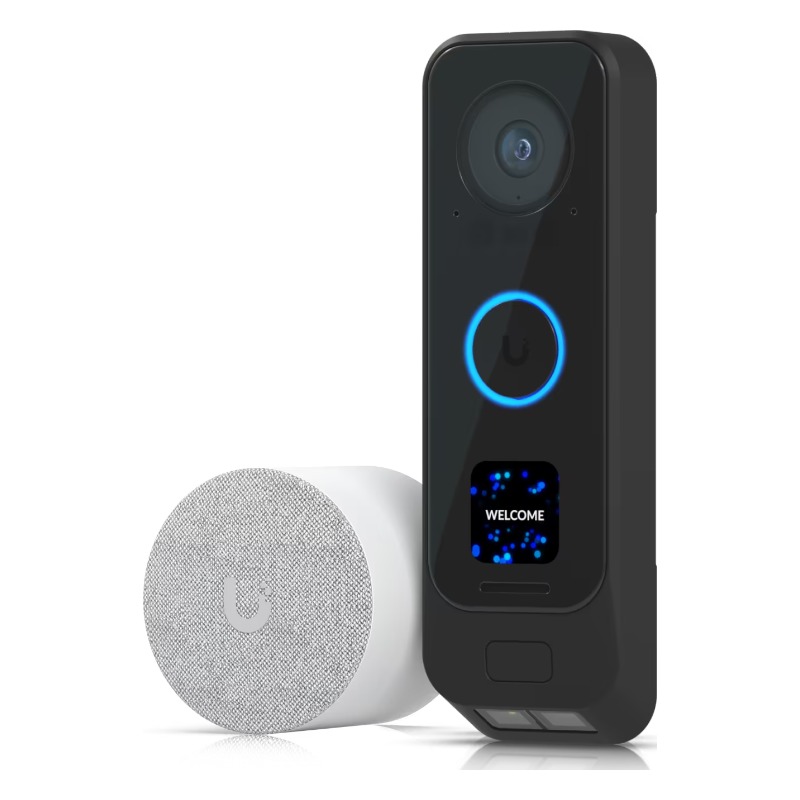

UVC-G4 Doorbell Pro PoE Kit - UniFi UVC-G4 Doorbell Pro PoE Kit Black
Premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play installation.
The UniFi G4 Doorbell Pro PoE Kit is a premium, wired video intercom system designed for high-end security and ease of use.
Unlike the standard Wi-Fi version, this kit uses a single Power over Ethernet (PoE) cable for both power and data connectivity, ensuring a more stable and secure connection.
|
Specifications: |
|
Main Camera Resolution |
2MP (1600 x 1200) @ 30 FPS |
|
Package Camera Resolution |
2MP (1600 x 1200) |
|
Main Camera Field of View |
H: 160°, V: 117°, D: 160° (LDC Off) |
|
Package Camera Field of View |
H: 97.5°, V: 79.4°, D: 118.2° |
|
IR Night Vision |
6 m |
|
Audio |
Two-way audio |
|
Hardware & Networking |
|
Networking Interface |
GbE RJ45 port |
|
Power Method |
PoE (37—57V DC) |
|
Processor |
Quad-core Arm Cortex-A53 |
|
Max. Power Consumption |
7W |
|
Access Features |
NFC Card & Keyfob Access |
|
Mechanical & Environmental |
|
Dimensions (Device) |
160.6 x 51.7 x 35.1 mm |
|
Weight (Device) |
264 g |
|
Enclosure Material |
Polycarbonate, aluminum alloy |
|
Weatherproofing |
IPX4 |
|
Operating Temperature |
-30 to 40º C |
|
PoE Chime Specifications |
|
Dimensions (Chime) |
Ø62 x 54 mm |
|
Weight (Chime) |
158 g |
|
Power Method |
PoE (44—57V DC) |
|
Networking Interface |
10/100 MbE port |
|
Features |
Speaker, Buzzer, R/G/B/W LED |
|
Compliance |
|
NDAA Compliant |
Yes |
|
Certifications |
CE, FCC, IC, SRRC |
| Package Contents: |
|---|
| 1 x UVC-G4 Doorbell Pro PoE
|
| 1 x PoE Chime
|
| 1 x Flat wall mount
|
| 1 x 20° wedge mount.
|
| 1 x Installation Kit |
|
