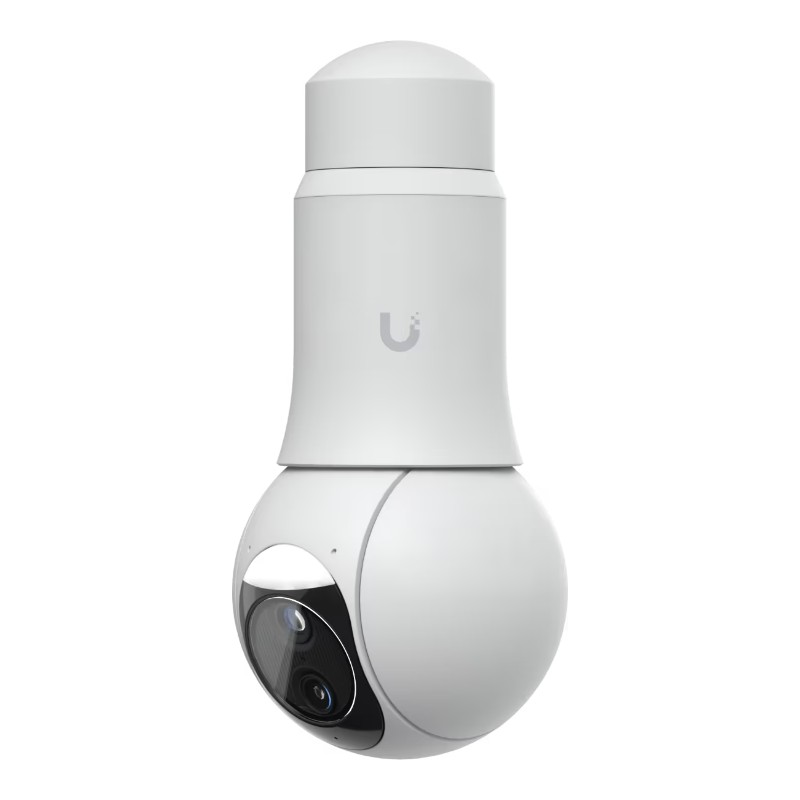

UVC-G6-PTZ-W - UniFi Protect G6 PTZ White.
All-weather, 4K dual-lens camera with 10x hybrid zoom, 1/1.8" 8MP image sensor, Multi-TOPS AI Engine, and ultra-low latency pan-tilt-zoom control for motion tracking.
The Ubiquiti UVC-G6-PTZ is a high-performance, all-weather 4K surveillance camera designed for dynamic tracking and detailed long-range monitoring.
|
Specifications: |
|
Resolution |
4K (8MP, 3840 x 2160) @ 30 FPS |
|
Sensors |
Dual 1/1.8 inch 8MP (Wide and Tele) |
|
Zoom Mode |
10x Hybrid |
|
Pan-Tilt Range |
Pan: 350°, Tilt: 100° |
|
Field of View (Wide) |
H: 109.9°, V: 56.7°, D: 134.1° |
|
Field of View (Tele) |
H: 26.6°, V: 15.1°, D: 30.4° |
|
IR Night Vision |
30 m |
|
Audio |
Two-way audio |
|
AI & Smart Features |
|
Smart Detections |
People, Vehicles, Animals |
|
Advanced Recognition |
Face Recognition & License Plate Recognition (LPR) |
|
Image Settings |
HDR, 2DNR, 3DNR, White balance, Exposure control, Masking |
|
Hardware & Networking |
|
Networking Interface |
10/100 MbE RJ45 port |
|
Power Method |
PoE+ (42.5—57V DC) |
|
Max. Power Consumption |
24.5W |
|
Processor |
Quad-core Arm Cortex-A53 |
|
Expansion Slot |
MicroSD card |
|
Mechanical & Environmental |
|

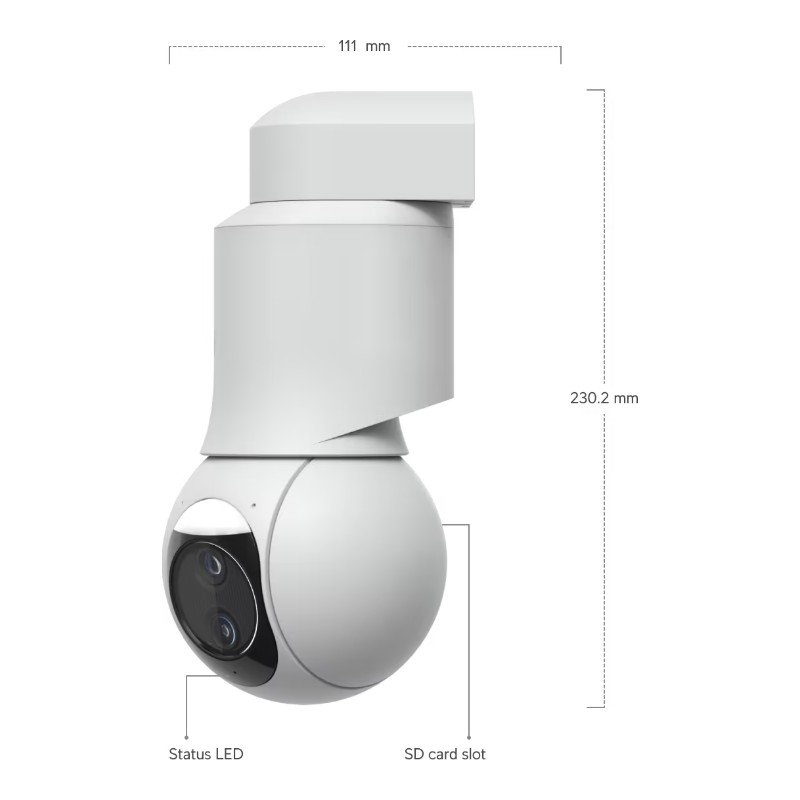

Dimensions (With Mount) |
Ø107.2 x 111 x 230.2 mm |
|
Weight (With Arm Mount) |
1.1 kg |
|
Enclosure Material |
Aluminum alloy, Polycarbonate |
|
Weatherproofing |
IP66 |
|
Tamper Resistance |
IK04 |
|
Operating Temperature |
-30 to 50° C |
|
Compliance & Mounting |
|
Pole Mount Diameter |
38–50 mm |
|
Mounting Options |
Wall, Surface, Ceiling, Pole (Included) |
|
Compliance |
NDAA Compliant, CE, FCC, IC |

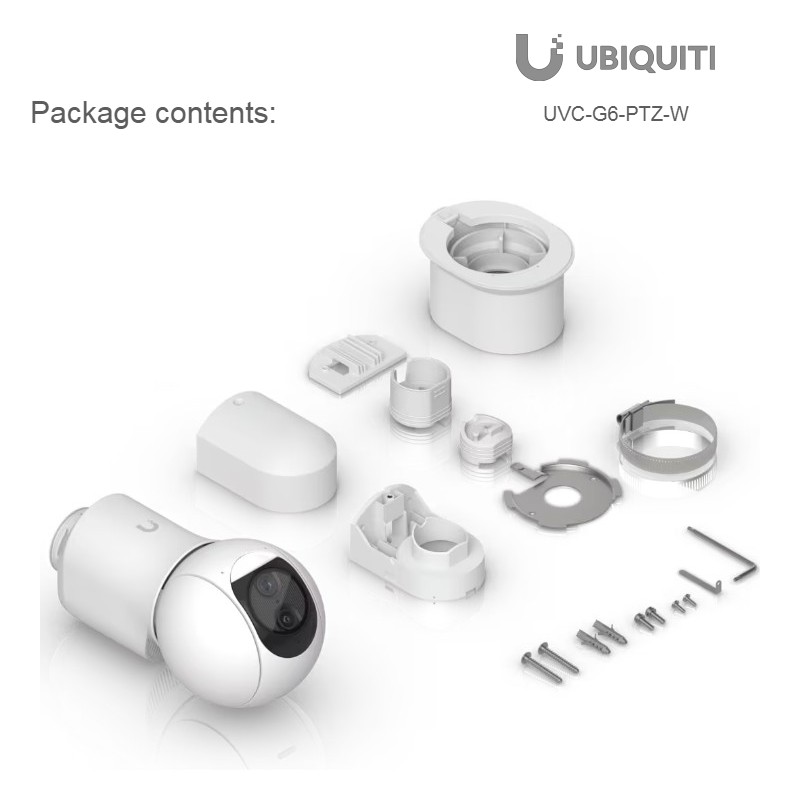

| Package Contents: |
|---|
| 1 x UVC-G6-PTZ-W Camera
|
| 1 x Wall Mount Bracket
|
| 1 x Pole/Corner Mount Adapter
|
| 1 x Protective Cable Cover
|
| 1 x Mounting Template
|
| 1 x Steel clamp for pole mounting
|
| 1 x Mounting Plate
|
| 1 x Set of Wall Anchors
|
| 1 x Set of Mounting Screws
|
| 1 x Allen Wrench (L-key) |
|
