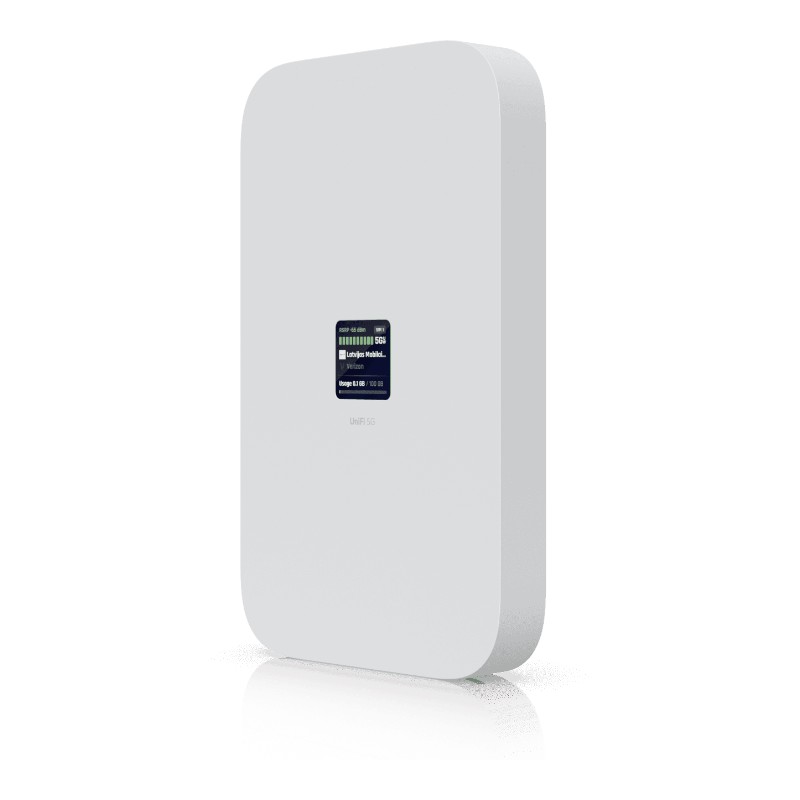

U5G-Max - UniFi 5G Max Indoor
The UniFi 5G Max (U5G-Max) is a premium, high-capacity 5G modem designed for indoor or desktop use.
Unlike the Outdoor version, it features a sleek industrial design with an integrated touchscreen for real-time status monitoring and signal optimization.
High-Speed Connectivity: Supports 5G speeds up to 3.4 Gbps (Downlink) and 900 Mbps (Uplink).
1.3" Touchscreen: Displays real-time signal strength, data usage, and connection status for easy troubleshooting.
Versatile Powering: Can be powered via 802.3at PoE+ or through a USB-C power adapter (included).
2.5 GbE Port: Features a high-speed RJ45 port to ensure your cellular connection isn't bottlenecked by the local network link.
Dual SIM Support: Includes one physical Nano-SIM slot and one eSIM for carrier redundancy.
|
Specifications: |
|
Networking Interface |
(1) 2.5 GbE RJ45 port |
|
Cellular Radio |
5G NR and LTE (Multi-band support) |
|
SIM Support |
(1) Nano SIM, (1) Nano-SIM or eSIM |
|
Peak Data Speed (5G NSA) |
Downlink: 3.4 Gbps | Uplink: 560 Mbps |
|
Peak Data Speed (5G SA) |
Downlink: 1.8 Gbps | Uplink: 650 Mbps |
|
Radio & Antenna |
|
Antenna Type |
(4) Embedded cellular antennas |
|
5G NR Bands |
n1, n2, n3, n5, n7, n8, n12, n20, n28, n41, n77, n78, etc. |
|
Max. TX Power |
26 dBm (HPUE Power Class 2) |
|
Power & Hardware |
|
Power Method |
PoE |
|
Max. Power Consumption |
14.5W |
|
Display |
1.3 inch touchscreen |
|
Management Interface |
Ethernet |
|
Button |
Factory-reset |
|
Mechanical & Environmental |
|
Dimensions |

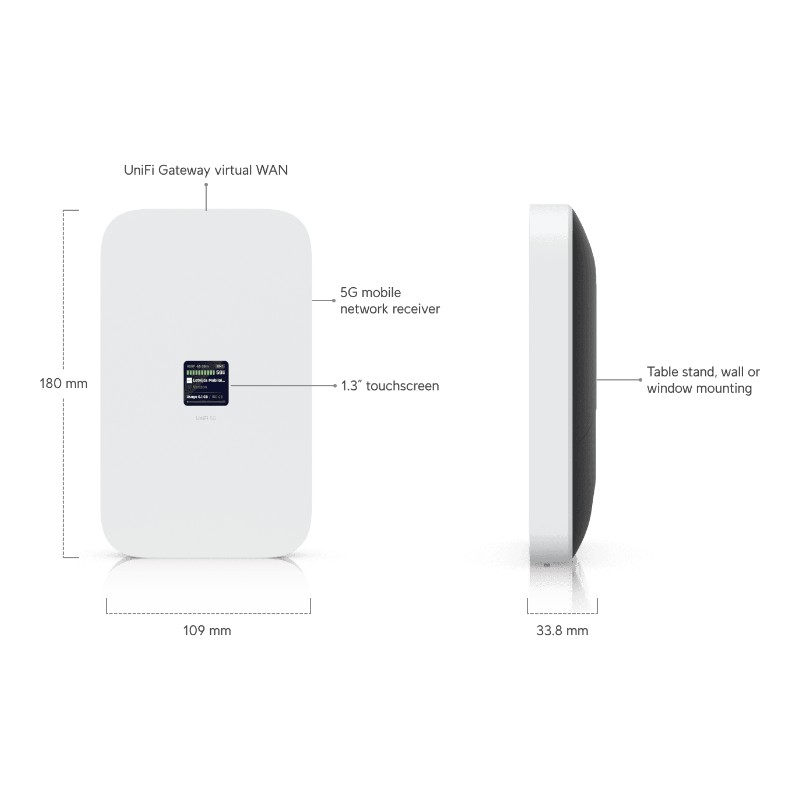

180 x 109 x 33.8 mm |
|
Weight (Device Only) |
410 g |
|
Enclosure Material |
Polycarbonate, aluminum alloy |
|
Tamper Resistance |
IK04 |
|
Operating Temperature |
0 to 40 ° C |
|
Operating Humidity |
5 to 95% non-condensing |
|
Compliance & Mounting |
|
Mounting Options |
Desktop stand, wall, window mount (Included) |
|
Compliance |
CE, PTCRB, GCF |
|
Software Requirements |
UniFi Network 10.0.162 or later |
| Package Contents: |
|---|
| 1 x UniFi 5G Max
|
| 1 x Desktop stand
|
| 1 x Window mount
|
| 1 x Wall mount
|
| 1 x PoE adapter (48V, 0.5A)
|
| 1 x Power cord
|
| 1 x Ethernet cable
|
| 2 x Wall screws
|
| 2 x Screw anchors |
|
