U5G-Max-Outdoor - UniFi 5G Max Outdoor
The UniFi 5G Max Outdoor (U5G-Max-Outdoor) is a professional-grade, high-performance 5G modem designed for the UniFi ecosystem.
It provides ultra-fast cellular WAN connectivity for remote sites, outdoor deployments, or as a high-speed failover for mission-critical networks
Ultra-Fast 5G: Supports downlink speeds up to 3.4 Gbps (5G NSA) and 1.8 Gbps (5G SA).
Rugged Design: Built with an IPX6 weather-resistant enclosure (upgradable to IP67 with the included cable-gland kit) for harsh outdoor environments.
High-Gain Antennas: Features 6 embedded antennas, including 2 high-gain directional antennas specifically for the n77/n78 bands to improve signal reach.
Dual SIM & eSIM: Provides carrier redundancy with one Nano-SIM slot and a secondary slot supporting either Nano-SIM or eSIM.
Single-Cable Install: Powered by 802.3af PoE via a 2.5 GbE RJ45 port for high-speed data and power over one cable.
|
Specifications: |
|
Networking Interface |
(1) 2.5 GbE RJ45 port |
|
Cellular Radio |
5G NR and LTE (Multi-band support) |
|
SIM Support |
(1) Nano SIM, (1) Nano-SIM or eSIM |
|
Peak Data Speed (5G NSA) |
Downlink: 3.4 Gbps | Uplink: 560 Mbps |
|
Peak Data Speed (5G SA) |
Downlink: 1.8 Gbps | Uplink: 650 Mbps |
|
Radio & Antenna |
|
Antenna Type |
(6) Embedded cellular antennas |
|
High-Gain Performance |
Peak 9 dBi (85°x85°) for downlink |
|
5G NR Bands |
n1, n2, n3, n5, n7, n8, n12, n20, n28, n41, n77, n78, etc. |
|
Max. TX Power |
26 dBm (HPUE Power Class 2) |
|
Power & Hardware |
|
Power Method |
PoE |
|
Max. Power Consumption |
14.5W |
|
Management Interface |
Ethernet |
|
Buttons & Indicators |
Factory-reset, LEDs |
|
Mechanical & Environmental |
|

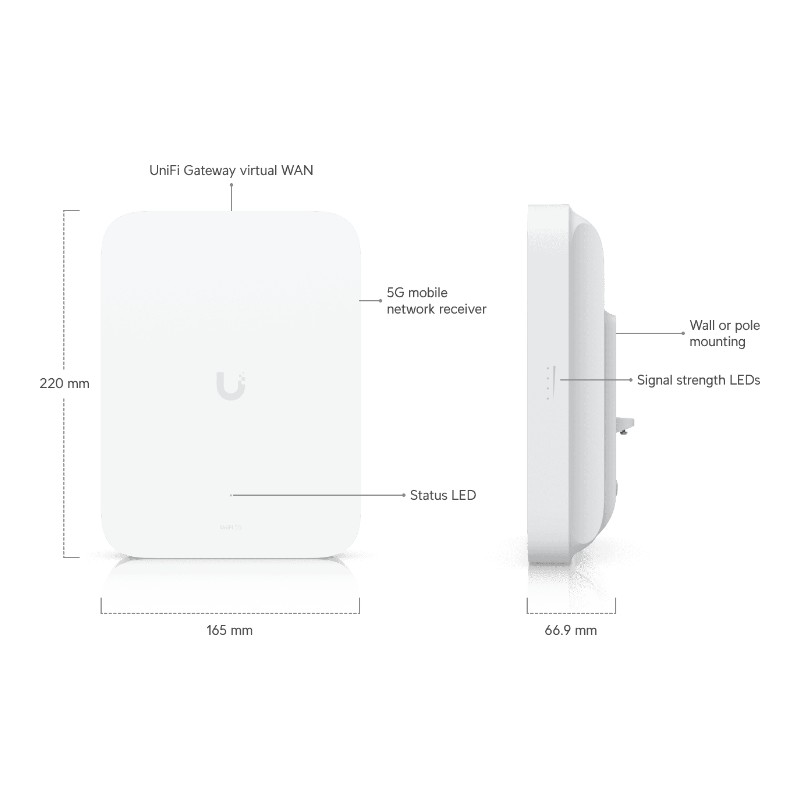

Dimensions (With Mount) |
220 x 165 x 122 mm |
|
Weight (Device Only) |
1.2 kg |
|
Enclosure Material |
Aluminum-alloy, UV-stabilized polycarbonate |
|
Weatherproofing |
IPX6 (IP67 with cable-gland door kit) |
|
Operating Temperature |
-40 to 65 °C |
|
Wind Loading |
91N at 200 km/h |
|
Compliance & Mounting |
|
Mounting |

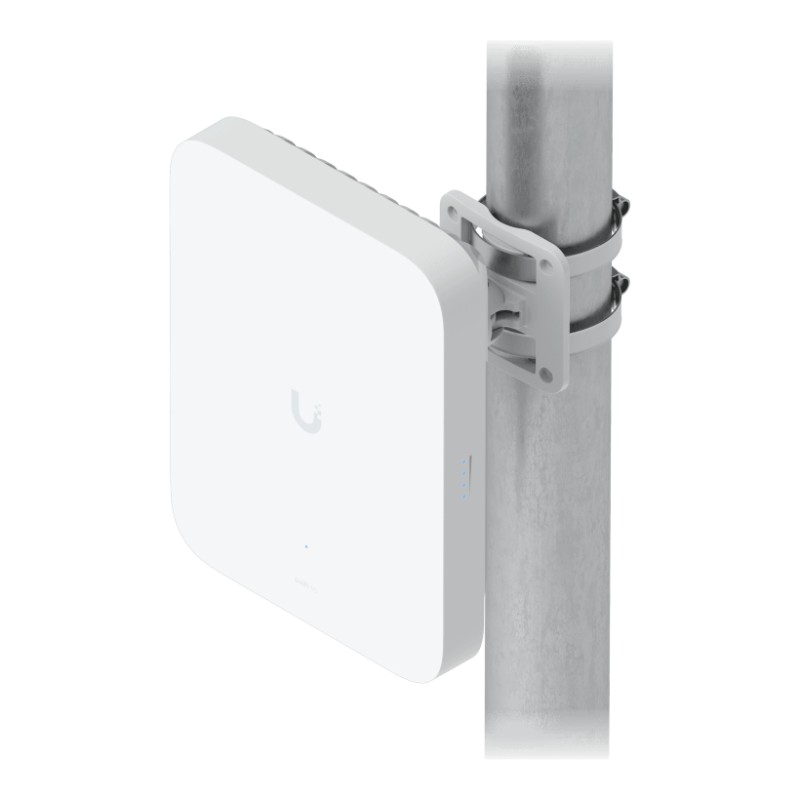

Pole mount, wall mount (Included) |
|
Pole Mount Diameter |
25–63.5 mm |
|
Certifications |
CE, PTCRB, GCF |
| Package Contents: |
|---|
| 1 x U5G-Max-Outdoor device
|
| 1 x Adjustable wall/pole mount bracket
|

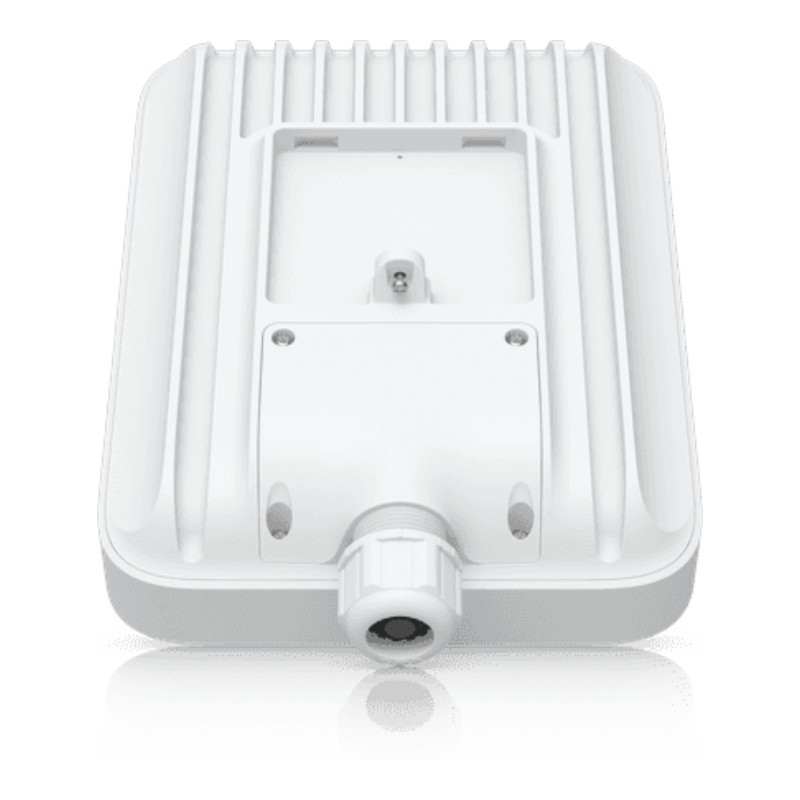

| 1 x Top port cover with cable gland
|
| 1 x Bottom port cover
|
| 1 x Mounting plate with bubble level
|
| 2 x Metal pole straps
|
| 1 x Hex key (Allen wrench)
|
| 4 x Mounting screws
|
| 4 x Wall anchors
|
| 4 x Small security screws
|
| 1 x Protective rubber cap
|
| 1 x SIM ejector tool |
|
