U7-Pro-XG-Wall - UniFi AP U7 Pro XG Wall
Wall-mounted 6 GHz-ready WiFi 7 AP with 1/2.5/10 GbE support.

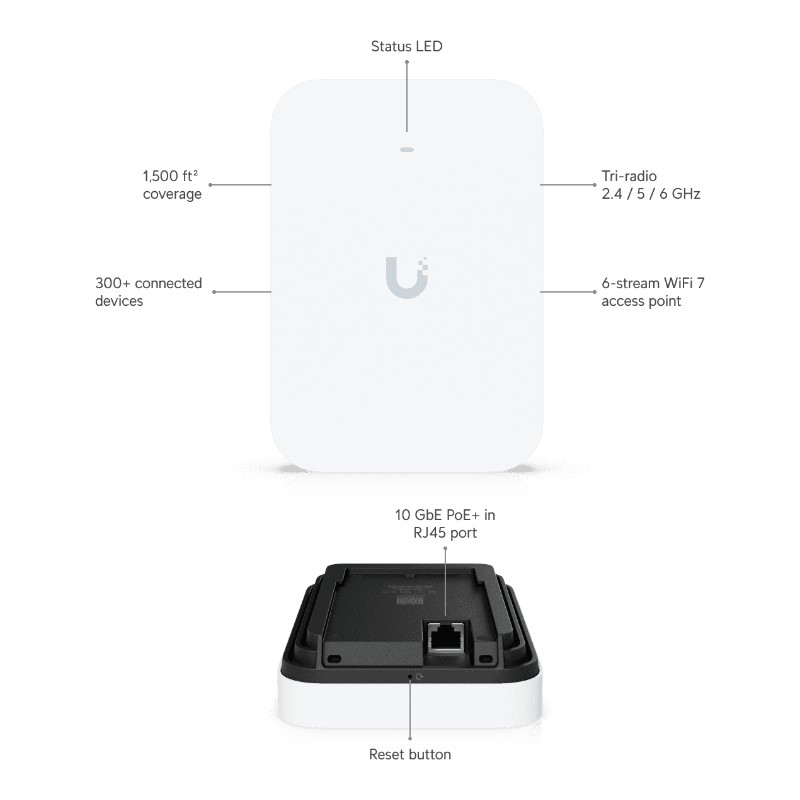

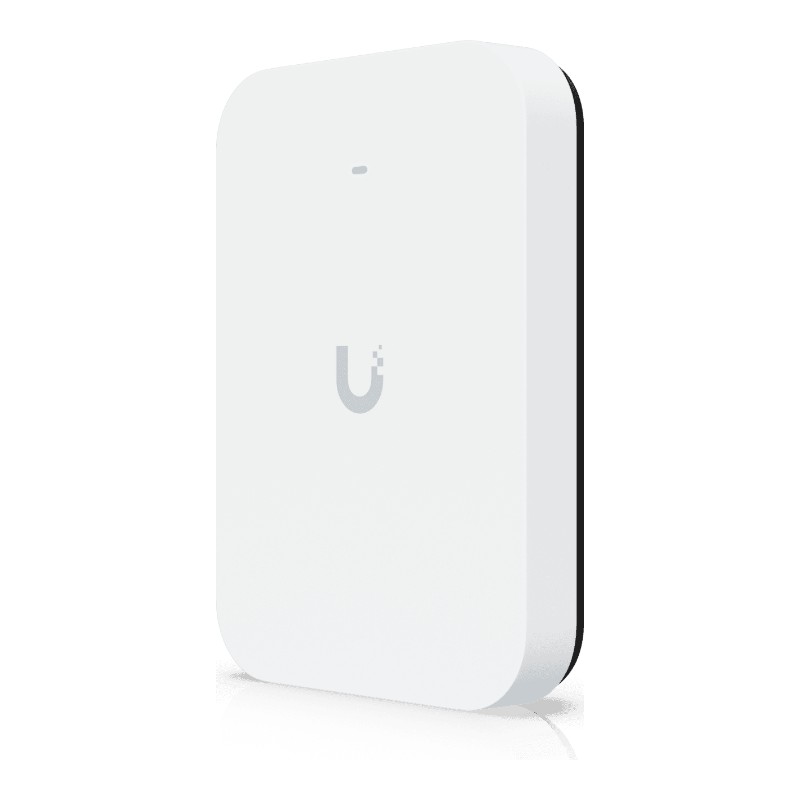

The UniFi U7 Pro XG Wall is a flagship, wall-mounted WiFi 7 access point designed for ultra-high-density environments.
It differentiates itself from the standard U7 Pro Wall by offering a massive 10 GbE uplink and enhanced thermal management in a sleek, fanless design.
|
Specifications: |
|
WiFi Standard |
WiFi 7 (802.11be) |
|
Max. Data Rate (6 GHz) |
5.8 Gbps (BW320) |
|
Max. Data Rate (5 GHz) |
4.3 Gbps (BW240) |
|
Max. Data Rate (2.4 GHz) |
688 Mbps (BW40) |
|
Spatial Streams |
6 (2x2 per radio) |
|
Coverage Area |
140 m² |
|
Max. Client Count |
300+ |
|
Hardware & Networking |
|
Uplink |

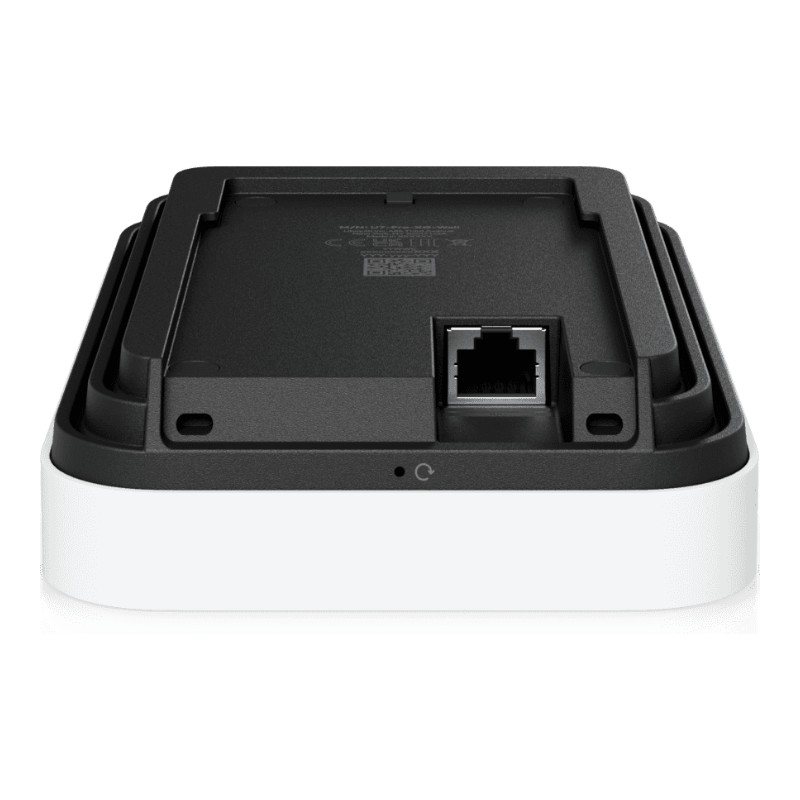

10 GbE RJ45 port |
|
Power Method |
PoE+ |
|
Max. Power Consumption |
22W |
|
Antenna Gain |
6 dBi (5/6 GHz) | 4 dBi (2.4 GHz) |
|
Features & Software |
|
Advanced Features |
Meshing, PPSK, Fast Roaming (802.11r), RadSec |
|
Management |
UniFi Network 10.0 or later |
|
Channel Bandwidth |
Up to 320 MHz |
|
Mechanical & Environmental |
|
Dimensions |
155 x 108 x 33.5 mm |
|
Weight |
505 g |
|
Weatherproofing / Material |
Polycarbonate, aluminum alloy |
|
Operating Temperature |
-30 to 40° C |
|
Compliance |
|
Compliance |
NDAA Compliant, CE, FCC, IC |

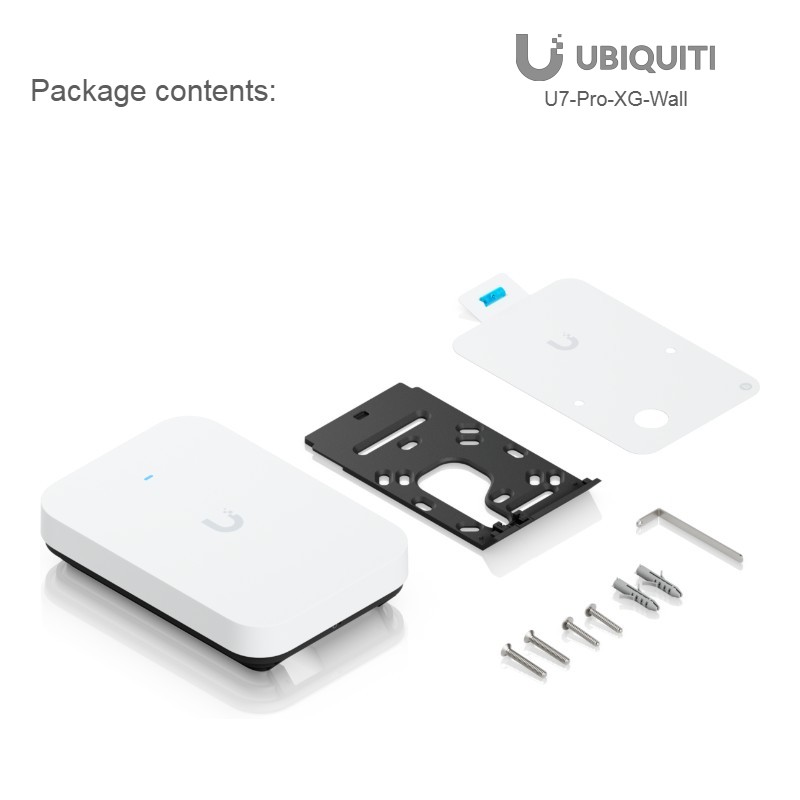

| Package Contents: |
|---|
| 1 x U7-Pro-XG-Wall access point
|
| 1 x Wall mounting plate
|
| 1 x Bubble level (integrated)
|
| 1 x Allen key / Release tool
|
| 1 x Mounting screws kit |
|
