UDB-Switch - UniFi Device Bridge Switch 35W
Compact PoE+ switch* with (1) 10 GbE port, (7) 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integration for seamless, high-capacity wireless uplink to UniFi WiFi.
The UniFi Device Bridge Switch (UDB-Switch) is a high-performance 8-port PoE+ switch that doubles as a high-speed WiFi 7 media bridge. It is specifically designed to extend wired network connectivity and PoE power to areas where running an Ethernet uplink cable is difficult or impossible.
*The Device Bridge Switch provides 35W of PoE power with the included 60W adapter, or up to 185W with the optional 210W adapter.
|
Specifications: |
|
WiFi Standard |
WiFi 7 (802.11be) |
|
Max. Data Rate (6 GHz) |
5.8 Gbps (BW320) |
|
Max. Data Rate (5 GHz) |
4.3 Gbps (BW240) |
|
Spatial Streams |
4 (2x2 per radio) |
|
Antenna Gain |
8 dBi (5/6 GHz) |
|
Wireless Security |
WPA3 SAE (Always On) |
|
Hardware & Networking |
|
Uplink Interface |
(1) 10 GbE RJ45 port |
|
LAN Interfaces |
(7) 2.5 GbE RJ45 ports |
|
PoE Interface |
(8) PoE+ ports (30W max per port) |
|
Total PoE Availability |
Up to 185W (with 210W adapter) |
|
Display |
0.96 inch status display |
|
Mechanical & Environmental |
|

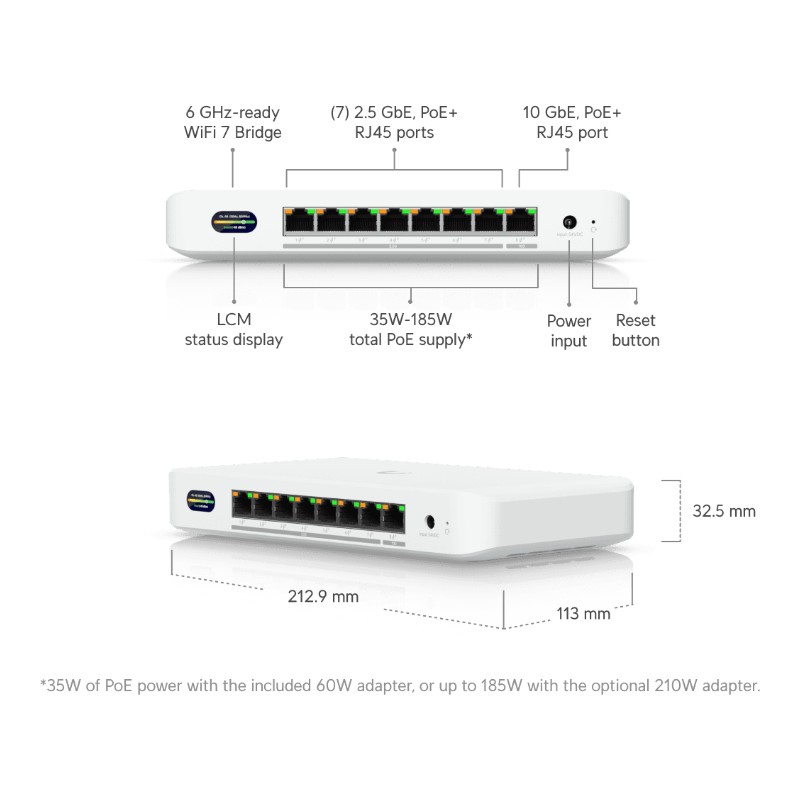

Dimensions |
212.9 x 113 x 32.5 mm |
|
Weight |
548 g |
|
Mounting |
Desktop, Wall |
|
Operating Temperature |
-30°C to 40°C |
|
Compliance & Software |
|
Software Requirements |
UniFi Network 10.0.156 or later |
|
Compliance |
NDAA Compliant, CE, FCC, IC |

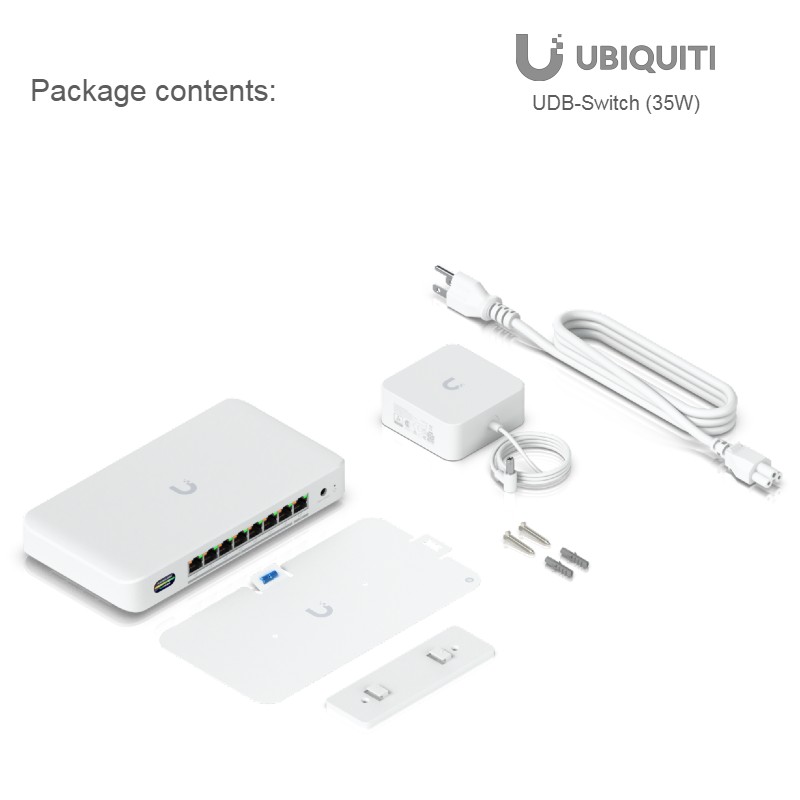

| Package Contents: |
|---|
| 1 x UDB-Switch device
|
| 1 x Wall mounting plate
|

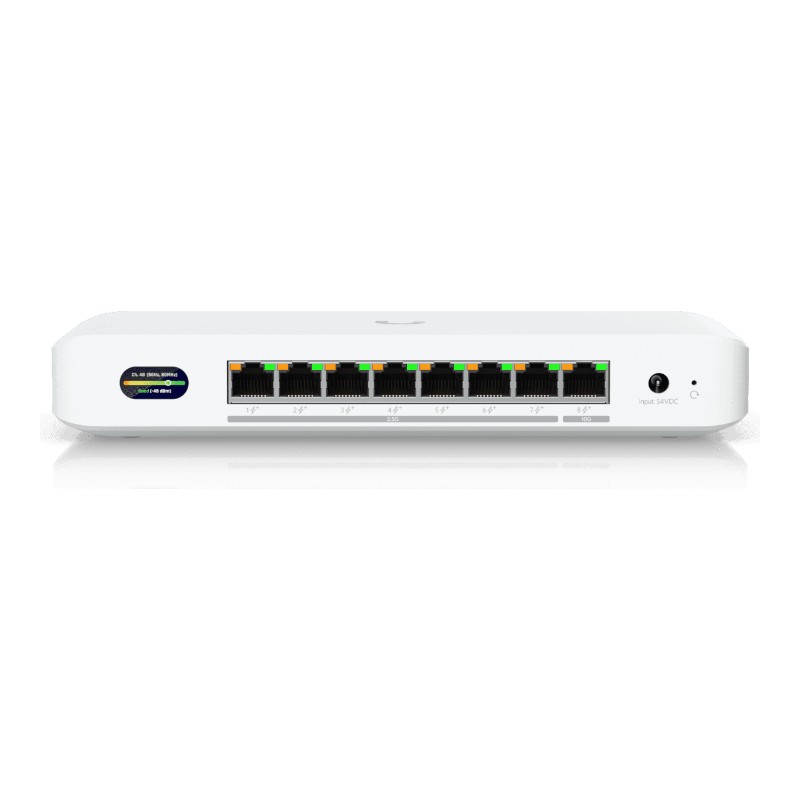

| 1 x Power adapter UDB-Switch_2.jpg
|
| 1 x AC power cable
|
| 2 x Mounting screws and anchors |
|
