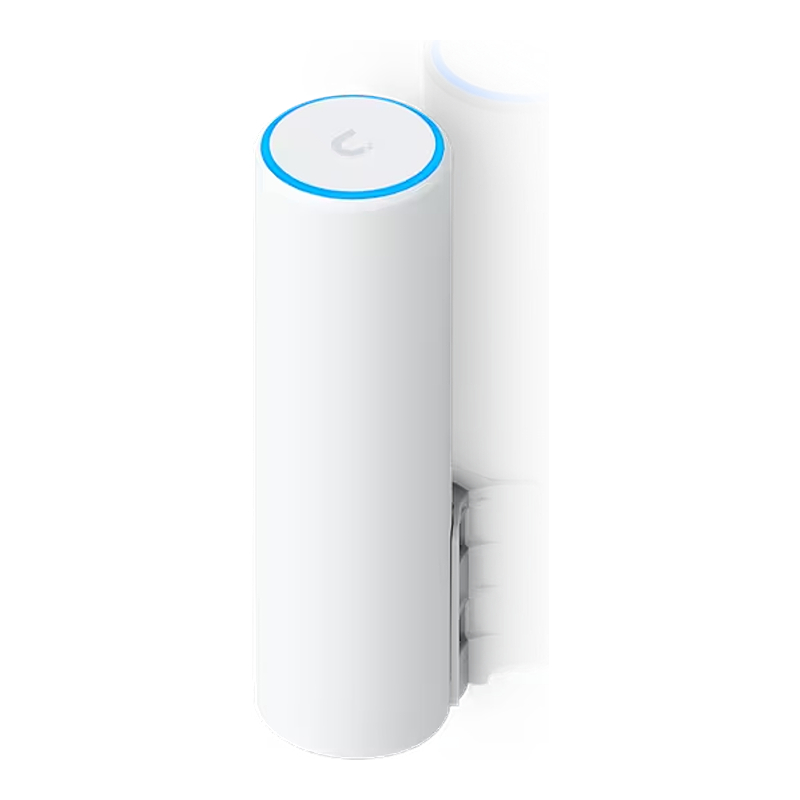

U7-Mesh - WiFi 7 Access Point
The U7-Mesh access point supports WiFi 7 standard and has 4 spatial streams.
It has a 2.5 GbE uplink and can support 200+ clients.
|
Specifications |
|

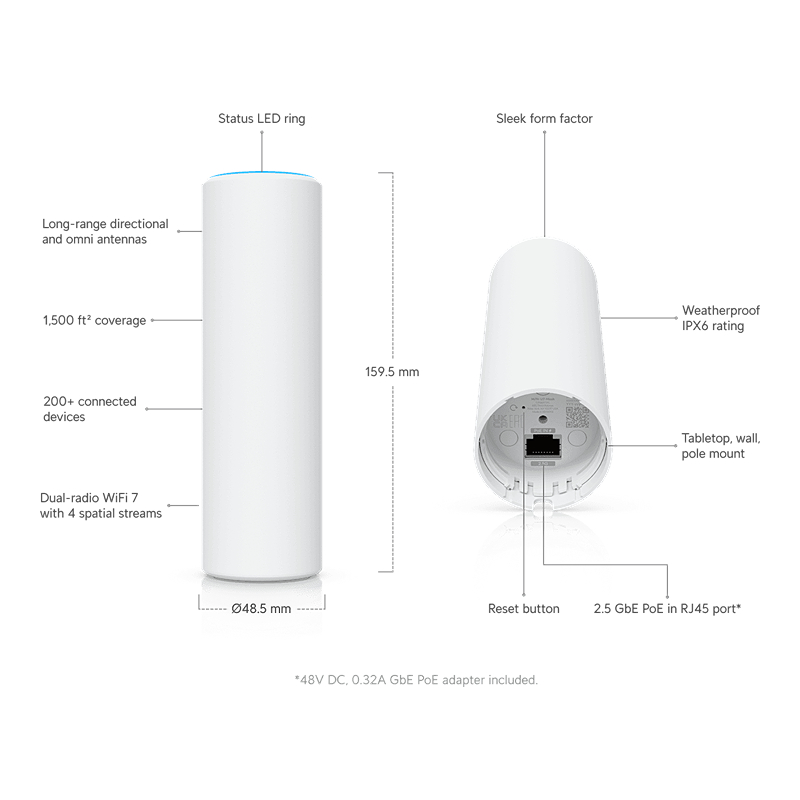

Dimensions |
⌀48.5 x 159.5 mm |
|
WiFi Standard |
WiFi 7 |
|
Spatial Streams |
4 |
|
Coverage Area |
140 m² |
|
Max. Client Count |
200+ |
|
Uplink |
2.5 GbE |
|
Mounting |
Wall, Pole, Table stand |
|
Weatherproofing |
IPX6 (Installed with the outdoor mount) |
|
Power Method |
PoE |
|
Performance |
|
MIMO 5 GHz |
2 x 2 (DL/UL MU-MIMO) |
|
MIMO 2.4 GHz |
2 x 2 (DL/UL MU-MIMO) |
|
Max. Data Rate 5 GHz |
4.3 Gbps (BW240) |
|
Max. Data Rate 2.4 GHz |
688 Mbps (BW40) |
|
Antenna Gain 5 GHz |
Omnidirectional: 6 dBi Directional: 10 dBi |
|
Antenna Gain 2.4 GHz |
3 dBi |
|
Max. TX Power 5 GHz |
24 dBm |
|
Max. TX Power 2.4 GHz |
23 dBm |
|
Max. BSSIDs |
8 per Radio |
|
Features |
|
Wireless Meshing |
✓ |
|
Band Steering |
✓ |
|
802.11v BSS Transition Management |
✓ |
|
802.11r Fast Roaming |
✓ |
|
802.11k Radio Resource Management (RRM) |
✓ |
|
Advanced Radio Management |
✓ |
|
Passpoint (Hotspot 2.0) |
✓ |
|
Captive Hotspot Portal Custom Branding Landing Page |
✓ |
|
Voucher Authentication |
✓ |
|
Payment-Based Authentication |
✓ |
|
External Portal Server Support |
✓ |
|
Password Authentication |
✓ |
|
Guest Network Isolation |
✓ |
|
Private Pre-Shared Key (PPSK) |
✓ |
|
WiFi Speed Limiting |
✓ |
|
Client Device Isolation |
✓ |
|
WiFi Schedules |
✓ |
|
RADIUS over TLS (RadSec) |
✓ |
|
Dynamic RADIUS-assigned VLAN |
✓ |
|
Hardware |
|
Max. Power Consumption |
13W |
|
Includes PoE Adapter |
✓ |
|
Supported Voltage Range |
42.5–57V DC |
|

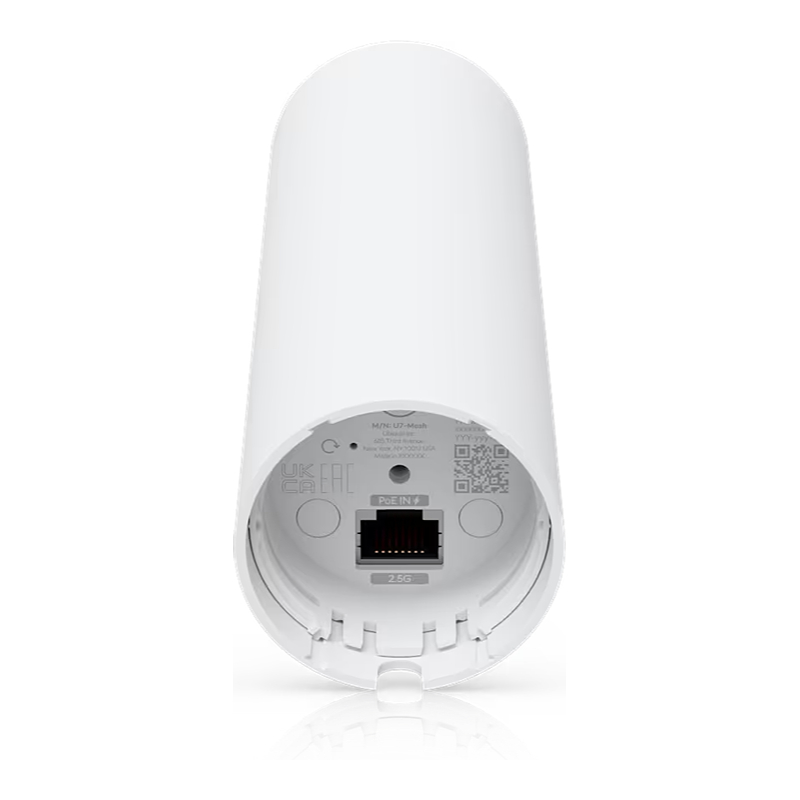

Networking Interface |
(1) 2.5 GbE RJ45 port |
|
Weight |
313 g |
|
Enclosure Material |
UV-stabilized polycarbonate |
|
Mount Material |
UV-stabilized polycarbonate |
|
NDAA Compliant |
✓ |
|
Certifications |
CE, FCC, IC |
|
Ambient Operating Temperature |
-30 to 60° C |
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
Software |
|
Application Requirements |
UniFi Network Version 10.1.85 and later |
|
Mobile App |
UniFi iOS™: Version 10.32.1 and later
Android™: Version 10.35.1 and later |
