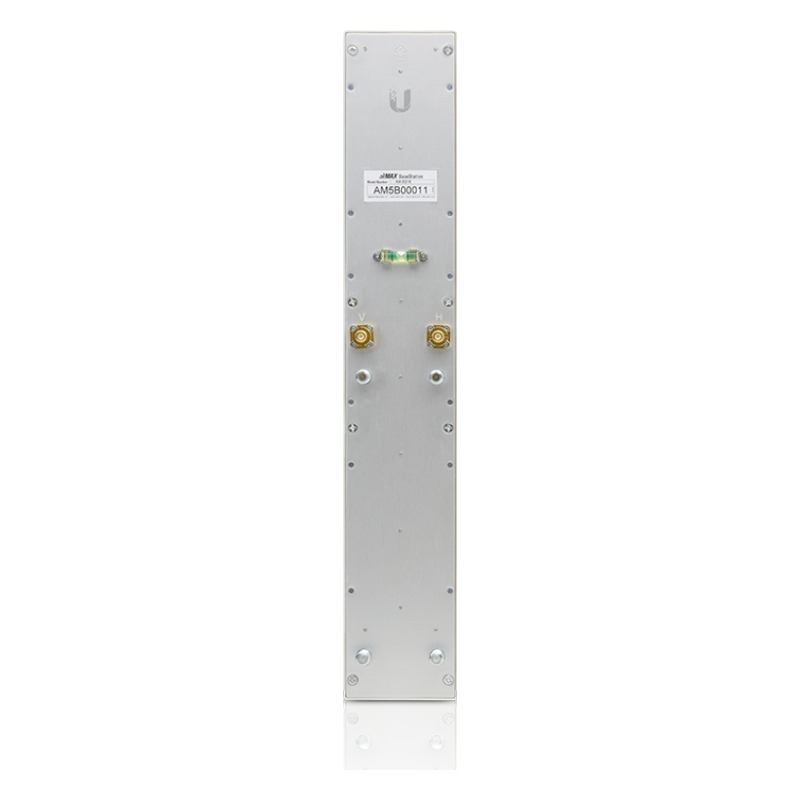

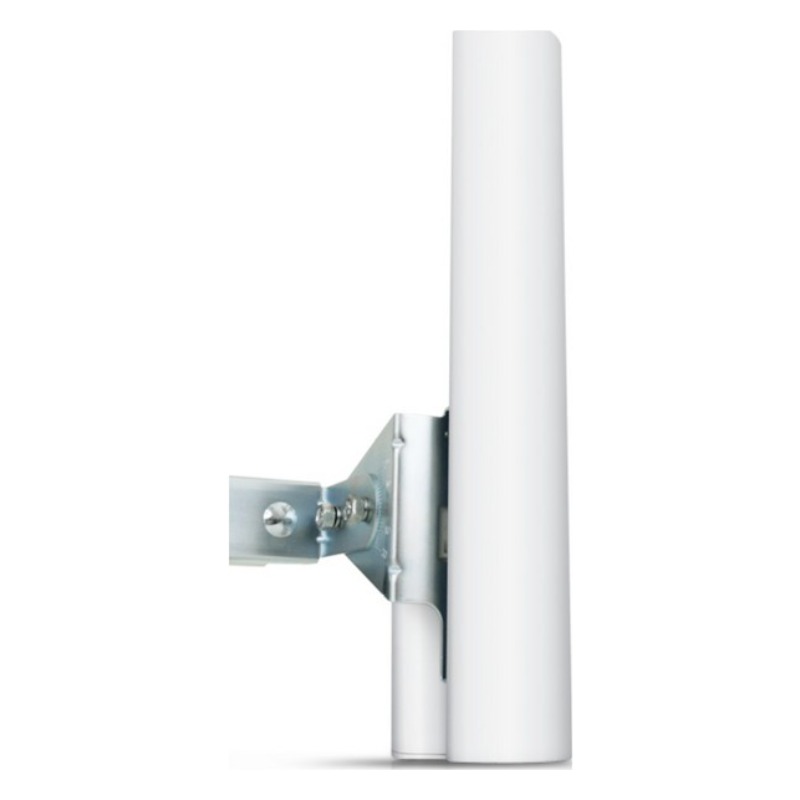

AM-5G16-120
Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world.
Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation.

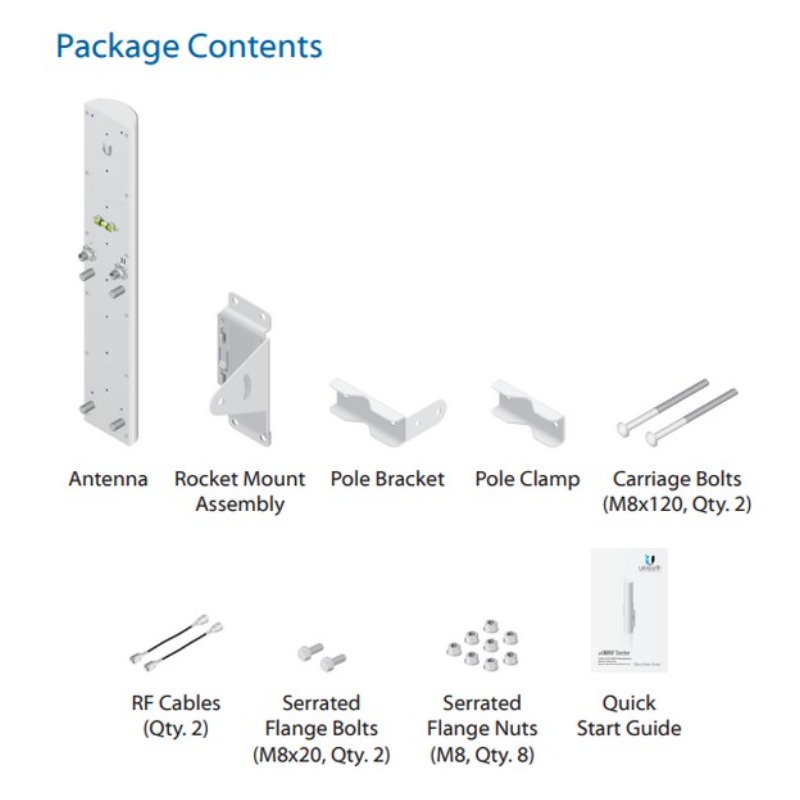

Rocket mount and weatherproof RF jumpers included.
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together.

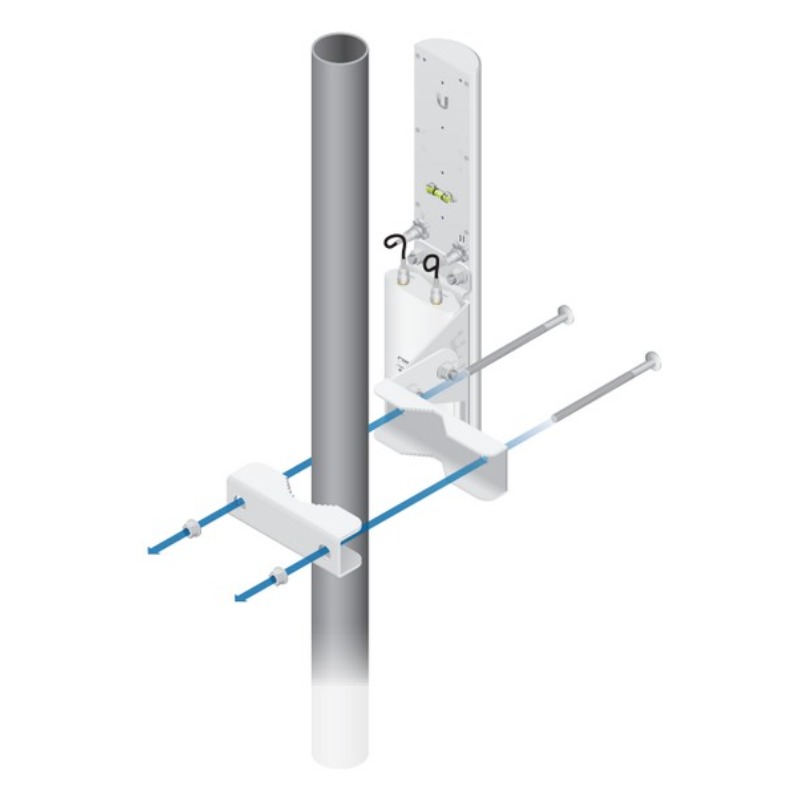

Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
|
Specifications: |
|
Frequency Range: |
5.15-5.85 GHz |
|
Gain: |
15-16 dBi |
|
Polarization: |
Dual Linear |
|
Cross-Pol Isolation: |
22dB min |
|
Max VSWR: |
1.5:1 |
|
Hpol Beamwidth (6dB): |
137° |
|
Vpol Beamwidth (6db): |
118° |
|
Elevation Beamwidth: |
8° |
|
Electrical Downtilt: |
4° |
|
ETSI Specification: |
EN302 326 DN2 |
|
Dimensions: |
367 x 63 x 41mm |
|
Weight: |
1.1Kgr |
|
Windloading: |
120mph |
