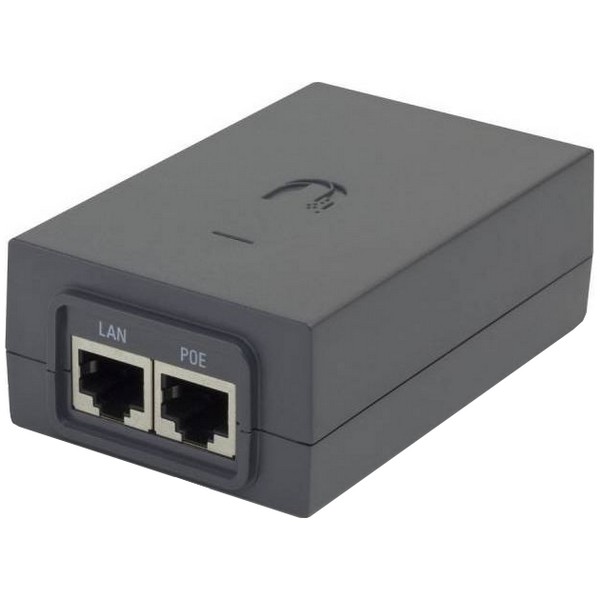

POE-48-24W
Designed by Ubiquiti for Station/CPE Devices.
The POE-48 (48V @ 0.5A) features earth grounding/ESD protection, power LED, and is available in the EU (CEE 7/16) Version.
|
Powering |
Mode |
Pins (+) |
Pins (-) |
|
2-Pair |
B |
4,5 |
7,8 |
|
Specifications: |
|
Output Voltage: |
48VDC @0.5A |
|
Input Voltage: |
90-260VAC @ 47-63Hz |
|
Input Current: |
0.3A @ 120VAC, 0.2A @230VAC |
|
Inrush Current: |
<15A peak @120VAC, <30A peak @230VAC |
|
Efficiency: |
70+% |
|
Output Ripple: |
1% Max |
|
Switching Frquency: |
200kHz |
|
Line Regulation: |
+/- 0.5% |
|
Load Regulation: |
+/- 1% |
|
Operating Temperature: |
-10°C to +60°C |
|
Storage Temperature: |
-20°C to +85°C |
|
Operating Humidity: |
5% to 90% non condensing |
|
Size (l x w x h): |
85 x 43 x 30 mm |
|
Weight: |
115gr |
|
AC Ceonnector: |
IEC-320 C6 |
|
Data IN / POE: |
RJ45 Shielded Socket |
|
80% Current Indicator: |
Power LED will change color |
|
Surge Protection: |
Common Mode |
|
Clamping Protection: |
11V Data, 77.5V Power |
|
Max Surge Discharge: |
1200A (8/20uS) Power |
|
Peak Pulse Current: |
36A (10/1000uS) Data |
|
Shunt Capacitance: |
<5pf data |
|
Response Time: |
<1nS |
|
Compliance: |
Compliance |
