Powertron » PA1015-2DE
12v 1.0A Power Supply Wallplug EU type
[PA1015-2DE]
Price: 3,64€
 Order or Qty  Price
 > 500€  5+   3,57€
 > 1000€  10+   3,49€
 > 2000€  20+   3,42€
 > 5000€  40+   3,35€
 > 10000€  100+   3,28€

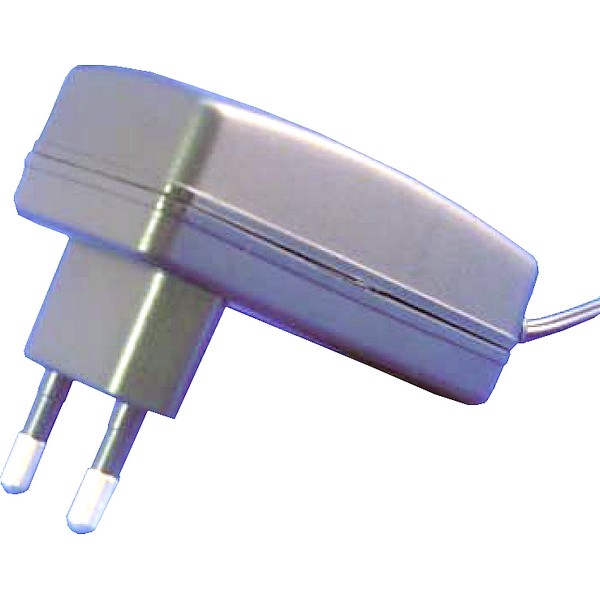

12v 1.0A Power Supply Wallplug EU type

In Stock: 13
Order Qty:

12V AC adapter :

Output: 12V DC / 1000mA, 2.1 mm DC jack.
Input: 100 - 240VAC, 47 - 63 Hz, CE / UL / GS.
AC Prongs : EU type
Origin: China



Description Values
Input Condition AC100~240V 50/60Hz  0.6A max
Input Rated Voltage 100Vac~200Vac
Input Voltage Rate 90Vac~264Vac
Input Rated Frequency 50/60Hz
Input Frequency Range 47Hz~63Hz
Input Current 0.6A Max
Input Inrush Current 30A Max
Input No Load Power Consumption 0.5 Watt Max @ 115Vac/230Vac
Efficiency 80% Min
Rated Output Voltage & Current 12v/1A
Output Line Regulation +-1%
Output Load Regulation +-5%
Output Over Shoot 10% Max
Output Ripple and Noise 1% Max
Output Rising Time 20ms Max @ 115Vac
Output Hold-Up Time 8ms Min @ 230Vac
Protection OCP OVP SCP OPP
Dielectric Withstand Voltage 3KV 5mA 60s
Leakage Current 0.25mA @ 230Vac
DC Plug Specification 5.5x2.1x11mm
Dimension 40x70x63mm
Operating Temperature Range 0oC~40oC
Storage Temperature Range -20oC~+85oC


Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
