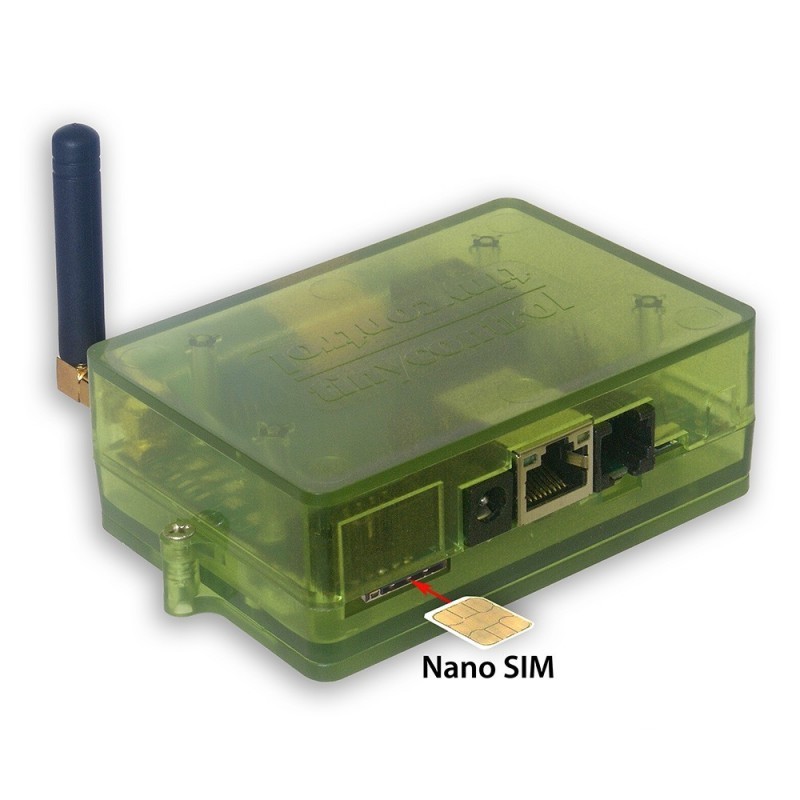

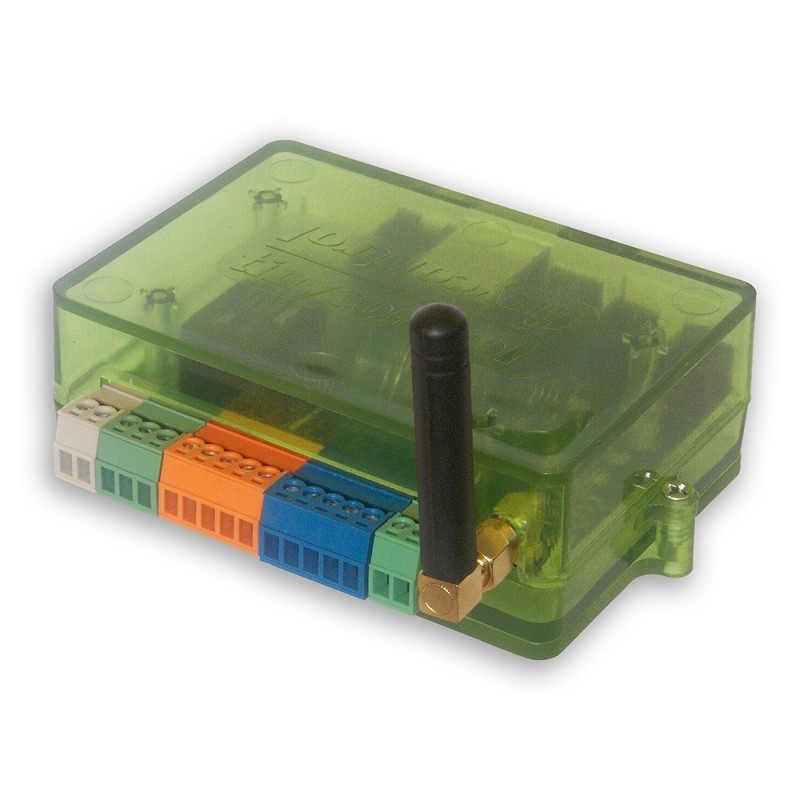

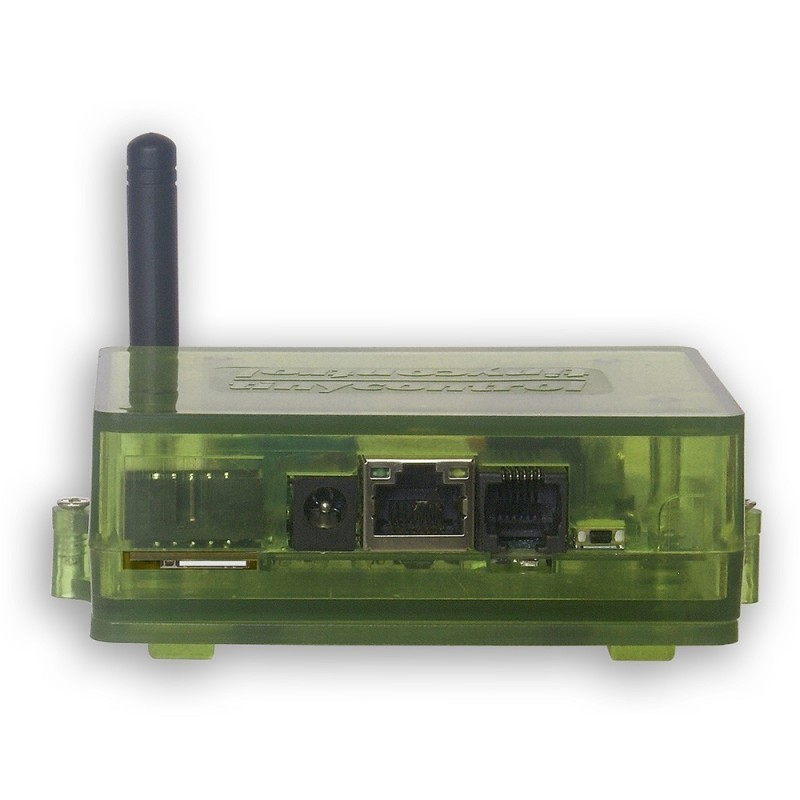

Tinycontrol LANKON-008, Lan Controller v4.0 with LTE modem
[3095][LANKON-302]

The product is
no longer available

Prices exclude VAT

The new Lan Controller v4.0 with LTE modem integrates our previous IoT experiences into one universal device. It represents a seamless continuation of the previous LAN Controller series, now in a more convenient form.

Dual communication interface: You can use the LTE connectivity, a wired Ethernet connection or Wi-Fi.

LAN Controller v4 can be fully configured from the website, available on the built-in web server.

It is also possible to send any commands to the device via the HTTP protocol (omitting the website) or MQTT (after configuring the connection)

Product Links:
Product Page	User Guide v4.0	Terminal Diagram	Support

Specifications:
Part #	LANKON-302
Supply voltage	8-58V
Power consumption	0.5W (witdout relays enabled)
PoE power supply	802.3af PoE / Mode A Passive PoE / Mode B (jumper configurable)
Interfaces	Etdernet 10/100 Mbit/s Wi-Fi 802.11n
Measurement interfaces	Modbus RTU 4 digital inputs (L = 0 - 0.3 V, H = 0.8 - 30 V for INPD1, L = 0 - 0.1 V, H = 1.3 - 30 V for INPD2-INPD4) 3 analog inputs (0.1 - 3.3 V lub 0 - 58 V for INPA1-INPA2, 0.1 - 5 V lub 0 - 58 V for INPA3) 1-Wire (shared RJ12 connector) I2C (shared RJ12 connector)
Outputs	1 relay output (NO, C, NC) 255VAC 10A 4 outputs in OC standard (open collector) 1 transistor output (V = VCC) 3 PWM outputs (3.3V @ 1-1000000 Hz)
Operating temperature range	-20°C to +85°C
Dimensions	106 x 79 x 38mm
Weight	130g
DIN rail mounting	Yes (35mm)
