NF-IPC715 - 5.4inch CCTV IPC Tester 8MP AHD CVI TVI Camera Tester

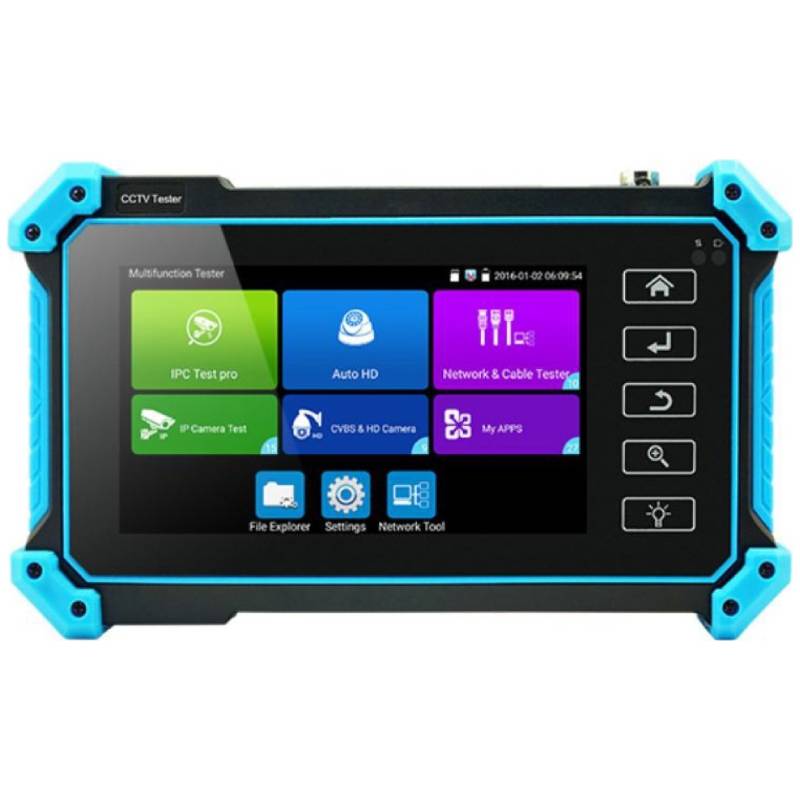

The Noyafa NF-IPC715 is a compact, professional IP camera tester equipped with a 5.4-inch HD touchscreen.
It supports a wide range of camera types including IP, analog (CVBS), and HD coaxial (AHD, TVI, CVI, SDI). Key features include:
-
PoE power output for IP cameras
-
Video display, recording, and playback
-
PTZ control, IP address scan, and ONVIF support
-
Network cable and PoE voltage testing
-
Built-in Wi-Fi and HDMI input
Designed for efficient installation, testing, and maintenance of CCTV surveillance systems.
|
Specifications: |
|
Model |
NF-IPC715 |
|
Display Screen |
5.4 inch IPS touch screen, 1920x1080 resolution |
|
CVBS |
1 channel BNC input, NTSC/PAL (Auto adapt)
PTZ control, RS485 control, Baud 600-115200bps
compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc |
|
IP Camera Test |
4K/H.265/H.264 |
|
IP Test Tools |
IP Discovery, Quick ONVIF, IPC test, RTSP play, Client APK |
|
Rapid Video |
Auto view video, create testing report |
|
HIKVISION Support |
Batch activate cameras, modify IP/password, H.264/H.265 toggle, open WDR, factory reset |
|
DAHUA Support |
Batch activate cameras, modify IP, user/pass, self-defined channel names |
|
HD Coaxial Test |
8MP TVI/CVI (3840x2160P @12.5/15FPS), 8MP AHD (3840x2160P @15FPS),
auto HD app for detection, recording, playback, coax PTZ, OSD menu |
|
HDMI Input |
1 channel, supports up to 4K 30FPS |
|
Supported HDMI Resolutions |
4K, 2K, 1920×1080P/i, 720×480P, 1280×720, 1024×768P, 1280×1024P, 1280×900P, 1440×900P |
|
VGA Input |
1 channel, supports 2048x1152 @60FPS |
|
Supported VGA Resolutions |
2048x1152, 1920x1200/1080, 1792x1344, 1680x1050, 1600x1200/900, 1440x900,
1360x768, 1280x1024/960/800/768/720, 1152x870, 1024x768, 800x600, 600x480 (all at 60FPS) |
|
Zoom Image |
4x zoom, snapshot, record, save, playback |
|
12V Power Output |
DC 12V/3A, temporary power for camera |
|
PoE Power Output |
48V, max 25.5W |
|
UTP Cable Test |
Detects near/mid/far fault points, displays status on screen |
|
RJ45 Cable Test |
Tests pair status, length, attenuation, impedance, skew; generates test report (range: 180M) |
|
Tester Play |
Screen projection to tester, phone, and PC simultaneously (Android only) |
|
Network Test |
Trace route, link monitor, DHCP server, port flash, ping test |
|
Wi-Fi |
Built-in, 150M, displays wireless camera image |
|
Audio Test |
1 channel audio input, tests audio signal |
|
Power Management |
Displays 12V input/output voltage and power in real time |
|
Data Monitor |
Captures/analyzes control data, sends hexadecimal |
|
External Power Supply |
DC 12V 1A |
|
Battery |
Built-in lithium-ion |
|
Working Time |
5 hours (charging: 3–4 hours) |
|
Auto Off |
1–30 minutes |
|
Working Temperature |
-10℃ to +50℃ |
|

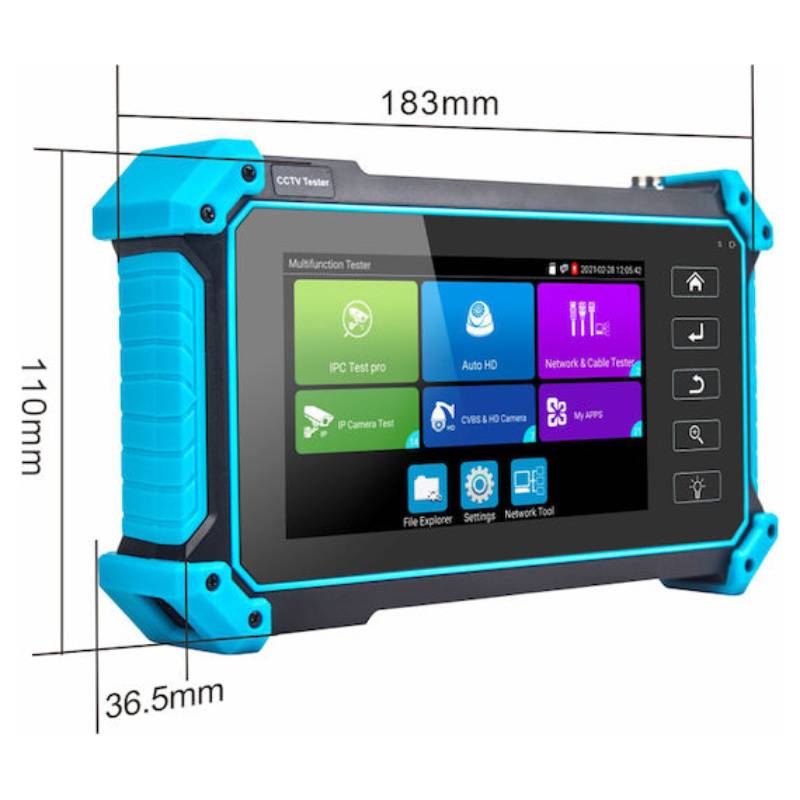

Dimensions & Weight |
183mm × 110mm × 36.5mm / 0.8kg |

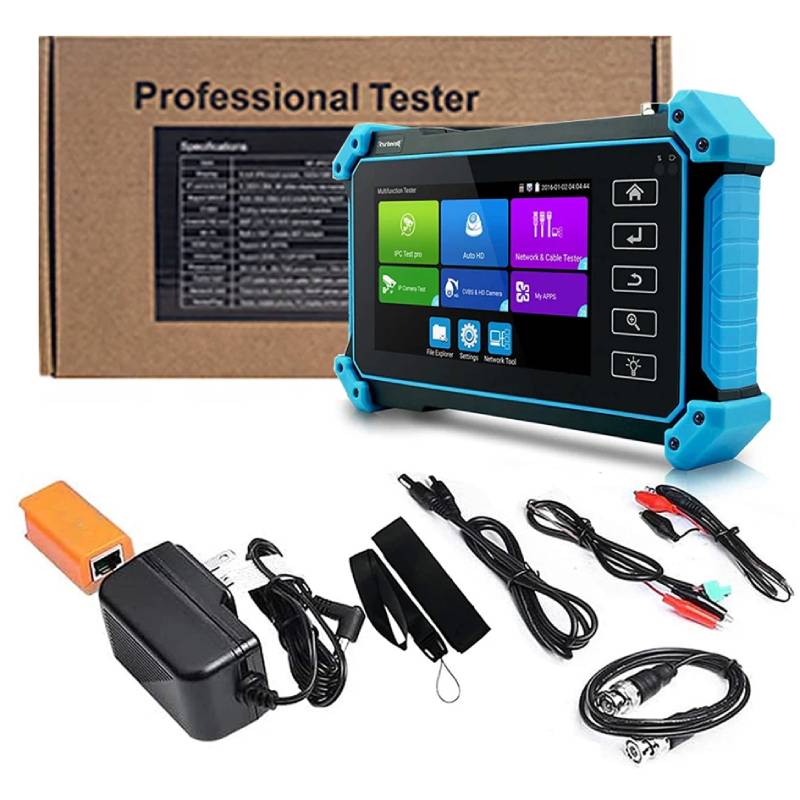

| Package Contents: |
|---|
| 1 x CCTV Tester
|
| 1 x Network cable tester
|
| 1 x Adaptor DC12V 1A
|
| 1 x lithium ion battery
|
| 1 x Tool bag / DC Power cable/BNC cable/ RS485 cable/ Audio cable/ Safety cord
|
| 1 x Wrist belt
|
| 1 x Manual |
|
