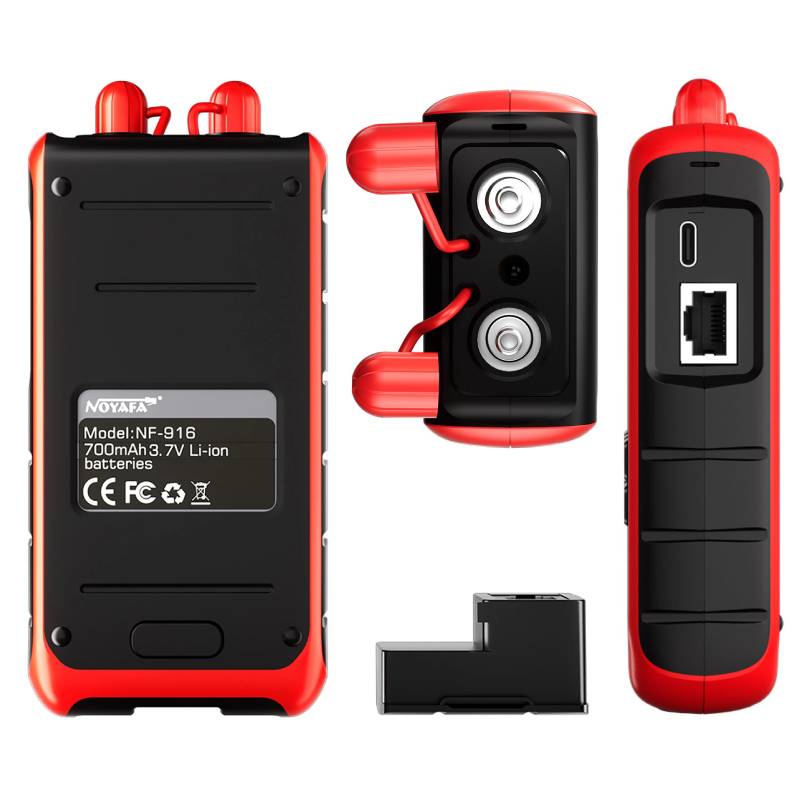

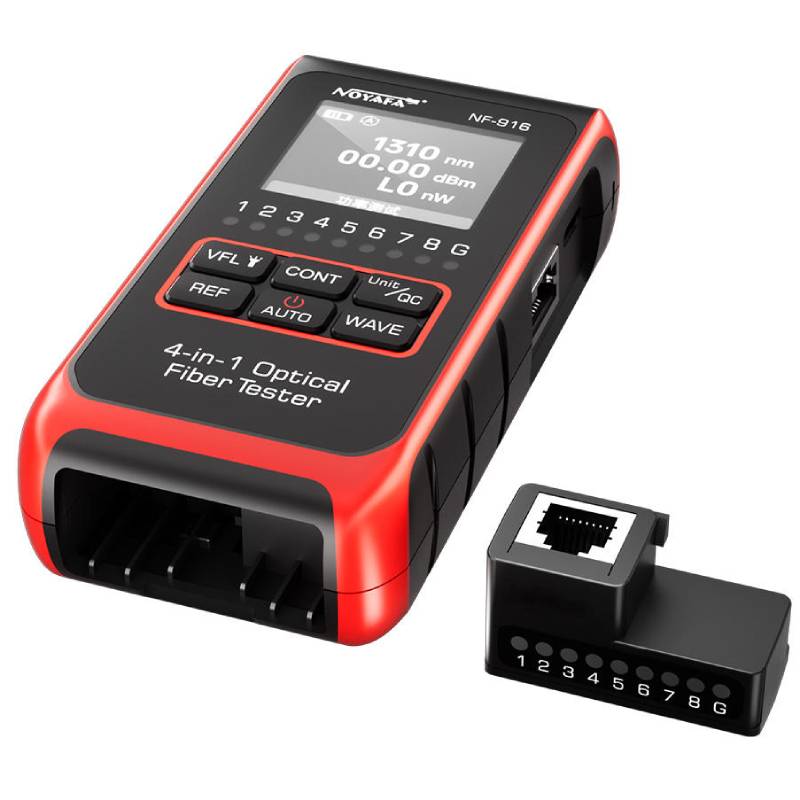

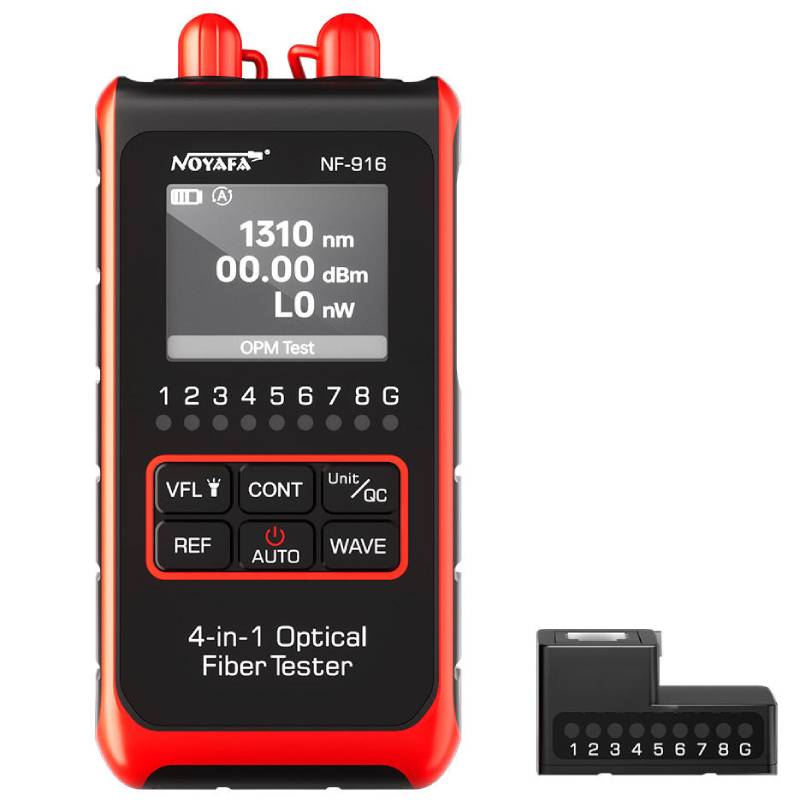

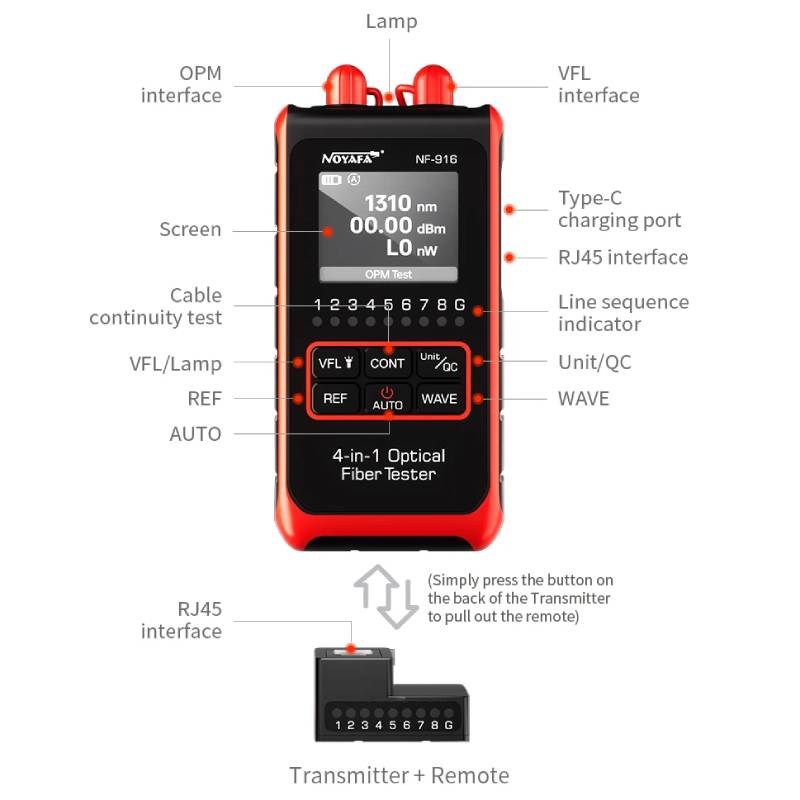

NF-916 - 4 in 1 Fiber Optical Power Meter Visual Fault Locator
The NF-916 is a versatile, compact optical power meter designed for fiber optic network installation, maintenance, and troubleshooting.
Equipped with a color display, it supports multiple wavelengths including 850nm, 980nm, 1310nm, 1490nm, 1550nm, and 1625nm.
The device can measure power in units of dBm, mW, μW, and nW, offering flexibility for various testing needs.
Featuring a built-in visual fault locator (VFL) with multiple modes—steady on, slow flashing, and fast flashing it allows for quick identification of fiber breaks and faults.
The NF-916 also includes continuity testing, automatic shut-off, a built-in lamp, and a low battery warning for efficient field use.
Powered by a 3.7V lithium battery, this durable tester is housed in a portable design with dimensions of 128×61×32mm, making it ideal for technicians on the go.
|
Specifications: |
|
Model |
NF-916 |
|
Display |
Color |
|
Powermeter |
850/980/1310/1490/1550/1625nm |
|
Unit |
dBm or mW/μW/nW |
|
REF Frequency |
270Hz / 1KHz / 2KHz |
|
Continuity test |
Yes |
|
VFL |
Steady on / Slow flashing / Fast flashing |
|
AUTO off |
On/Off |
|
Lamp |
Yes |
|
Low battery warning |
Yes |
|
Power supply |
3.7V lithium battery |
|
Size |
128×61×32 mm |

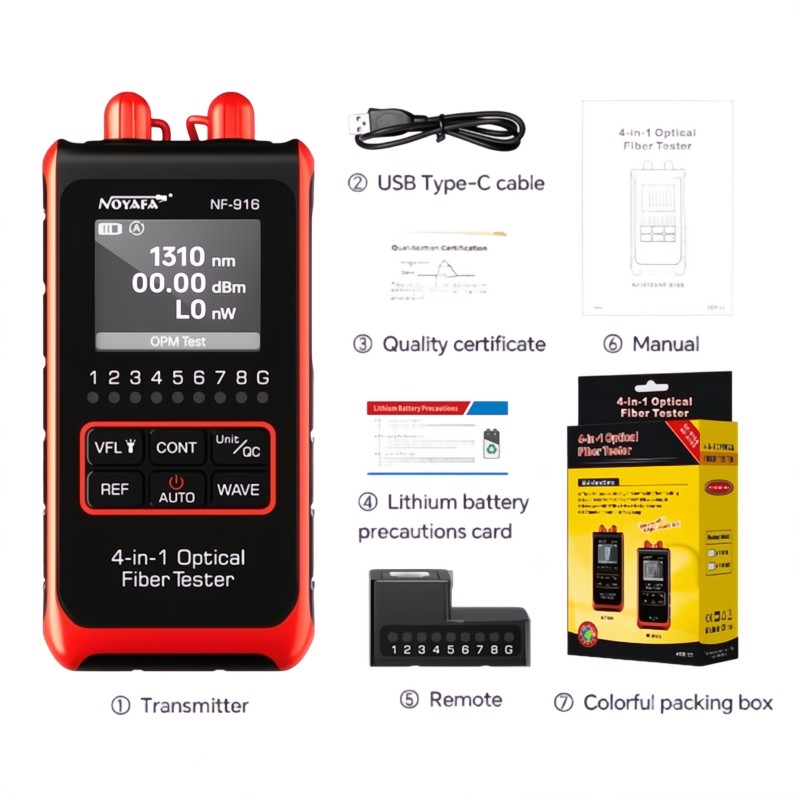

| Package Contents: |
|---|
| 1 x NF-916 Main device
|
| 1 x NF-916 Receiver Device
|
| 1 x Type-C data cable
|
| 1 x Manual (English) |
|
