Cudy FS108D - 8-Port 10/100Mbps Desktop Switch
Plug and play, hassle-free, no configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port detects the link speed of a network device (10/100Mbps) and intelligently adjusts for compatibility and optimal performance.
Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100Mbps Ethernet devices. Featuring non-blocking switching architecture, the product forwards and filters packets at full wire-speed for maximum throughput.
IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.
|
Specifications: |
|
Model |
FS108D |
|
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|
Protocol |
CSMA/CD |
|
Data Rate |
Ethernet: 10Mbps (Half Duplex)/20Mbps (Full Duplex)
Fast Ethernet: 100Mbps (Half Duplex)/200Mbps (Full Duplex) |
|
Transmission Method |
Store-and-Forward |
|
Switching Features |
MAC address auto-learning and auto-aging
Half and Full Duplex 1.6Gbps backplane bandwidth |
|
Interfaces |
8 x 10/100Base-TX Port |
|
LED Indicators |
LAN~LAN8, Power |
|
MAC Address Table |
2K entries per device |
|
Power Supply |
DC 5V 0.5A |
|
Dimensions W*D*H |
130.7mm x 52.3mm x 20mm |
|
Weight |
191g |
|
Operating Temperatur |
0°C~40°C |
|
Storage Temperature |
-40°C~70°C |
|
Relative Humidity |
10%~90%, non-condensing |
|
Storage Humidity |
5%~95%, non-condensing |

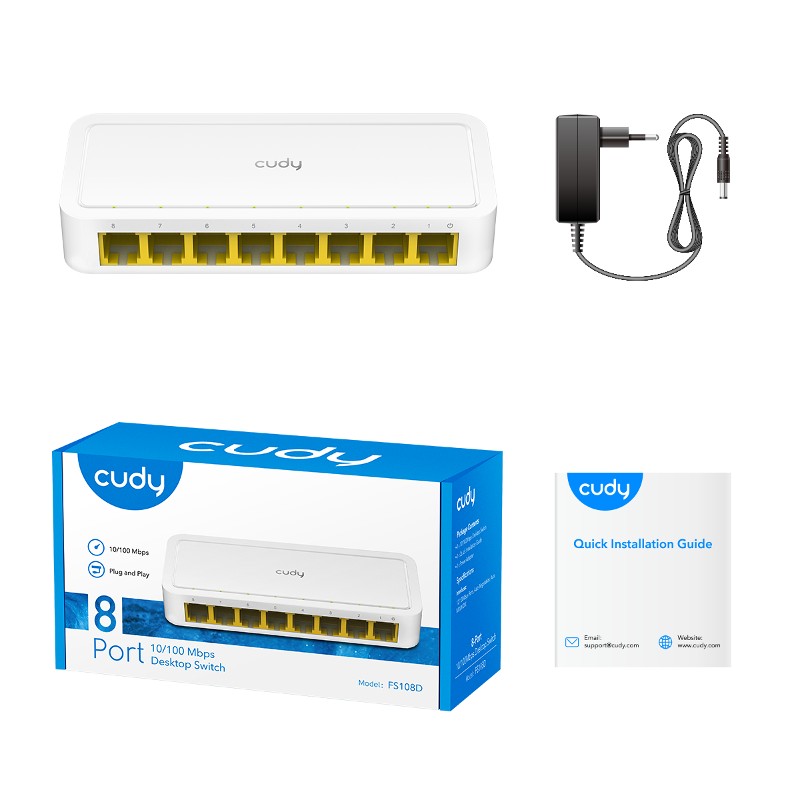

| Package Contents: |
|---|
| 1 x FS108D
|
| 1 x 5v 0.5A Power Supply
|
| 1 x Installation Guide |
|
