WR3000S - AX3000 Gigabit Mesh Wi-Fi 6 Router White
A WiFi 6 router with five Gigabit ports, suitable for home internet up to 1000 Mbps, connecting many devices, and reducing latency.
-
1.3 GHz Dual-Core CPU
-
4-Stream Dual-Band Wi-Fi 6
-
2402 Mbps + 574 Mbps Wi-Fi 1
-
5× Gigabit Ethernet Ports
-
200 Connected Devices 2
-
Covers 130 m² (1,400 ft²) 3
-
Cudy Mesh, VPN Server and Client
-
Cudy App, Cloud Control
|
Specifications: |
|
Part# |
WR3000S |
|
Chipset |
MT7981 |
|
CPU Details |
1.3 GHz Dual-Core, ARM Cortex-A53 |
|
Flash/ROM |
128 MB (1 Gbit) NAND |
|
DDR/RAM |
256 MB (2 Gbit) DDR3 |
|
5 GHz Wi-Fi Speed |
2402 Mbps |
|
2.4 GHz Wi-Fi Speed |
574 Mbps |
|
5 GHz Wi-Fi Streams |
2T2R (2×2 MIMO) |
|
2.4 GHz Wi-Fi Streams |
2T2R (2×2 MIMO) |
|
Wi-Fi Antennas |
4× Fixed |
|
5 GHz Antenna Gain Max |
5.3dBi |
|
2.4 GHz Antenna Gain Max |
5.3dBi |
|
FEM or PA/LNA |
5 GHz: 3× Internal
2.4 GHz: 2× Internal |
|
Beamforming |
True |
|
Range Performance |
Max: 220 m |
|
Wall Performance |
Two wooden walls with thickness < 10 cm
One concrete wall with thickness < 20 cm
Two concrete walls with thickness < 10 cm |
|

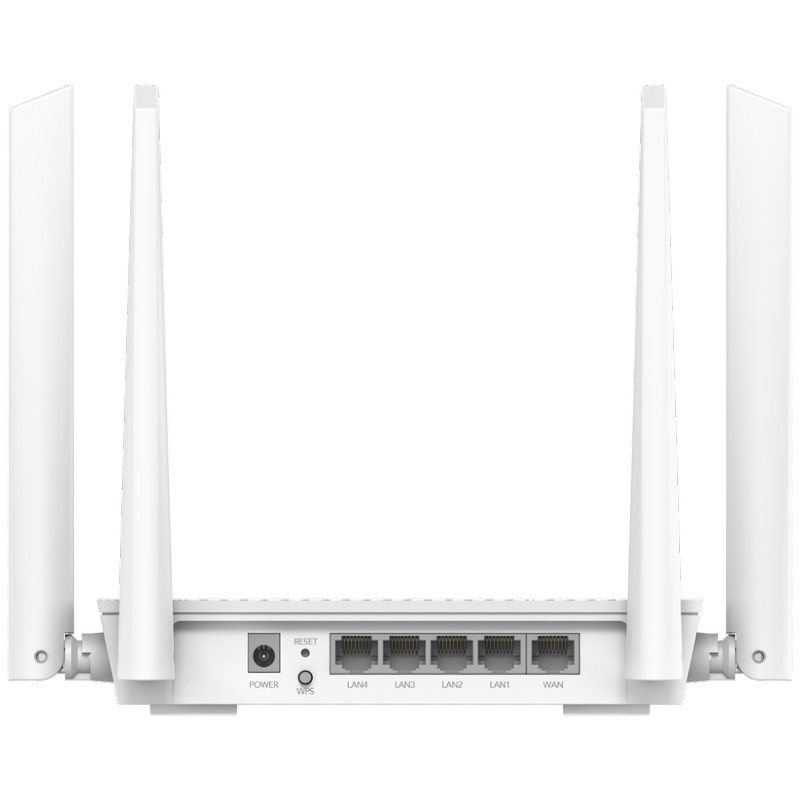

Gigabit RJ45 Ports |
5 |
|
Ethernet Notes |
1× WAN port, the rest are LAN ports |
|
LED |
System
Internet
WPS
2.4 GHz Wi-Fi
5 GHz Wi-Fi
WAN
LAN |
|
Physical Buttons |
WPS Button
Reset Button |
|
Power Input |
DC Jack |
|
Power Methods |
DC |
|
DC |
12V 1A |
|
Power Adapter |
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC |
|
Max Power Consumption (W) |
7.5W |
|
Environment |
Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃
Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing |
|
Certifications |
FCC, CE |
